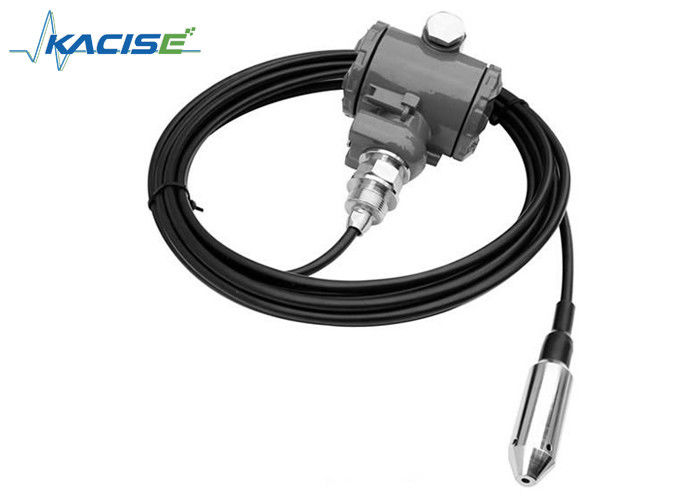

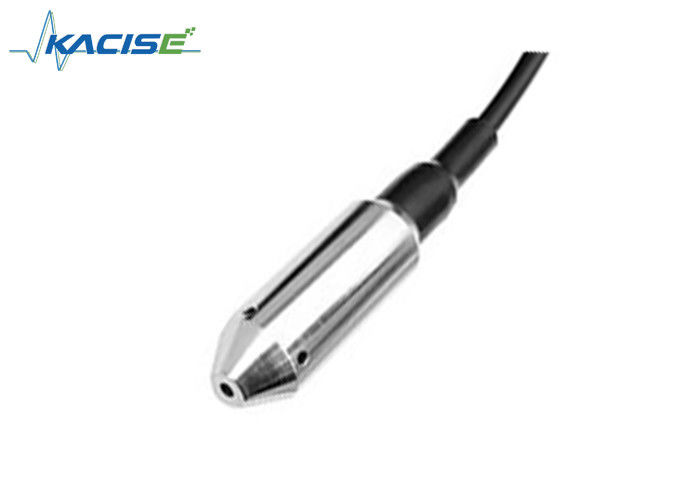

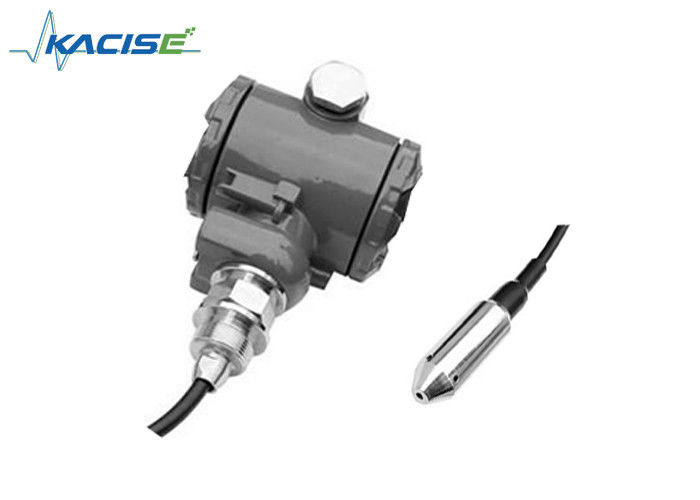

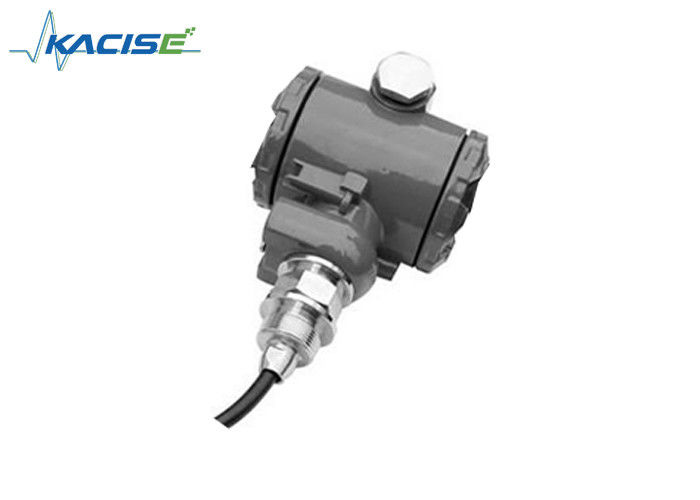

4-20mA output 0.5 accuracy Separate Submersible Water Level Sensor

4 20mA Separate Submersible level Pressure transmitter / Sensor

1. Product Description

GXPS400M series level transmitter is a highly reliable, high stability, high accuracy, small size, split level transmitter. Widely used in the detection of a small diameter pipe and the liquid level in the reservoir fluid height. Such as water, oil, mildly corrosive liquids.

The product uses the 1Cr18Ni9Ti stainless steel structure with import oil-filled pressure core, dedicated zoom and V / I transmitter conversion circuit, which can facilitate their zero and full scale calibration and external zero and span programmable regulation.

Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.

The intrinsically safe certificate; explosion proof; CE certificate.

Non polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.

2. Parameter

3. Feature

• 0.1, 0.25, 0.5%F.S
• Split structure
• Ø24 diameter
• The diffused silicon oil-filed core
• Multiple pressure range and signal output
• Non-polarity two wire current output
• Intrinsically safe, explosion proof ,CE certificate

4. Application Field

• Hydrologic monitoring
• Constant pressure water supply
• Frequency conversion water supply
• Tail dam water level
• Liquid storage tank liquid level height
• Water saving irrigation
• Circulation fluid consumption monitoring
• Small caliber tube level
