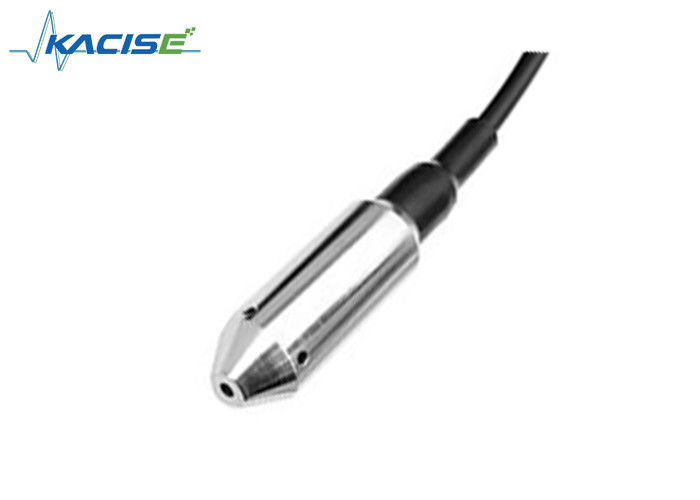

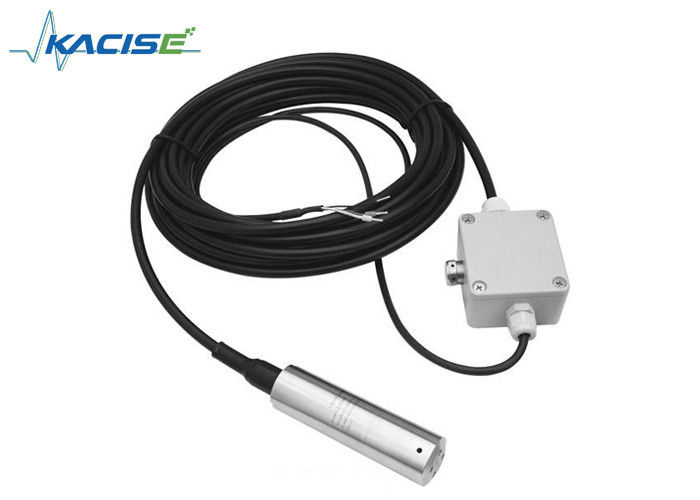

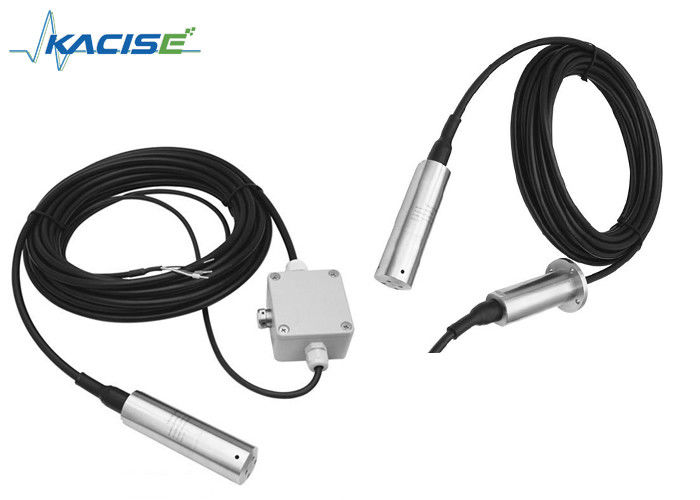

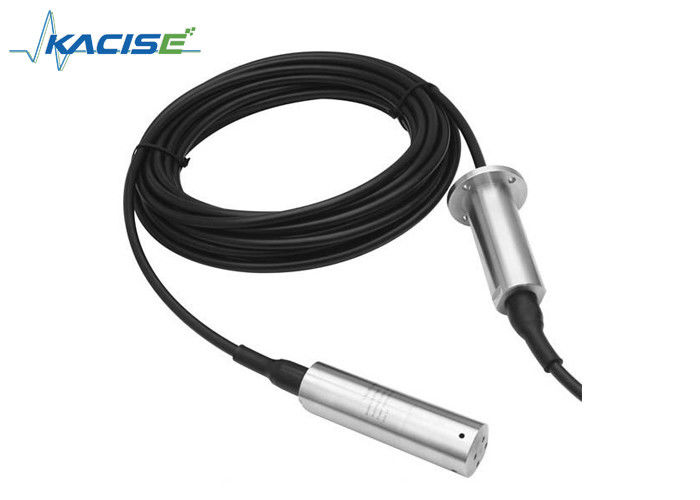

4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor

4 20mA Submersible Geothermal water Pressure Level Transmitter

1. Product Description

Based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid, the plunge-type liquid level meter is made of advanced isolated diffused silicon sensitive element or ceramic capacitive pressure sensitive sensor. The static pressure is converted into electrical signal after temperature compensation and linear correction. Converted into a standard electrical signal (generally 4 ~ 20mA/1 ~ 5VDC) a measurement of the level of the pressure sensor, can also be called "static pressure level meter, level transmitter, level sensor, water level sensor".

GXPS420 liquid level sensor is an input type liquid level sensor. The liquid static pressure measured by the input type liquid level gauge is proportional to the height of the liquid. The principle is made of advanced pressure sensitive elements, and the static pressure is converted into electrical signals, and then converted into standard electrical signals through temperature compensation and linear correction. Its characteristics are wear resistance, oil resistance, acid and alkali resistance, high pressure resistance, it has a high strength cable, widely used in the ocean, lakes, rivers, groundwater, sewage treatment, water plants and other hydrological monitoring of various fields of liquid level measurement.

2. Parameter

3. Feature

• Accuracy: ±0.25%,±0.5%F.S
• Diffused-silicon oil-filled core
• Submersible and screw thread installation
• The Max. of temperature is 120℃
• Non polarized and 2 wire system output
• Intrinsically safe mode, explosion-proof, CE

• Against severe electromagnetic interference

4. Application Field

• Geothermal measurement
• Geothermal water collection
• Thermal power plant cooling water monitoring
• Thermal boilers
• Hydrologic monitoring facilities
• Heating boiler
• Generating set
• Hydroelectric power
