Name: Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: K-JSJ-001
Price: 478.00 USD
Availability: InStock

خونه > محصولات > سنسور شتاب سنج >

Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range

linear acceleration sensor,triaxial acceleration sensor

triaxial acceleration sensor

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

Model Number:

K-JSJ-001

با ما تماس بگیرید

درخواست نقل قول

Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range

جزئیات محصول

Type:

K-JSJ-001

Input voltage:

5±0.25 VDC

Input current:

≤2 mA

Output Mode:

0.5~4.5V

Range:

±1 g

Bandwidth:

≥50 Hz

Sensitivity:

1000±30 mV / g

Axial direction:

Temperature:

-40℃~+70℃

Storage Temperature:

-40℃~+125℃

برجسته کردن:

linear acceleration sensor,triaxial acceleration sensor

triaxial acceleration sensor

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1ps

قیمت

قابل مذاکره

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work day

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

محصولات مرتبط

حسگر شتاب سنج Honeywell QA2000-030، کاربردهای هوافضا

بهترین قیمت رو بدست بیار

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

بهترین قیمت رو بدست بیار

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

بهترین قیمت رو بدست بیار

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

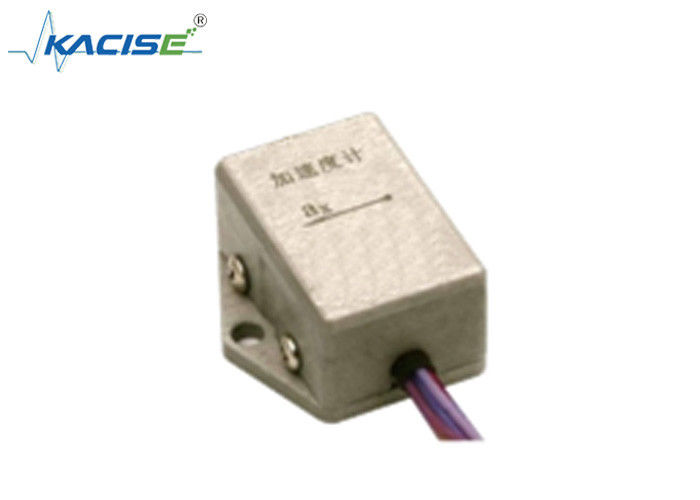

0.5~4.5V Wide measuring range linearity Uniaxial Accelerometer Sensor Module

1. Product Description

An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.

Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.

Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range 0

2.Parameter

Type	K-JSJ-001
Electric character
Input voltage	5±0.25 VDC
Input current	≤2 mA
Output Mode	0.5~4.5V
Performance index
Axial direction	X
Range	±1 g
Bandwidth	≥50 Hz
Sensitivity	1000±30 mV / g
Resolution (°/s)	≤ 0.001 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	2.5±0.1 V
Start-up time (ms)	≤1 s
Environmental characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	4000g
Physical Characteristics
Weight (g)	40g

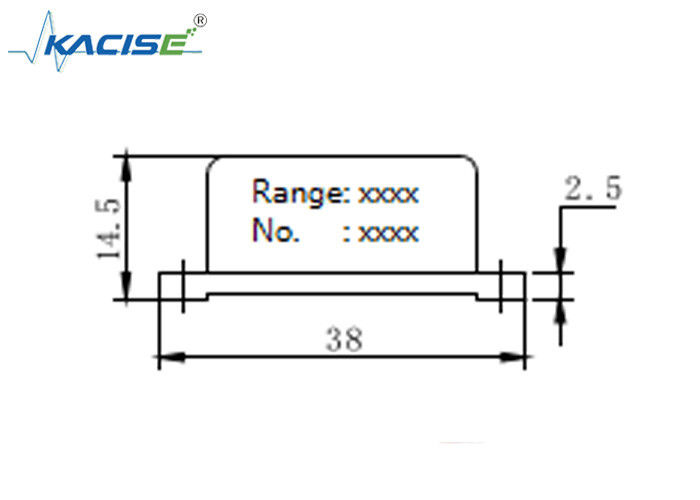

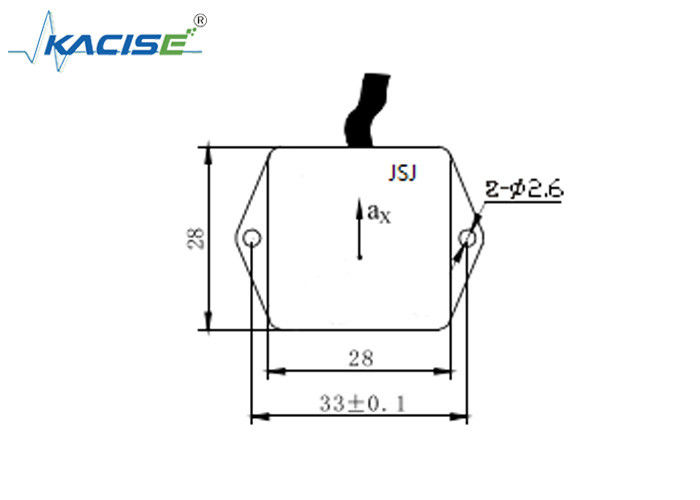

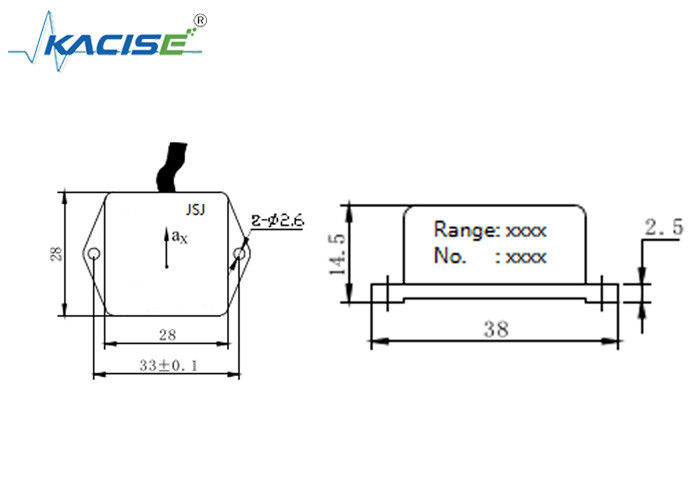

Dimensions	19.5×18.8×8.4 mm

3.Feature

Analog voltage output
Wide measuring range
impact resistance,Good vibration performance
Small size, light weight
Good linearity

4.Application Field

Aircraft Stability control
seismic detection
