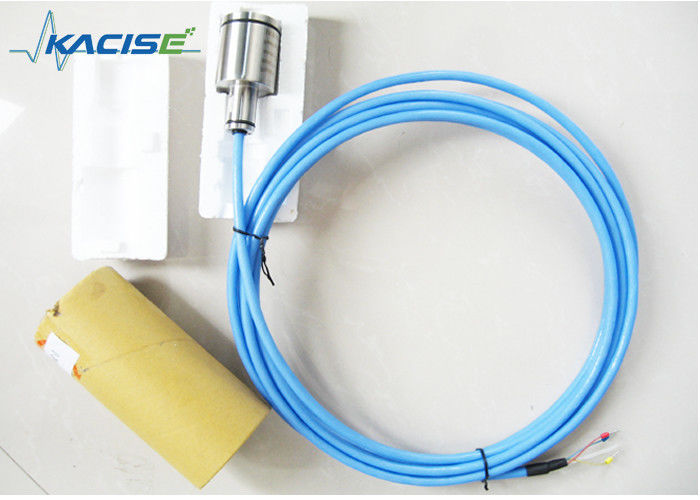

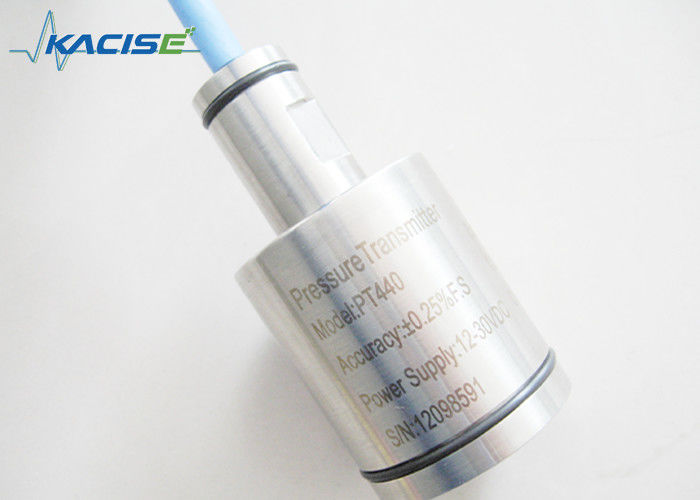

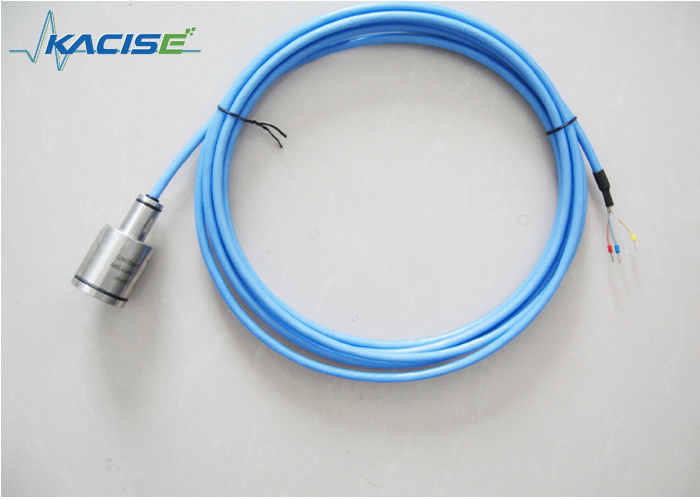

GXPS440  Ceramic Cores Level Transducer Highly Waterproof And Wear Resistant

Brief

• Multiple pressure range optional, small measuring range available
• 0/4-20mA, 0/1-5V,0-10V output optional
• Submersible and thread installation method optional
• Non polarity 2 line current output
• AC,DC voltage output optional
• Two-wire system lead wire non-polarity

Application

• Strongly corrosive liquid level measuring
• Precious liquids level measurement
• Corrosion medium
• Chemistry experiment
• A field of high temperature
• Inflammable medium class
• Explosion proof site

Instruction

GXPS440/450 series pressure transmitter is a high reliability, high stability, high-precision ceramic cores for the sensitive components of the level transmitter.

Widely used in small-scale level measurement, such as water, oil, natural gas, liquefied petroleum gas and other corrosive liquids and gases.

GXPS440 is the 316L SS shell plus the ceramic capacitor core body, GXPS450 is uses a titanium alloy + PTFE shell, ceramic cores used internationally renowned brands, Programmable transmitter conversion circuit, and can facilitate its zero and full scale calibration and slight shift.

According to different use of site we can configure the wear resistance, oil resistance, acid and alkali resistant, high strength special air conductivity cable.

Prevent Explode intrinsically safe, isolation explosion-proof, explosion-proof, CE certification.

Two wire system of circulation output lead non-polar; three-wire voltage output for AC and DC

Electronic interface and signals definition

Parameter
