Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger

Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger

stainless steel pressure gauge,submersible pressure sensor

submersible pressure sensor

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

گواهی:

certificate of explosion-proof, CE

Model Number:

KPG201

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
Precision grade:
0.5%FS,0.4%FS ,0.2%FS,0.1%FS,0.05%FS
Pressure range:
-100kPa~0~600kPa~250MPa
Ambient temperature:
(-20~50)℃
Atmospheric pressure:
(86~106)kPa
Storage temperature:
(-30~80)℃
Power supply mode:
4.2V rechargeable lithium battery
برجسته کردن:

stainless steel pressure gauge,submersible pressure sensor

,

submersible pressure sensor

شرایط پرداخت و حمل و نقل
Minimum Order Quantity
1pcs
قیمت
قابل مذاکره
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability
1000 Pieces per Week
محصولات مرتبط
با ما تماس بگیرید
86--17719566736
حالا تماس بگیرید
توضیحات محصول

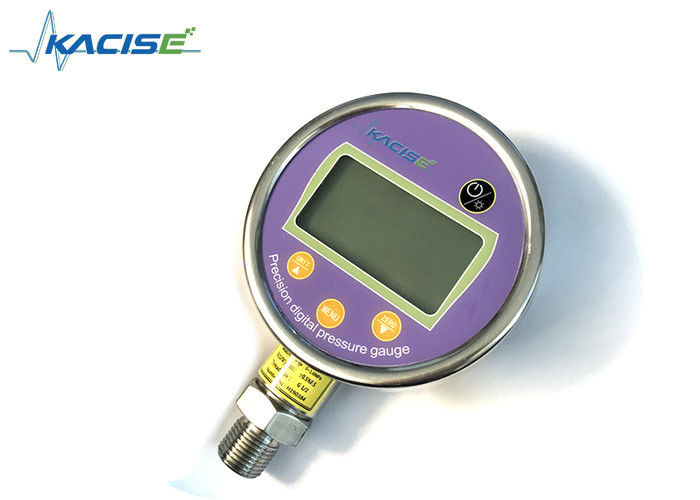

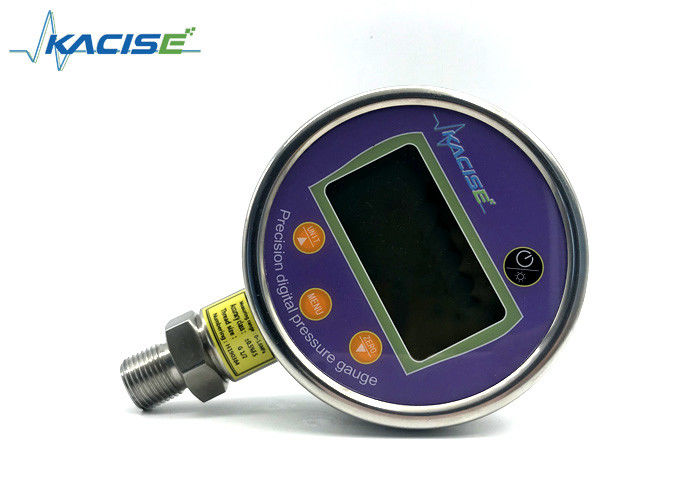

USB connected Battery Operated Digital Pressure Gauge with Data Logger





Features



*Touch button, no mechanical contact, a good solution to the problem of life and sealing.

*Wide temperature compensation, ultra-low power consumption.

* Unit changing, peak valley and other functions fully preserved.

* Multi additional setting and functions available, user can set by environment and habits.

* IP grade ≧ IP66, higher than the industry level.



Description



KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.





Specification



Item Spec.
Pressure range -100kpa~250pa~5kpa~250Mpa
Accuracy 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02%
Display 5-digit dynamic display + percentage indicator
Pressure unit Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2
Overload pressure 150% FS
Destruction pressure 200% FS
Power supply 4.2V rechargeable lithium battery
Temperature -20 ℃ ~ 60 ℃
Humidity ≤ 85% RH
Calibration environment 20 ℃ ± 2 ℃
Explosion-proof level ExiaIICT4 optional
IP Grade IP66
Data record limit 50000
Process connection M20 × 1.5 (male), special thread customizable
Dimensions height 170mm, width 110mm, thickness 50mm





Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger 0
