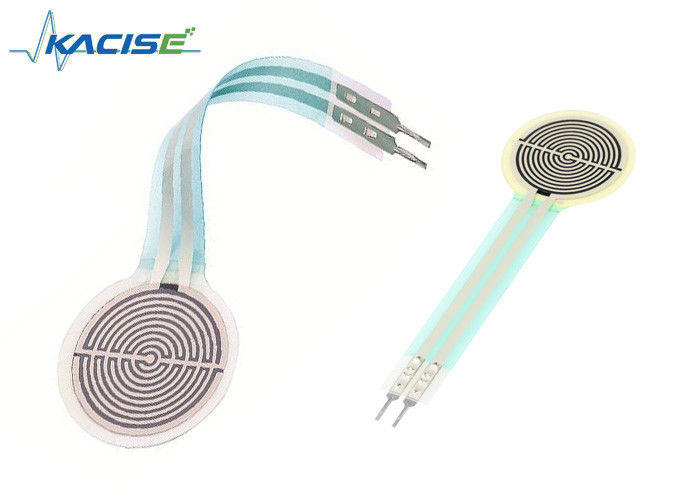

KXFSR402 Fluid Level Meter Thin Film Pressure Sensitive Resistor Force Sensor

KXFSR402 Thin Film Pressure Sensitive Resistor Force Sensor

Description

Force Sensitive Resistor are resistive sensor exhibiting vary resistance that responds to force applied to the sensing area. As force on the sensor is increased,resistance is decreased.

For the single-zone sensors, as the sensor is a Two-terminal device that can essentially be treated as a variable resistor whose value is controlled by applied force, and also a switch whose threshold is controlled by applied force and setting up.

The sensors are made up of robust polyester film, high-conductive material and Nano-sized force sensing material.

The top layer of the sensor consists of the area of force sensitive layer on a flexible film. And bottom layer is comprised of conductive circuit traces on a flexible film

And the above two layers are s are stick together by spacer adhesive and active area is without adhesive. When the active area is applied force, force sensitive layer on the top layer shunts the circuit traces on the bottom, varying resistance output terminals.

Static / Dynamic Pressure Sensing

Quick response

Durable long life

Customized design

Technical Data And Physical Properties
