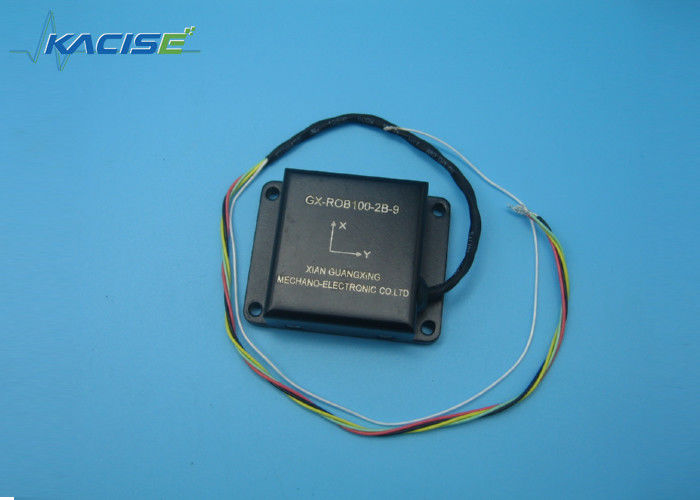

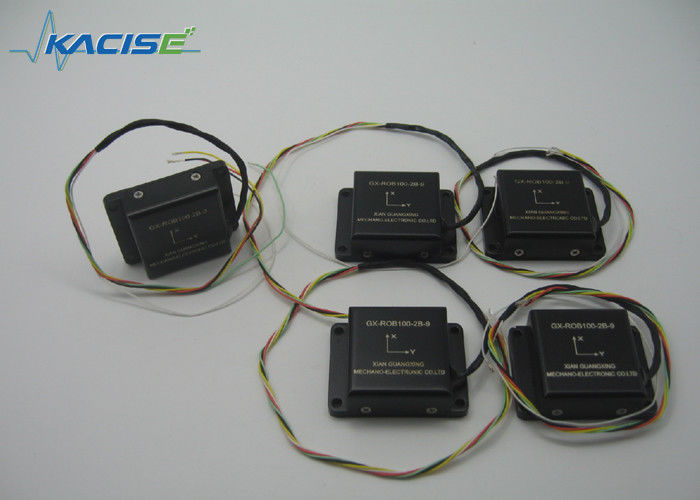

Name: Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GX-ROB100
Price: 431.00 USD
Availability: InStock

خونه > محصولات > حسگر ژایروسکوپ الکترونیک >

Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control

mems gyroscope sensor,gyroscope sensor module

gyroscope sensor module

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

گواهی:

certificate of explosion-proof, CE

Model Number:

GX-ROB100

با ما تماس بگیرید

درخواست نقل قول

Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control

جزئیات محصول

Input voltage (Vdc):

7.5 ~ 32Vdc

Measuring range (°):

± 15 ~ ± 90

Bias:

≤ 0.2

Bias Repeatability:

≤ 0.05

Start time (s):

<0.5s

Bandwidth:

8-28Hz

Resolution(°):

≤ 0.03

Performace:

DIP

برجسته کردن:

mems gyroscope sensor,gyroscope sensor module

gyroscope sensor module

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

محصولات مرتبط

ویدیو

Single Axis Fiber Optic Electronic Gyroscope Sensor Shocking Resistance

بهترین قیمت رو بدست بیار

ویدیو

Well Logging Dynamically Tuned Gyroscope For High Temperature Environment

بهترین قیمت رو بدست بیار

Small Size Mems Gyroscope Sensor Angel Measuring Instruments Dip Performance

بهترین قیمت رو بدست بیار

200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Angel Measuring Instruments Level Measurement Platform and Platform level Control GX-ROB100 Biaxial inclination Sensor

Feature

Built-in angle conversion and temperature compensation, small error.
Data output via RS422 interface.
Metal shell, anti-interference

Product description

Using micro-electromechanical systems (Micro Electro-Mechanical System, MEMS) technology, which combines angular rate and linear acceleration measurement as a whole, for the roll angle, pitch angle, three-dimensional and three-dimensional acceleration angular rate measurements. Attitude angle and angular rate deviation through Kalman filter algorithm to estimate and correct.

Application field

Angle measuring instruments,
Level measurement platform,
Platform level control,
Measuring instruments and heavy mechanical stability,
Acceleration and motion measurement,
Automotive control, inertial navigation,
Seismic monitoring and other measurement systems

Datasheet

Technical parameters	performance indicators
Input voltage (Vdc)	7.5 ~ 32Vdc
Performance	Dip
Measuring range (°)	± 15 ~ ± 90
Bias	≤ 0.2
Bias stability	≤ 0.05
Bias Repeatability	≤ 0.05
Start time (s)	<0.5s
Bandwidth	8-28Hz
Resolution(°)	≤ 0.03
Nonlinearity (% FS)	<0.05% of FS
Data refresh rate	50ms
Inter face	RS422 interface
Working Temperature	(℃) -40 ℃ ~ +85 ℃
Storage Temperature	(℃) -55 ℃ ~ +100 ℃
Resistance Acceleration(g)	20000
Weight (g)	<150
Volume (mm3)	48 * 36 * 15

Dimension (unit: mm)

Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control 0
