Name: Superior performance and high precision KPG201 Digital Pressure Gauge With Data Logger
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KPG201
Price: 1,030.00 USD
Availability: InStock

خونه > محصولات > فشار سنج دیجیتال دقیق >

Superior performance and high precision KPG201 Digital Pressure Gauge With Data Logger

Place of Origin:

China

نام تجاری:

Kacise

Model Number:

KPG201

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

Pressure range:

-100kpa~250pa~5kpa~250Mpa

Accuracy:

0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02%

Display:

5-digit dynamic display + percentage indicator

Pressure unit:

Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2

Overload pressure:

150% FS

Destruction pressure:

200% FS

Power supply:

4.2V rechargeable lithium battery

Temperature:

-20 ℃ ~ 60 ℃

Humidity:

≤ 85% RH

Calibration environment:

20 ℃ ± 2 ℃

Explosion-proof level:

ExiaIICT4 optional

IP Grade:

IP66

Data record limit:

50000

Process connection:

M20 × 1.5 (male), special thread customizable

Dimensions:

height 170mm, width 110mm, thickness 50mm

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

قیمت

قابل مذاکره

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

محصولات مرتبط

ویدیو

KPG201C Touch Button No Mechanical Contact Digital Pressure Gauge With Data Logger

بهترین قیمت رو بدست بیار

ویدیو

Superior performance and high precision KPG201 Digital Pressure Gauge With Data Logger

بهترین قیمت رو بدست بیار

Digital water pressure gauge and data logger for pressure weight 0.6Kg with 4.2V rechargeable lithium battery

بهترین قیمت رو بدست بیار

Battery Powered Precision Digital Pressure Gauge Oxygen Pressure Gauge 0~400 bar

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

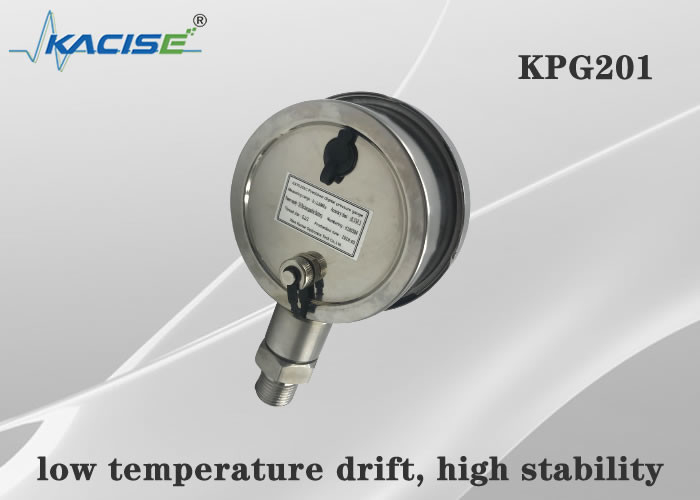

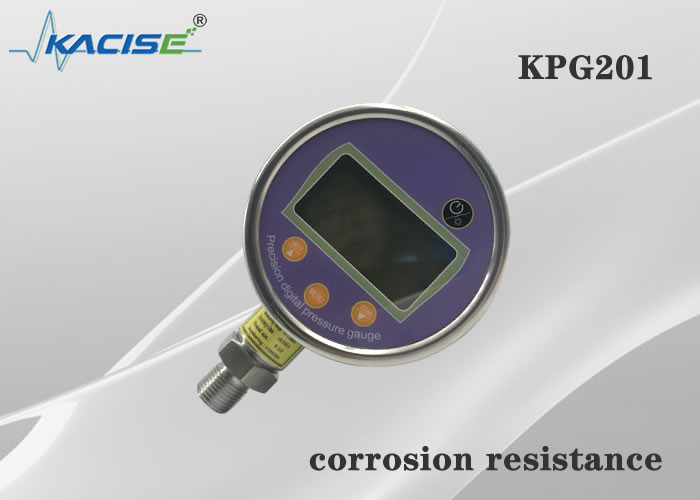

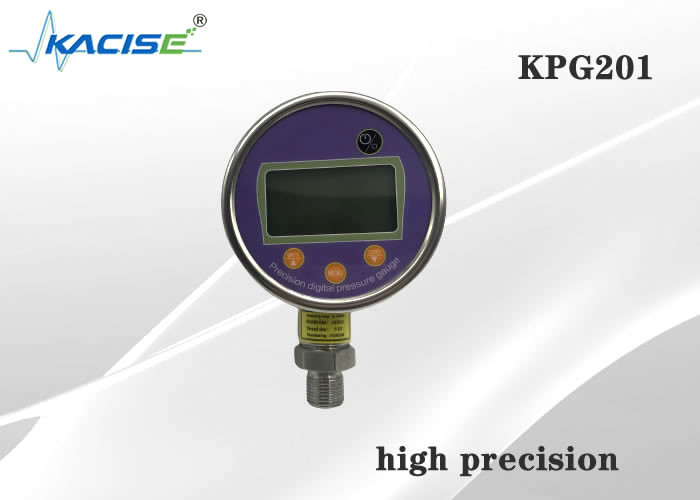

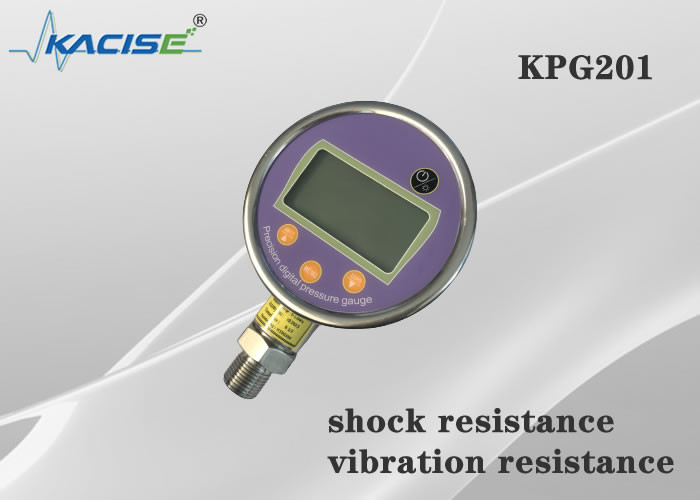

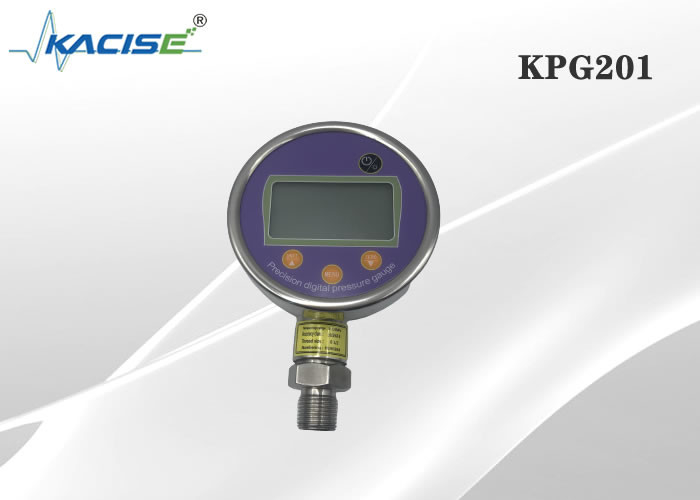

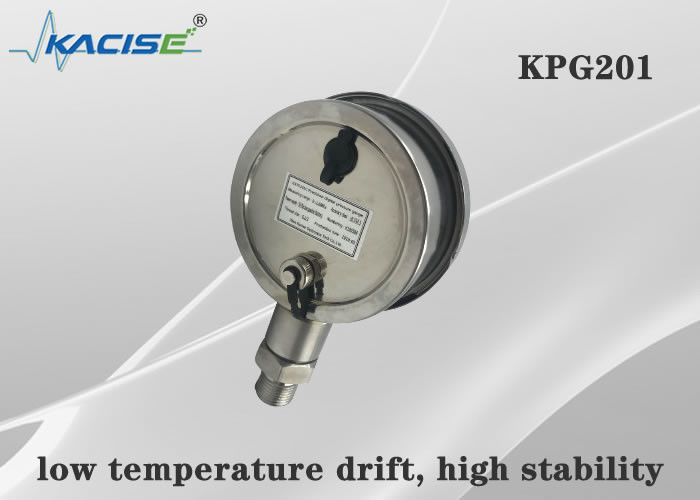

KPG201 Digital Pressure Gauge With Data Logger

1. Description
KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.

Superior performance and high precision KPG201 Digital Pressure Gauge With Data Logger 0

2. Features
• Touch button, no mechanical contact, a good solution to the problem of life and sealing.
• Wide temperature compensation, ultra-low power consumption.
• Unit changing, peak valley and other functions fully preserved.
• Multi additional setting and functions available, user can set by environment and habits.
• IP grade ≧ IP66, higher than the industry level.

3. Specification

Item	Spec.
Pressure range	-100kpa~250pa~5kpa~250Mpa
Accuracy	0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02%
Display	5-digit dynamic display + percentage indicator
Pressure unit	Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2
Overload pressure	150% FS
Destruction pressure	200% FS
Power supply	4.2V rechargeable lithium battery
Temperature	-20 ℃ ~ 60 ℃
Humidity	≤ 85% RH
Calibration environment	20 ℃ ± 2 ℃
Explosion-proof level	ExiaIICT4 optional
IP Grade	IP66
Data record limit	50000
Process connection	M20 × 1.5 (male), special thread customizable
Dimensions	height 170mm, width 110mm, thickness 50mm
