100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter

100% Healthy Material Milk Flowmeter,Coriolis Heavy Mass Flow Meter

Coriolis Heavy Mass Flow Meter

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
Accuracy Grade:
Grade 0.2 Grade 0.5 Grade
Ambient Temp:
-25℃~+55℃
Relative Humidity:
≤95%
Maintenance:
Less and Easy
Port:
Shanghai or other
برجسته کردن:

100% Healthy Material Milk Flowmeter,Coriolis Heavy Mass Flow Meter

,

Coriolis Heavy Mass Flow Meter

شرایط پرداخت و حمل و نقل
قیمت
$2,400.00 - $6,000.00/pieces
Packaging Details
Wooden crates or customer requirements
Supply Ability
2000 Piece/Pieces per Month
محصولات مرتبط
با ما تماس بگیرید
86--17719566736
حالا تماس بگیرید
توضیحات محصول

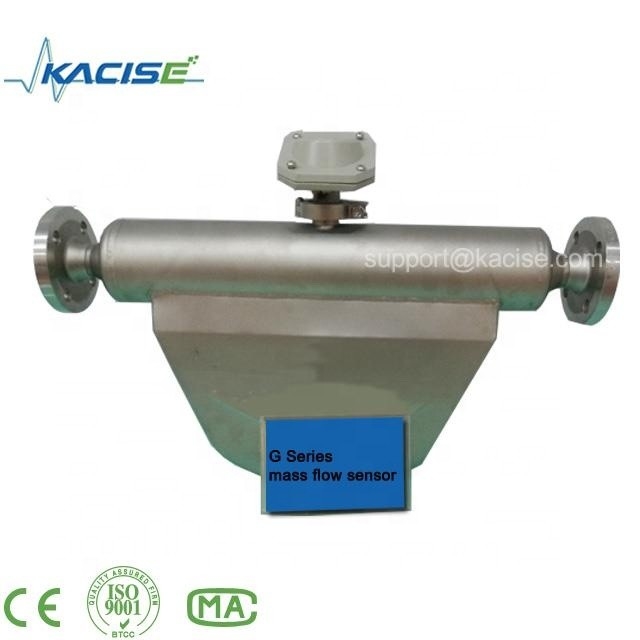

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 0

 Milk mass flowmeter   consist of mass flow sensor and mass flow transmitter. It does not measure the volume per unit time (e.g., cubic meters per second) passing through the device, but measures the mass per unit time (e.g., kilograms per second) flowing through the device. The result of volumetric meter varies with temperature, pressure, composition, etc., but mass flow meter does not have such problem.

Milk mass flow meter is designed according to Coriolis Effect. The inlet arm and the outlet arm vibrate with the same frequency as the overall vibration, but when there is mass flow the two vibrations are out of sync: the inlet arm is behind, the outlet arm is ahead. The two vibrations are shifted in phase with respect to each other, and the degree of phase-shift is a measure for the amount of mass that is flowing through the tubes.

 Feartures:

1.Reduced fill time with higher flow rate capacity

2.Compact design with no moving parts, no special mounting and no flow conditioning required

3.Fast delivery and global support

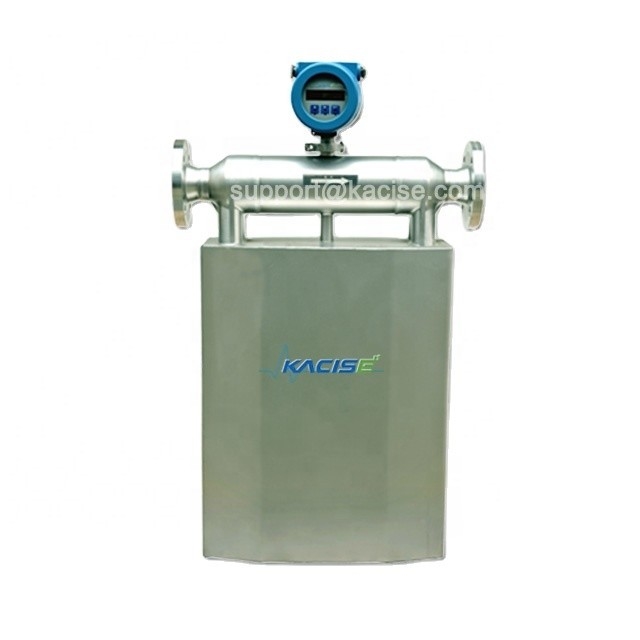

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 1

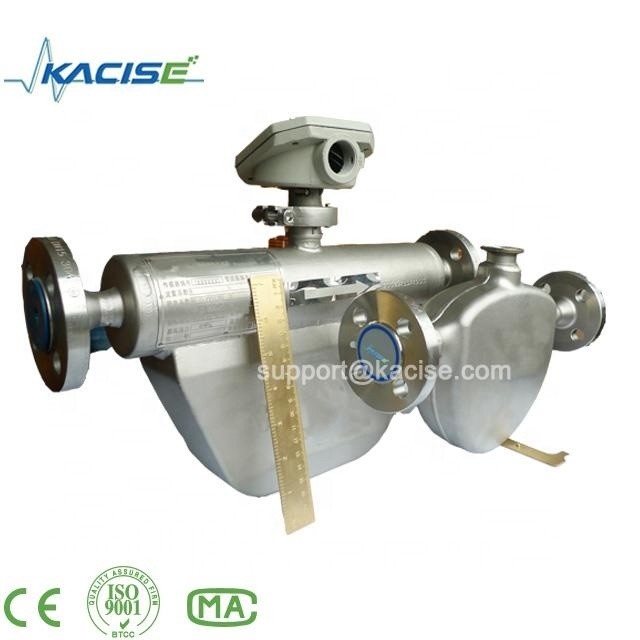

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 2



Dimensions of large - scale instrument







Model

Weld Neck Flanges-ANSI B16.5





A





B





C





E





F





W





G





K





d





D

DN

LB

KMF-1-6c

100

150

670

510

740

858

1092

260

19.1

190.5

157.2

228.6

KMF-1-6CD

125

150

670

510

740

858

1092

260

22.4

215.9

185.7

254

KMF-1-6D

150

150

860

670

950

1130

1370

280

22.4

241.3

215.9

279.4

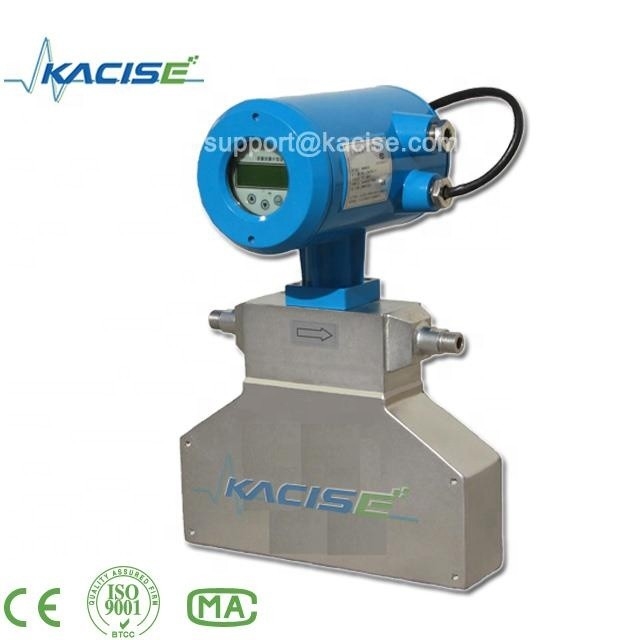

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 3

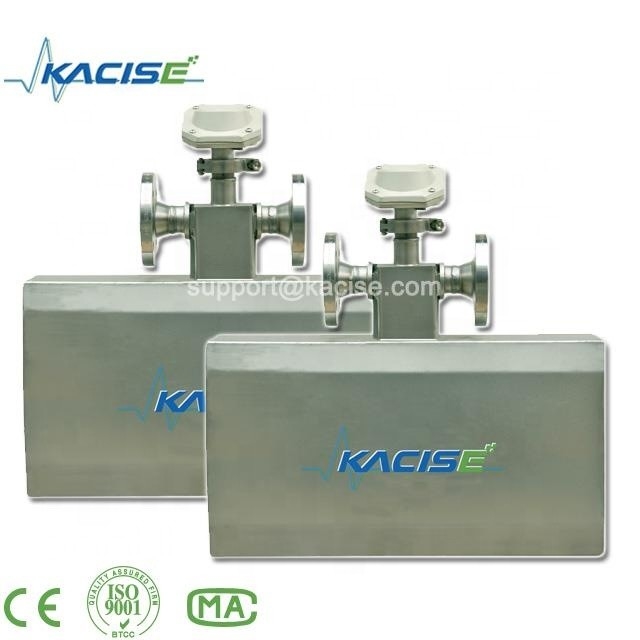

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 4

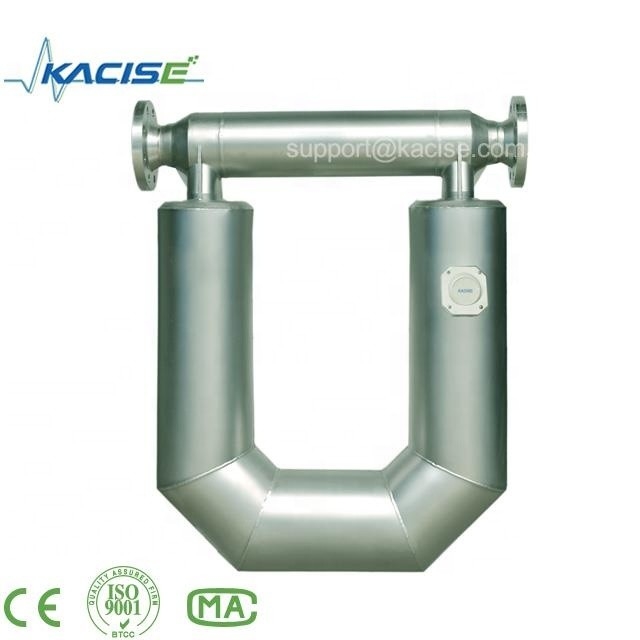

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 5

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 6



100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 7

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 8

APPLIED RANGE

Applied Range

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 9

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 10



Company Show

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 11

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 12

100% Healthy Material Coriolis Heavy Mass Flow Meter / Milk Flowmeter 13



 FAQ



FAQ

1.Q: May I put my own logo on the product?

 A: Sure. Logo can be printed on the housing, and company name can be engraved on  the nameplate.

2.Q: How about the quality control?

A: All products will be tested for 3 times before packed.

3.Q: May I release trial order, 1 pc for example?

  A: Certainly, trial order is acceptable. In general, we have common models in stock.  Sample will be sent

   within 1 week, after payment is received.

4.Q: Could you design according to my requirements?



  A: Of course, our team will design for you, to make our mass flowmeter work perfectly at your end.
