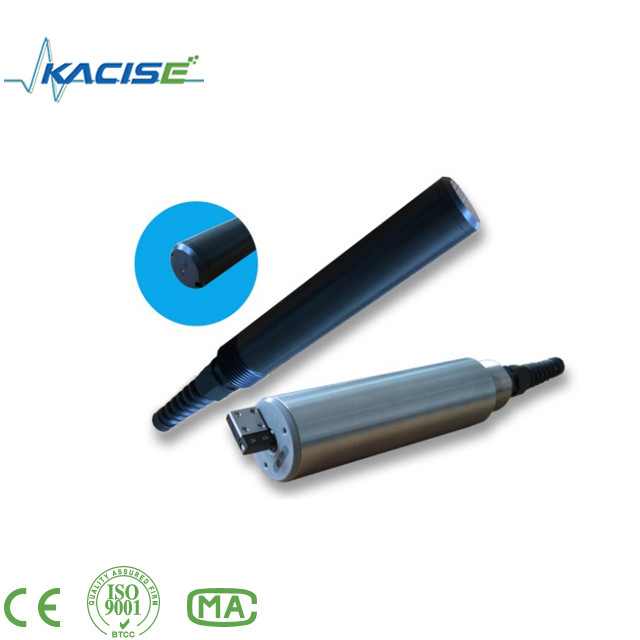

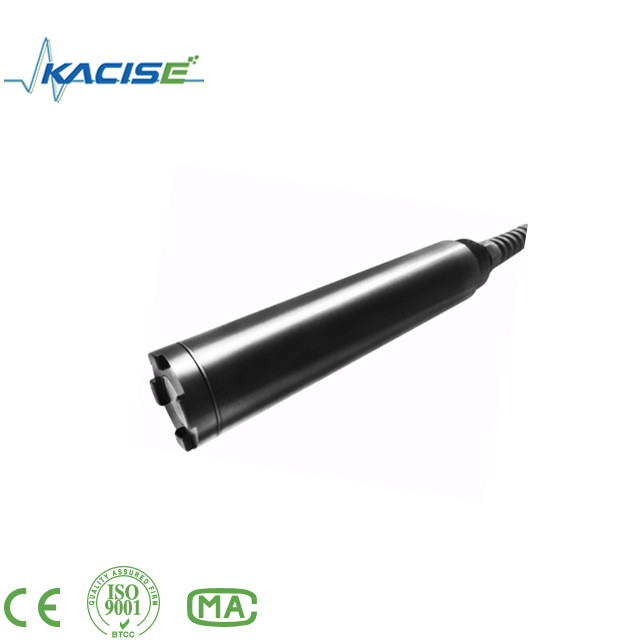

Online Oil In Water Sensor For Industrial Circulating Water Monitoring

Industrial Circulating Water Monitoring Sensor 12V,Online Oil In Water Sensor 500ppb

Online Oil In Water Sensor 500ppb

Place of Origin:

Shaanxi, China

نام تجاری:

Kacise

با ما تماس بگیرید

درخواست نقل قول

Online Oil In Water Sensor For Industrial Circulating Water Monitoring

جزئیات محصول

principle:

fluorescence method

Measuring range:

0-500ppb

Accuracy:

±3%F.S

Power supply:

DC6-12V, current<50mA (when not cleaning)

Product Name:

KWS-1100 Online Oil-In-Water Sensor

Max. depth:

10m under water

Port:

Xi'an or other

برجسته کردن:

Industrial Circulating Water Monitoring Sensor 12V,Online Oil In Water Sensor 500ppb

Online Oil In Water Sensor 500ppb

شرایط پرداخت و حمل و نقل

قیمت

$100.00 - $1,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

500 Piece/Pieces per Month

محصولات مرتبط

KCW102 دستگاه تصفیه آب با امواج الکترومغناطیسی با فرکانس پایین

بهترین قیمت رو بدست بیار

KCW101 فرکانس - تجهیزات تصفیه آب با امواج الکترومغناطیسی مدول

بهترین قیمت رو بدست بیار

KHM100 کنترل کیفیت آب متریال سنگین اتوماتیک

بهترین قیمت رو بدست بیار

KCW104 فرکانس کارایی بالا - دستگاه پاک کننده

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Online Oil in water sensor for industrial circulating water monitoring

Kacise online water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker, and can be monitored online in real time. The sensor has better repeatability and stability. Optional with an automatic cleaning brush, it eliminates air bubbles, reduces the effects of contamination on the measurement, makes the maintenance cycle longer, and maintains excellent stability for long-term online use. It can play an early warning role on oil pollution in water.

Principle

The oil content in the water body was monitored by ultraviolet fluorescence method, and the oil concentration in the water body was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in the petroleum form fluorescence under the excitation of ultraviolet light, and the value of the oil in the water is calculated according to the intensity of the fluorescence.

Feature

Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water.

Technical Specifications

Model	KWS-1100
Measuring Range	0-500ppb
Principle	fluorescence method
Resolution	0.01ppm
Accuracy	±3%F.S
The detection limit	According to actual oil sample
Linearity	R²>0.999
IP Grade	IP68
Max. depth	10m under water
Temperature Range	0~50℃
Output	RS485, Modbus
Installation	Submersible
Dimension	Φ45*175.8mm
Power Supply	DC6-12V, current<50mA (when not cleaning)
Cable Length	Standard 10m, customizable
Casing Material	316L (titanium alloy customizable)
Self-cleaning Function	Optional
