Name: Piezoelectric water fuel pressure sensor with type 485 pressure sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS series
Price: 215.00 USD
Availability: InStock

خونه > محصولات > اندازه گیری سطح مایعات >

Piezoelectric water fuel pressure sensor with type 485 pressure sensor

Place of Origin:

CHINA

نام تجاری:

KACISE

گواهی:

Model Number:

GXPS series

با ما تماس بگیرید

درخواست نقل قول

Piezoelectric water fuel pressure sensor with type 485 pressure sensor

جزئیات محصول

Pressure range:

-0.1MPa~1kPa......800MPa

accuracy:

0.25%, 0.5%, 1.0%

output:

4~20mA, 0~10V, 0~5V, rs485, etc, optional

core material:

diffused-silicon oil filled core

power supply:

DC, battery,

pressure port:

M20x1.5, G1/4, G1/2, R1/2, NPT1/2 (customizable)

name:

water pressure sensor

type:

485 pressure sensor

Port:

Shanghai or other

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1PCS

قیمت

$40.00 - $390.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

محصولات مرتبط

ویدیو

کنترل کننده نمایش سری KDI که از ارتباطات چند ماشین پشتیبانی می کند

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش سری KDI با رابط باز تنظیم پارامترهای داخلی دقت بالا و وضوح 0.1

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش اندازه گیری سری KDI با سوئیچینگ ورودی چند شاخص و جبران دمای دقیق

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش ستون نور سری KDI با اندازه گیری دیجیتال و آنالوگ

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Piezoelectric water fuel pressure sensor cost

Introduction of pressure sensor

The GXPS pressure sensor has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of sensors which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water, oil, mildly corrosive, corrosive gas and liquid pressure. Besides, our engineer team can customize various of products according to your requirements.

Feature of water pressure sensor

Accuracy: ±0.1%FS, ±0.2%FS, ±0.25%FS, ±0.5%FS, 1.0%FS
Diffused-Silicon oil-filled core
Multiple pressure range and output signal
Display indicator available and output node
Various screw connection
Non polarity 2 line current output
AC, DC voltage output
Intrinsically safe mode, isolation explosion protection, CE
Against server electromagnetic interference, lightning protection

Application of fuel pressure sensor

Energy and transportation
Automatic testing systems
Petrochemical industry
Hydraulic and pneumatic systems
Mine metallurgy
Laboratory equipment
Automatic test system
Industrial machinery manufacture
Automatic detection systems
Oil well real-time management

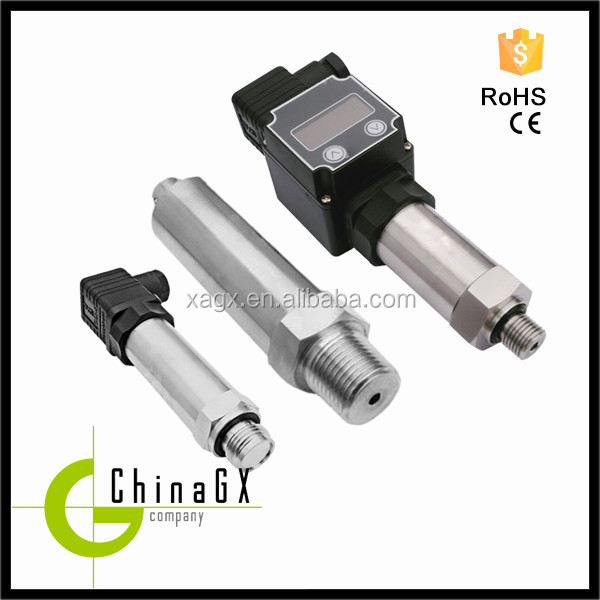

GXPS100 universal piezoresistive pressure sensor

Spec.	Value
Pressure range	0~0.2MPa......60MPa 2bar…600bar 29psi…8700psi 20000MmH20…6118000mmH2O 1.97atm…592atm
Load pressure	1.5 times nominal value pressure (1.5X)
Rupture pressure	3 times nominal value pressure (3X)
Accuracy	±0.5%F.S(PT 300 or MARS for higher accuracy are available)
Stability	Typical value 0.25%F.S, Max. value: 0.4%F.S
Operating temperature	-40°C~120°C
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance	2 wire system	3 wire system
Output signal	4~20mA	0~5V		1~5V	0.5~4.5V	0~10V
Power supply	10~30Vdc	8~30Vdc			5V(ratio)	11~30Vdc
Load pressure	(U-10)/0.02Ω	>100kΩ
Insulation	>100M Ω@50V
Electric strength	500V@60 second
Vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable	2×10⁶pressure circle @25°C
Display range	-999~1999@(PT110&PT111)
Contact capacity	(24V, 1A)@PT111
Electrical connection	Hirsmann , air plugs, fixed cable, water proof cable
Pressure port	M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type	G, S		Response time: 10ms
Certificate	Intrinsically safe mode E, CE
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

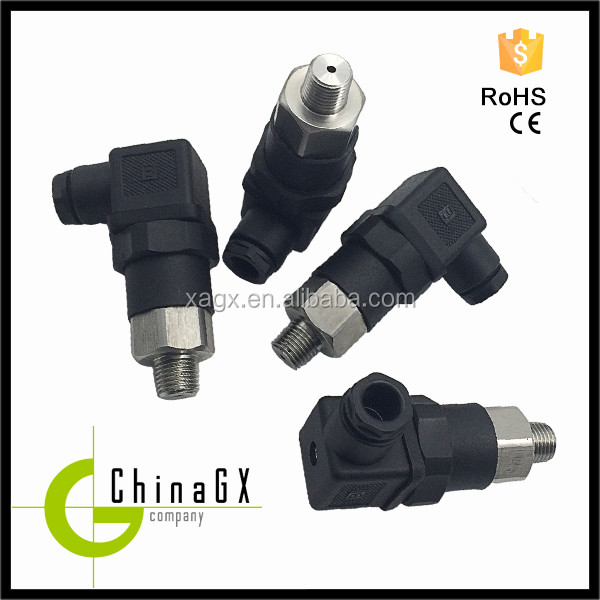

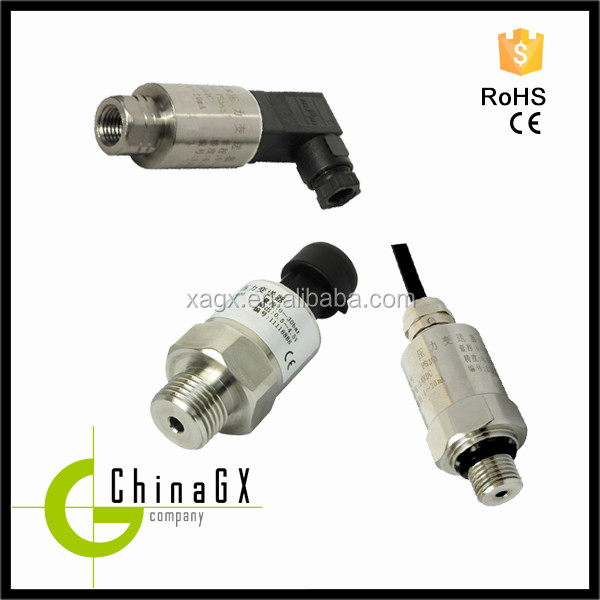

GXPS353 Refrigeration industry pressure sensor

Piezoelectric water fuel pressure sensor with type 485 pressure sensor 5

Spec.	Value
Pressure range	0~2bar ......600bar
Load pressure	1.5times nominal value pressure (1.5X)
Rupture pressure	3times nominal value pressure (3X)
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature	-40°C~125°C
Storage temp.	-40~120℃
Compensation temperature	-10°C~ 80°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance	2 wire system	3 wire system
Output signal	4~20mA	0.5~4.5V
Power supply	10~30Vdc	5Vdc		10~30Vdc
Load pressure	(U-10)/0.02Ω	>100kΩ
Insulation	>100M Ω@50V
Electric strength	500V@60 second
Vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable	2×10⁶pressure circle @25°C
Electrical connection	Packard, Hirsmann , air plugs, fixed cable, water proof cable
Pressure port	G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
Pressure type	G, S		Response time: 10ms
Certificate	Intrinsically safe mode E, RoHS; CE
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

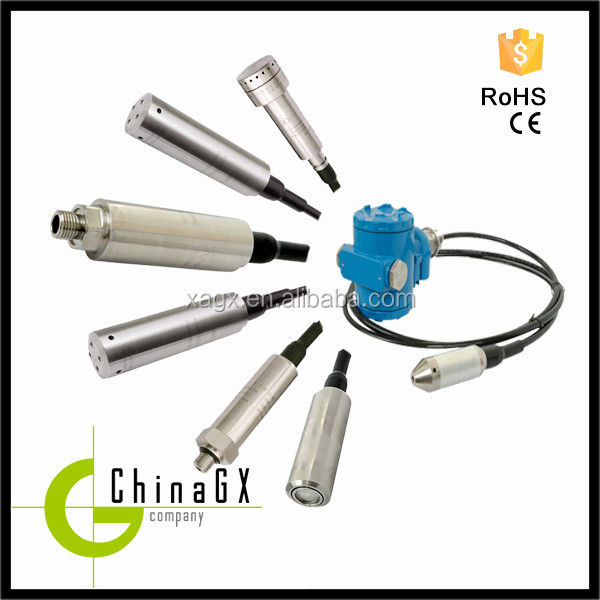

GXPS400 pressure level sensor

Piezoelectric water fuel pressure sensor with type 485 pressure sensor 8

Spec.	Numerical value
Pressure range	0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg
Overload pressure	1.5times Rated pressure
Secondary containment	3 times rated pressure
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02Ω	>100kΩ
Insulation	>100MΩ@50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface	G1/4,input type
Response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
Electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection	air conduction resistance 8000V,case, cable conduction

Our Services

Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.

Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
