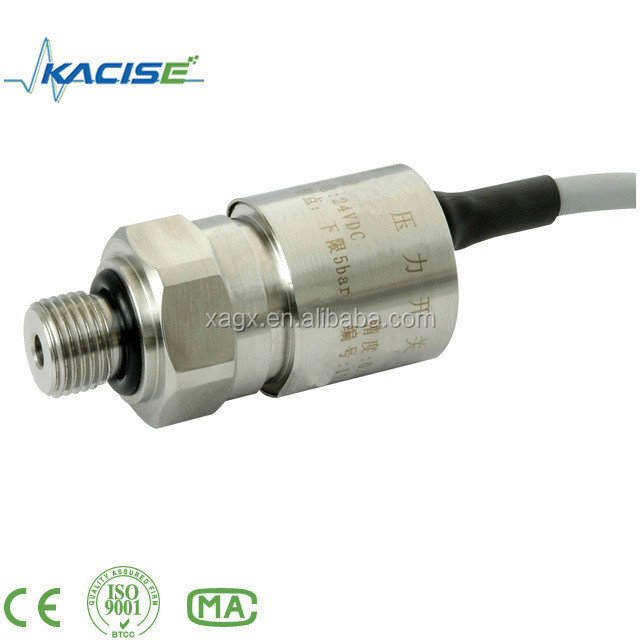

Washing Machine Pressure Transducer / Pressure Sensor / Pressure Switch

 washing machine pressure transducer/pressure sensor/pressure switch

Feature

1). Accuracy   ±0.1%F.S ±0.25%F.S   ±0.5%F.S ±1.0%F.S

2). Various measuring range and signal output

3). With silicon or ceramic piezo-resistive core

4). CE, explosion-proof

Introduction

The GXPS pressure transmitter has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of sensors which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as  water,oil,mildly corrosive,corrosive gas and liquid pressure. Besides, our engineers team can customize various of products accordding to your requirements.

Parameter

Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

1. -0.1MPa~1kPa......800MPa = the upper limitation of the range
2. A=4~20mA, 0~5V,0~10 V, 1~5V,1~10V, RS232, RS485,USB and so on (customizable)
3. 5VDC,24VDV,6~24VDC,12~30VDC, 9VDC battery, 3.6VDC battery
4. T=Submersible, M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
5. C=fixed cable outlet,
6. XXm=XX meter 1-150m
7. Bb, Foam

Other same products

1pc/bag, 1 bag/box, many boxes/carton, or customized available.

In order to choose the suitable transmitter for you, please send us below information with the feedback.

1. pressure range

2. accuracy

3. output signal

4. power supply voltage

5. pressure port

6. elec. connection

7. medium

8. temperature range
