Miniaturized, high precision, a large number of inertial pilot accelerometers for military use

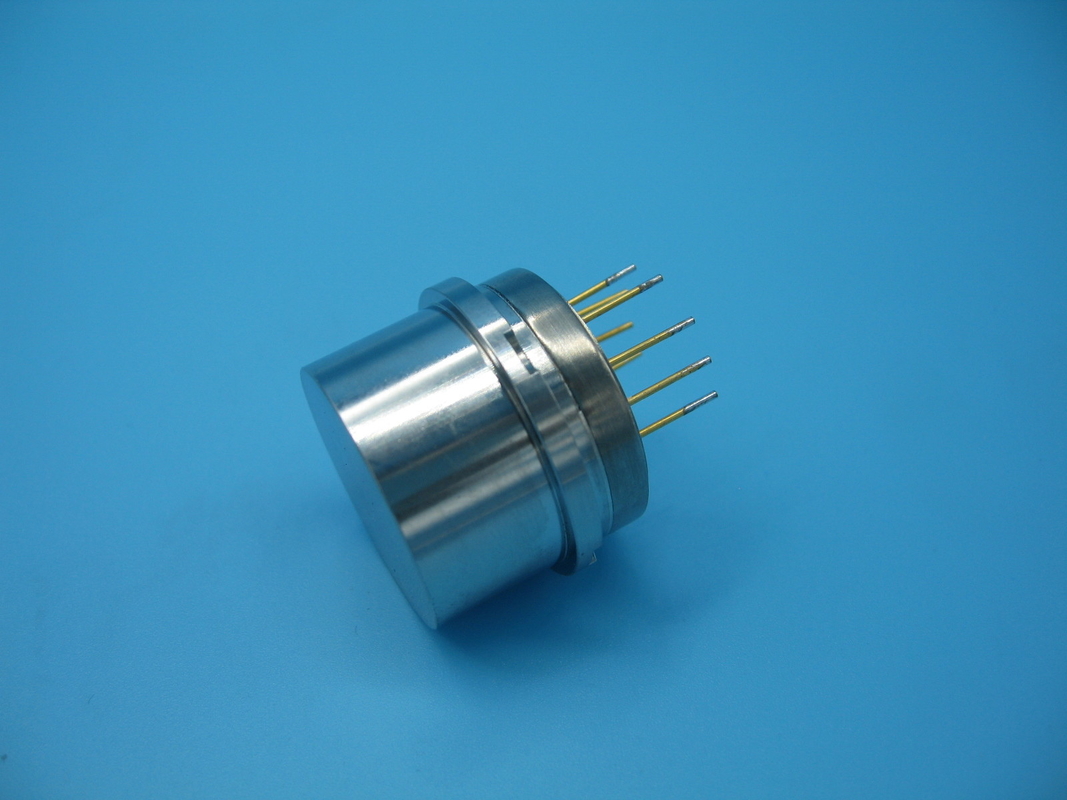

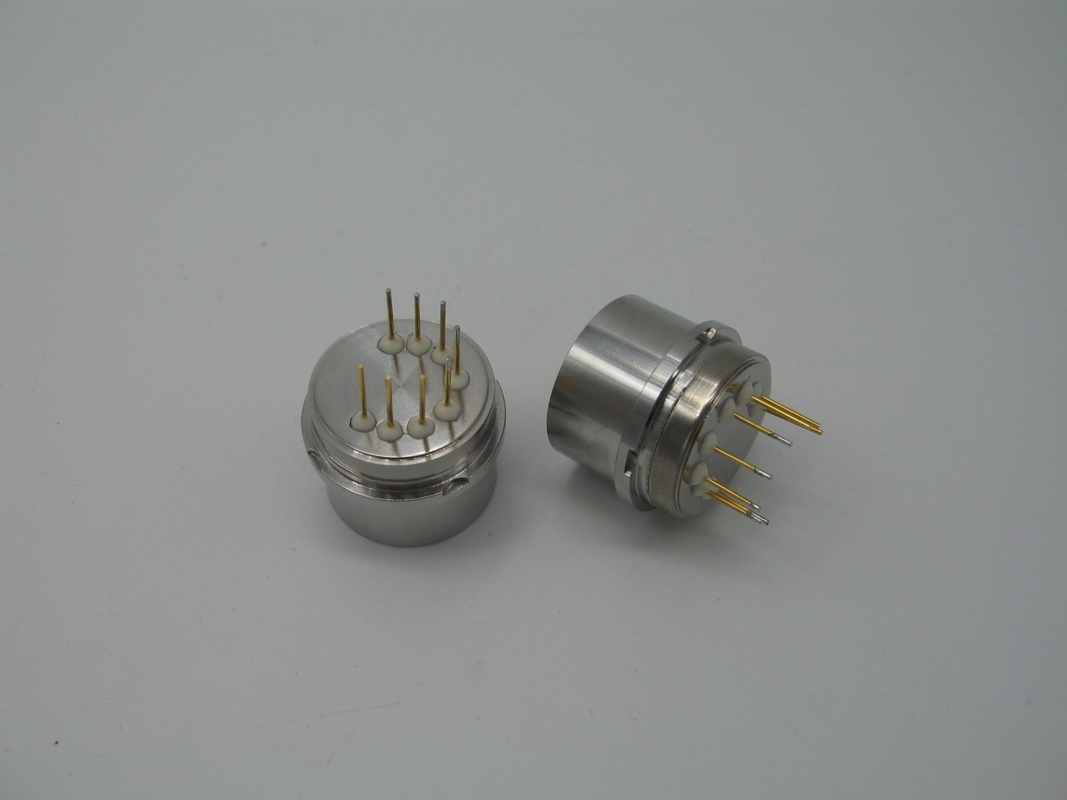

KSJB3 series quartz flexible accelerometer is a small, high precision, a large number of military inertial navigation level accelerometer, the product has excellent long-term stability, repeatability, starting performance, environmental adaptability and high reliability and other characteristics, can be used for static testing can be used for dynamic testing, is also a standard vibration sensor and inclination sensor.

The product adopts a unique miniaturized design and packaging process, the output current and the force or acceleration are linear, the user can choose the appropriate sampling resistance by calculation, to achieve high precision output. The built-in temperature sensor can be used to compensate the offset value and scale factor to reduce the impact of ambient temperature according to user needs.

Applications: Inertial measurement of military inertial navigation system and vibration isolation test and inclination test of precision instruments and equipment in aerospace, aviation, ships, weapons and other fields.

1．Square flange dimensions

Pin definition:

1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000

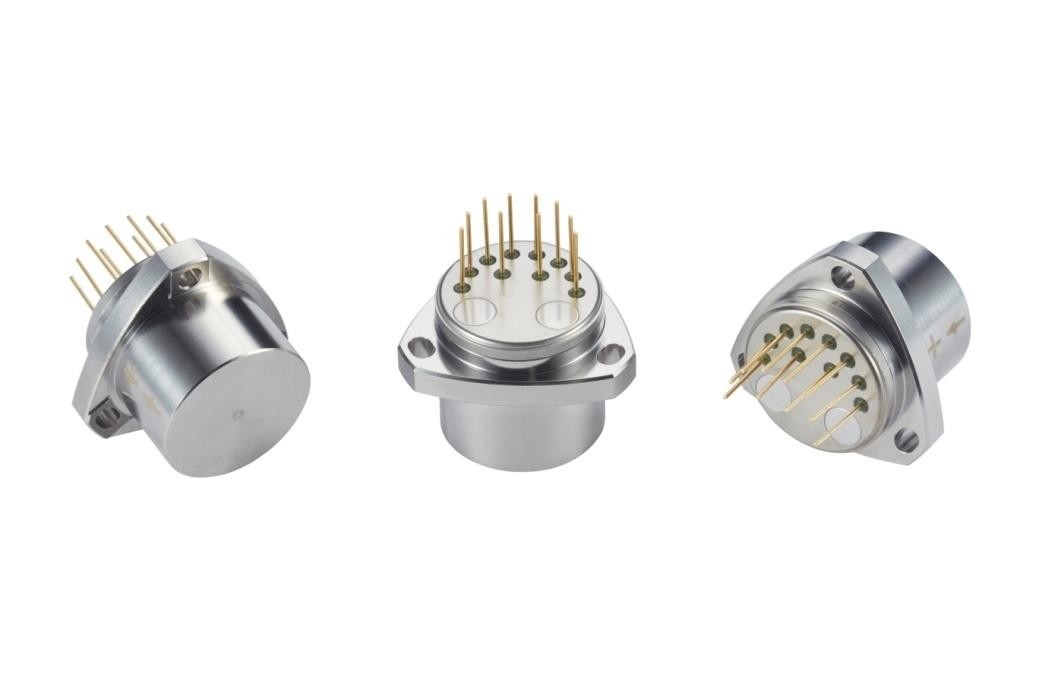

2．Triangular flange dimensions




3．Dimensions of inverted triangle flange





4.technical parameters



5.Note

1. Scale factor is adjusted according to user requirements;

2.Temperature sensor: divided into AD590, pt1000, 18B20,

3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;

4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
