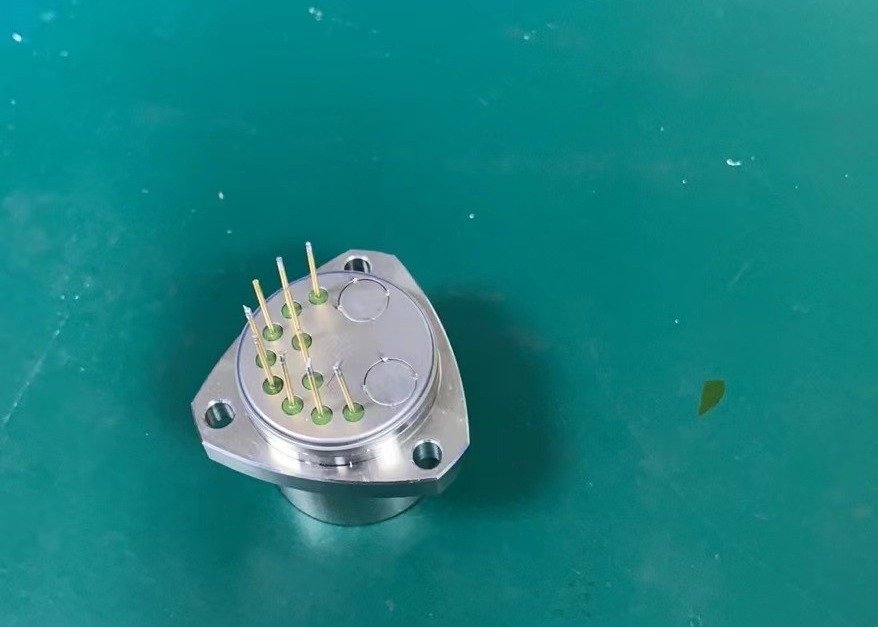

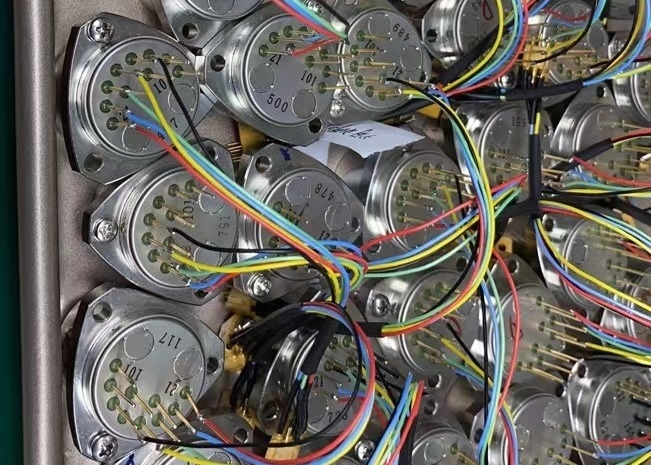

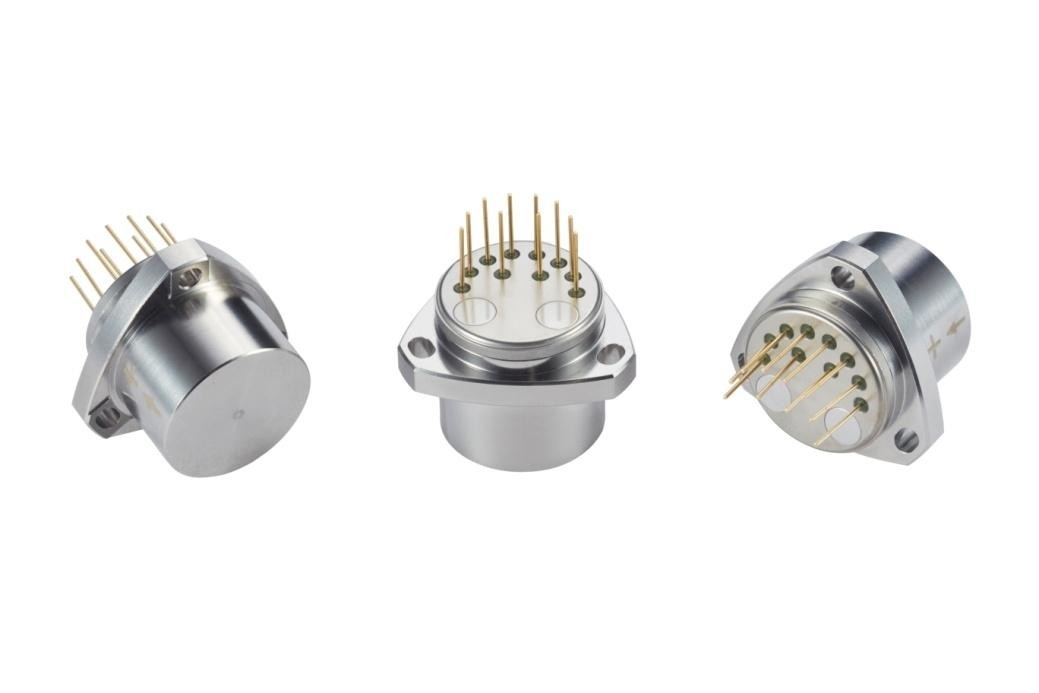

Product Description:
The KSJB2 series quartz flexible accelerometer is an exceptionally precise sensor designed for inertial navigation in a wide range of military applications, capable of measuring forces up to 100g. This product is highly regarded for its exceptional long-term stability, repeatability, start-up performance, adaptability to various environments, and remarkable reliability.
It can be employed for both static and dynamic testing and also serves as a standard vibration and inclination sensor. The sensor's output current is directly proportional to the applied force or acceleration, and users can fine-tune it by selecting the appropriate sampling resistance. Additionally, the built-in temperature sensor allows for compensation of offset values and scale factors to minimize the effects of temperature changes as needed.
The applications of this sensor include inertial measurements in high-precision military navigation systems used in aerospace, aviation, naval operations, weapons, and various other fields, as well as precision instrument equipment vibration isolation and inclination testing.

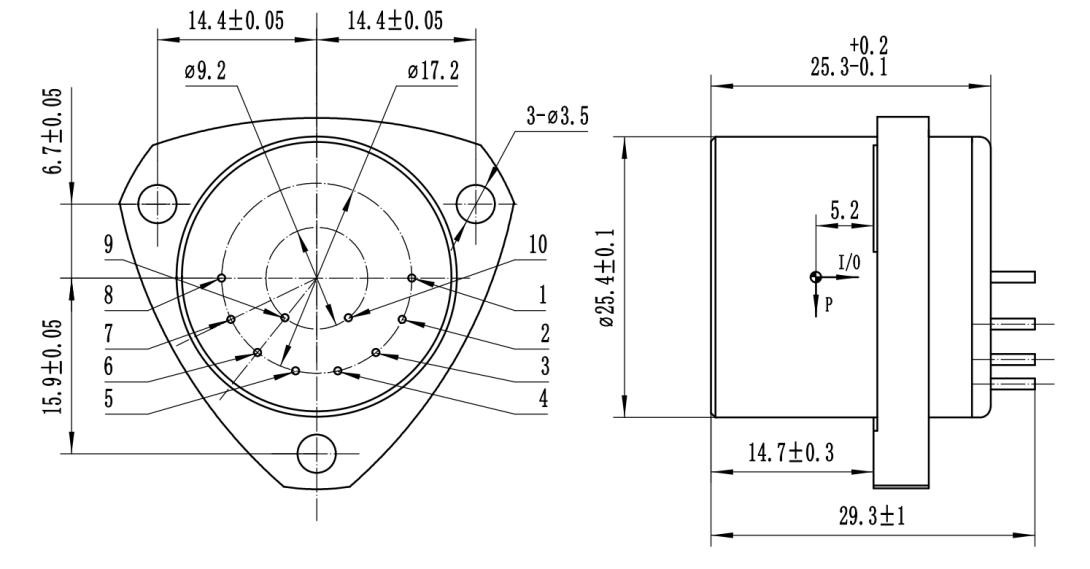

Outline diagram and pin definition:
Figure I: Universal accelerometer
Pin conventional definition: 1, signal output; 2. Empty; 3, -15V; 4, +15V; 5, power supply and signal ground; 6. Empty; 7. Empty; 8. Empty; 9, -9V output; 10, +9V output.
Technical Parameters:
| Number |
Parameters |
KSJB2-01 |
KSJB2-02 |
KSJB2-03 |
| 1 |
Scope |
±70g |
±70g |
±70g |
| 2 |
Threshold value |
5μg |
5μg |
5μg |
| 3 |
deviation value K0/K1 |
≤±3 mg |
≤±3 mg |
≤±5 mg |
| 4 |
scale factor K1 |
0.8~1.2 mA/g |
0.8~1.2 mA/g |
0.8~1.2 mA/g |
| 5 |
Second order nonlinear coefficient K2 |
≤±10μg /g2 |
≤±15μg /g2 |
≤±20μg /g2 |
| 6 |
0g 4 hours short-term stability |
≤10 μg |
≤15 μg |
≤20 μg |
| 7 |
1g 4 hours short-term stability |
≤10 ppm |
≤15 ppm |
≤20 ppm |
| 8 |
deviation value synthesis repeatability σK0 (1σ,one month) |
≤10 μg |
≤20 μg |
≤30 μg |
| 9 |
Scale factor integrated repeatability σK1/K1 (1σ,one month) |
≤15ppm |
≤30 ppm |
≤50 ppm |
| 10 |
Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) |
≤±10 μg /g2 |
≤±20 μg /g2 |
≤±30 μg /g2 |
| 11 |
deviation value Temperature coefficient(The mean value of the whole temperature zone) |
≤±10 μg /℃ |
≤±30 μg /℃ |
≤±50 μg /℃ |
| 12 |
Scale factor Temperature coefficient(The mean value of the whole temperature zone) |
≤±20 ppm /℃ |
≤±30 ppm /℃ |
≤±50 ppm /℃ |
| 13 |
Noise(The sampling resistance is 840Ω) |
≤5mv |
≤5mv |
≤5mv |
| 14 |
Natural frequency |
400~800 Hz |
400~800 Hz |
400~800 Hz |
| 15 |
bandwidth |
800~2500 Hz |
800~2500 Hz |
800~2500 Hz |
| 16 |
Random vibration |
6g(20-2000Hz) |
6g(20-2000Hz) |
6g(20-2000Hz) |
| 17 |
strike |
100g,8ms,1/2sin |
100g,8ms,1/2sin |
100g,8ms,1/2sin |
| 18 |
Operating temperature range |
-55～+85℃ |
-55～+85℃ |
-55～+85℃ |
| 19 |
Storage temperature range |
-60~+120℃ |
-60~+120℃ |
60~+120℃ |
| 20 |
Power supply |
±12~±15V |
±12~±15V |
±12~±15V |
| 21 |
Current consumption |
≤±20mA |
≤±20mA |
≤±20mA |
| 22 |
Temperature sensor |
User customizable |
User customizable |
User customizable |
| 23 |
dimension |
Ф25.4X30mm |
Ф25.4X30mm |
Ф25.4X30mm |
| 24 |
weight |
≤80g |
≤80g |
≤80g |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
|
|
