Product Description:

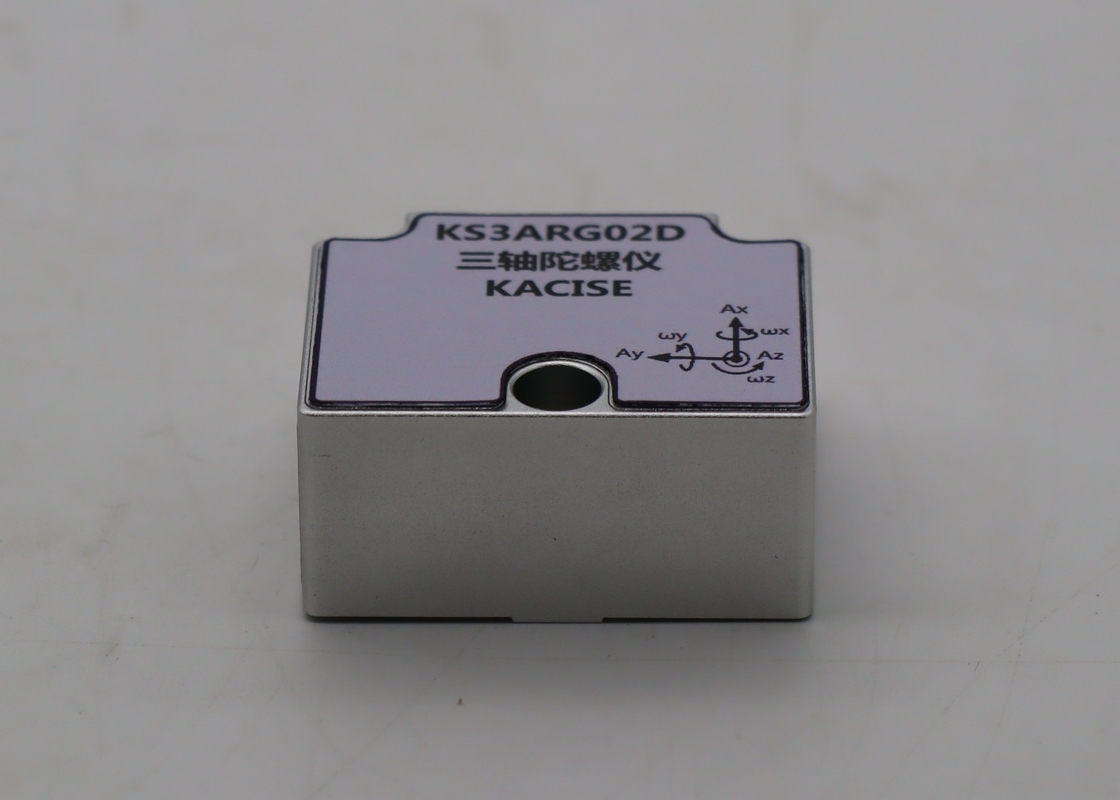

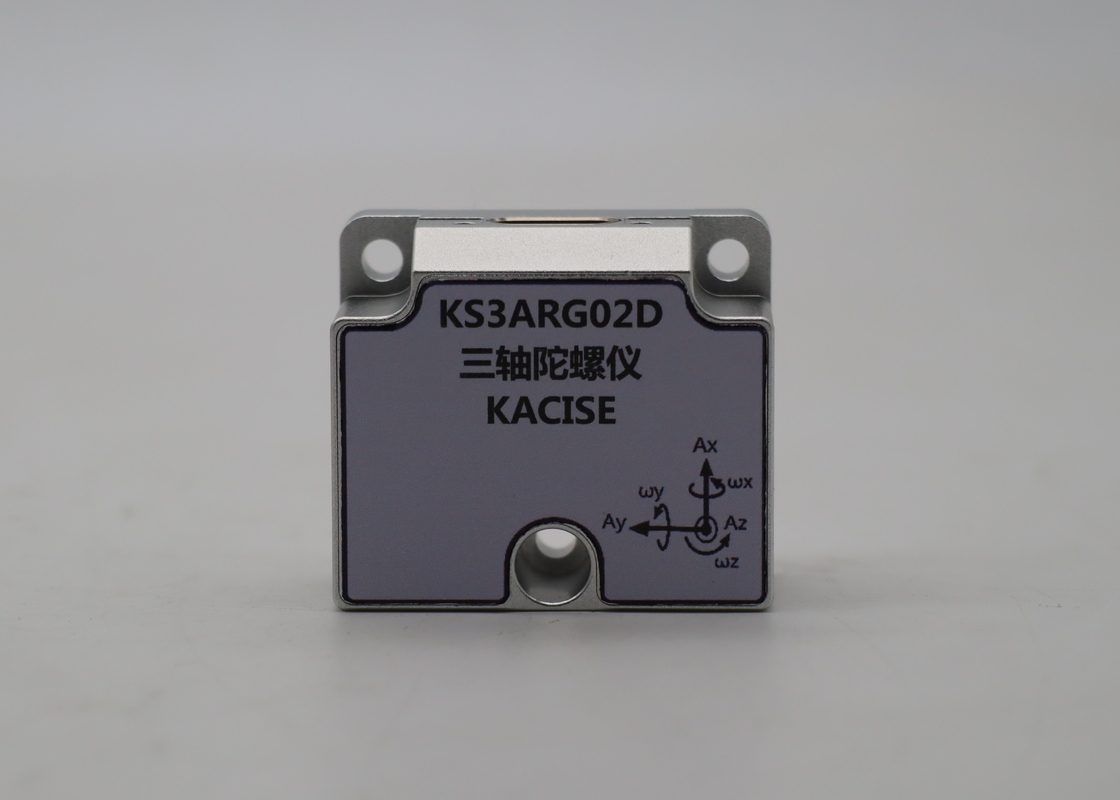

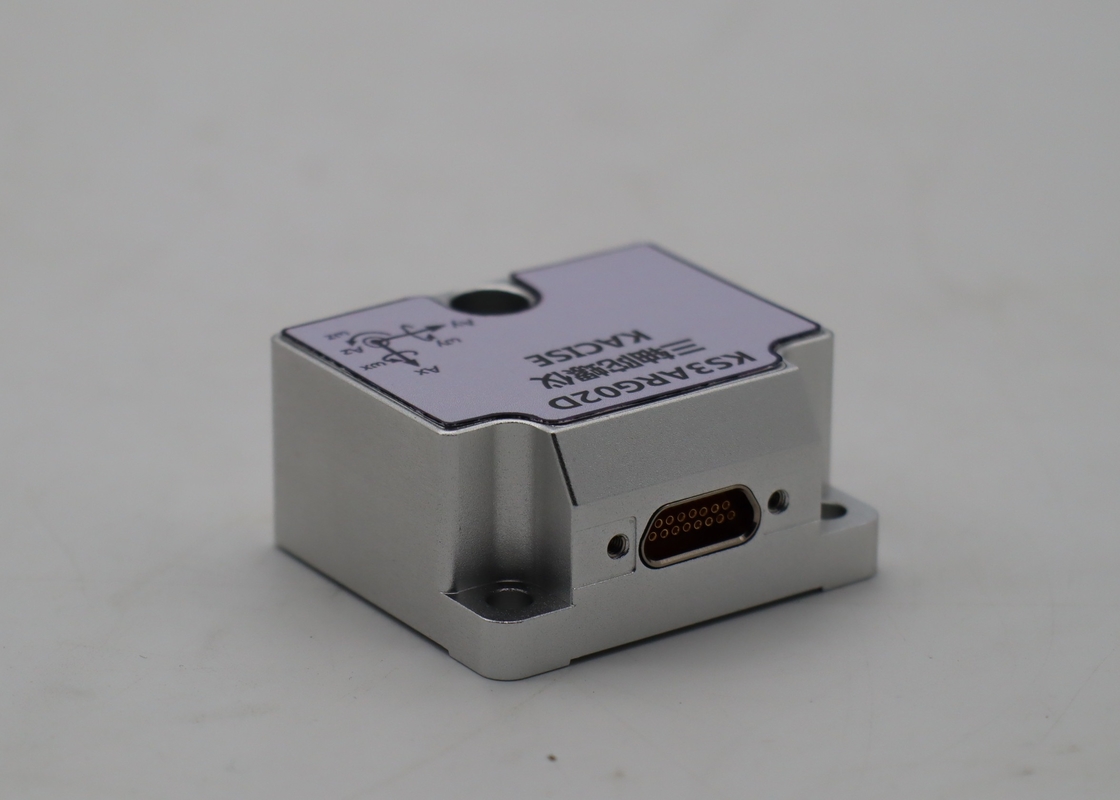

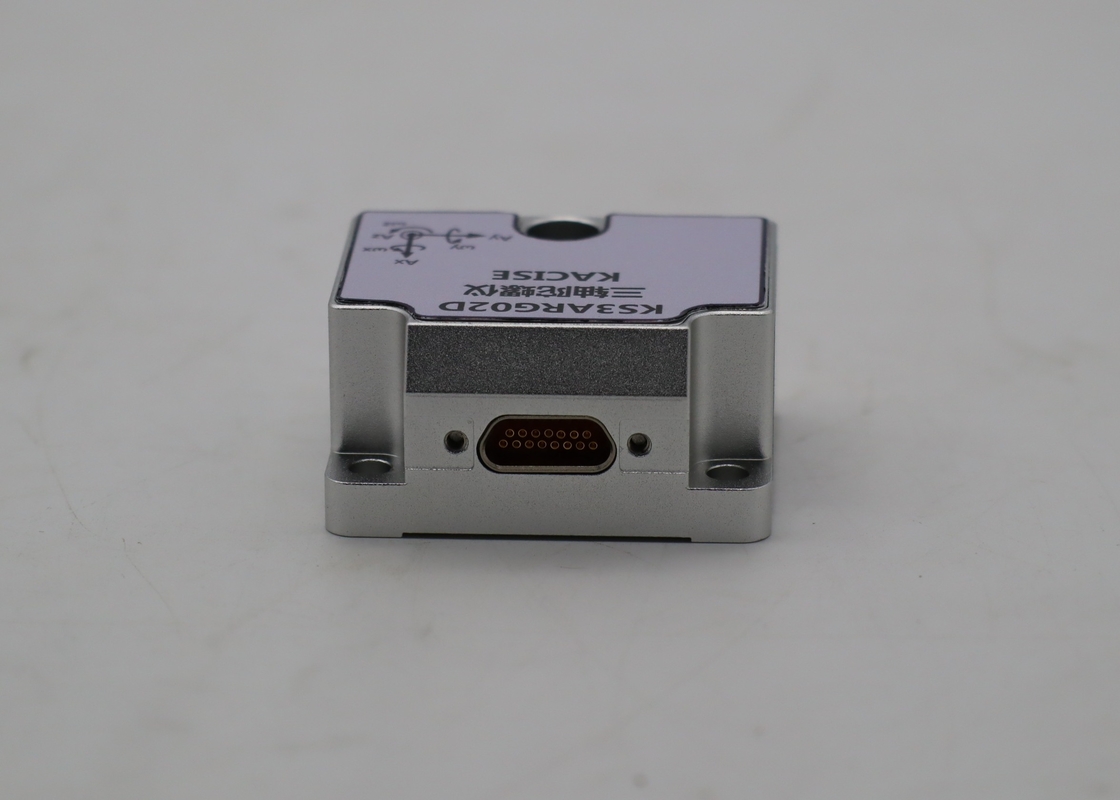

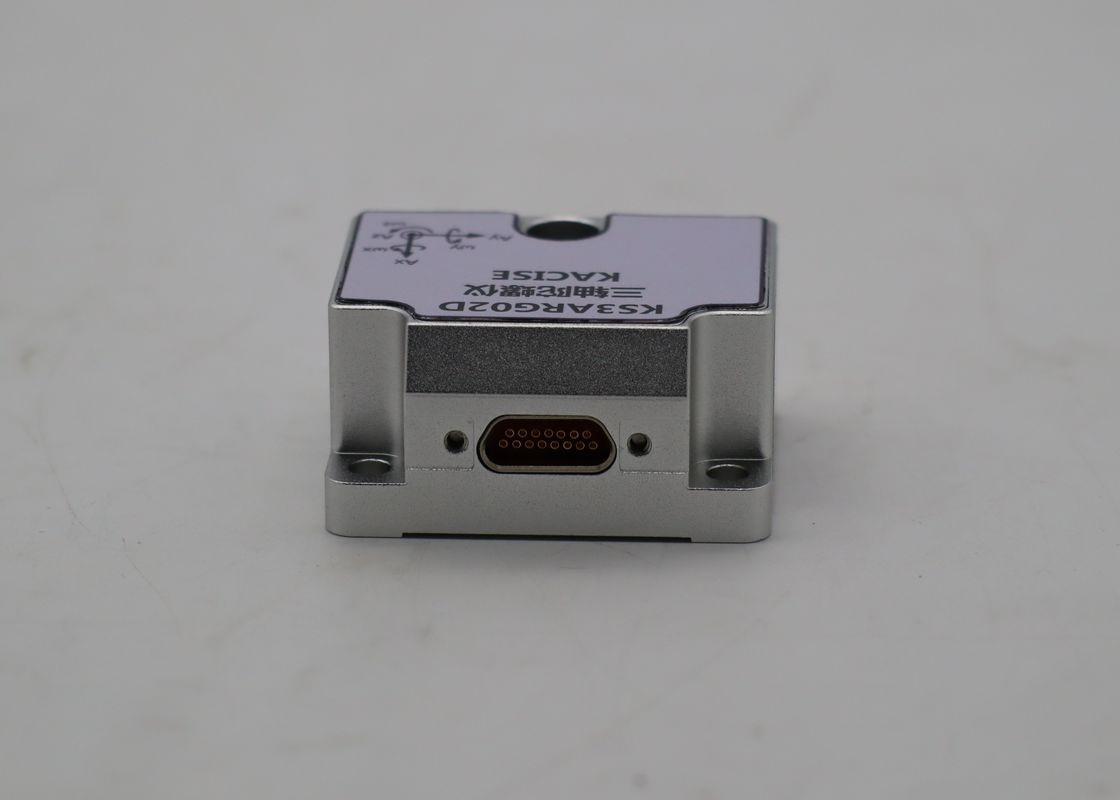

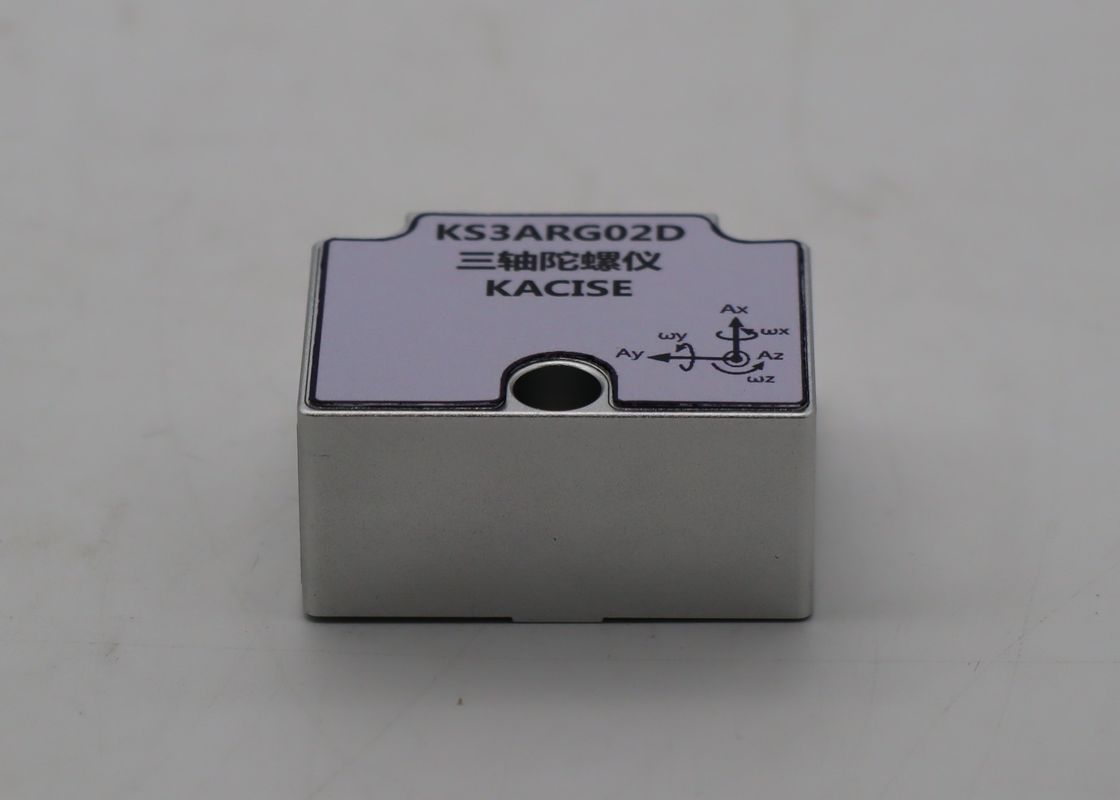

The KS3ARG-02D series represents a high-performance solid-state angular rate sensor (gyro) designed for accurate angular rate measurements. It integrates micromechanoelectronic system (MEMS) technology chips produced through the bipolar metal oxide semiconductor (BIMOS) production process, coupled with a spherical grid arrangement of current carrier welding technology. Notable features include high reliability, rugged packaging, a Self-Test function for in-machine detection (BIT), zero bias calibration, temperature drift compensation, wide measurement range, wide bandwidth, non-linear correction, and more. Its attributes encompass a wide operating temperature range, small size, light weight, and excellent resistance to impact acceleration.
Serving as an integral inertial measurement component, this product plays a crucial role in a myriad of technical applications. It is aptly employed in intelligent automobiles, geological exploration endeavors, robotics, missile guidance and control systems, aircraft stability control mechanisms, strapdown inertial navigation systems, antenna stabilization tasks, cameras, and other pertinent technical fields.
Features:
- Small size
- Light weight
- Wide bandwidth
- Wide measurement range
- Temperature drift compensation
- Bias calibration
- High impact acceleration resistance
Technical Parameters:
| Performance parameter |
KS3ARG-02D |
| gyro |
range
(deg/s)
|
±500(triaxial) |
| Zero-bias(deg/s) |
≤±0.1(In 500°/s) |
| Zero-bias stability(deg/h) |
≤0.5allan deviation |
| Zero-bias repeatability(deg/s) |
≤0.05 |
| nonlinearity(%FR) |
≤0.05 |
| Random walk(°/√h) |
0.15 |
| Mean time between failures(Kh MTBF) |
10 |
| Interface characteristic |
power(V) |
DC5 |
| power dissipation(W @5V DC) |
≤1 |
| electrical interface |
RS422 |
| data updating rate(can set) |
2000(Hz@460800) |
| operating environment |
operating temperature(°C) |
-40~+80 |
| storage temperature(°C) |
-55~+85 |
| Vibration(g @ 20~2000 Hz) |
6.06 |
| Shock(g , 0.1 ms, 1/2 Sine) |
5000 |
| physical property |
Size(mm) |
45×39×20 |
| Weight(g) |
≤60 |
Dimension figure
Support and Services:
Technical Support and Services for Electronic Gyroscope Sensor
Thank you for choosing our Electronic Gyroscope Sensor. We are committed to providing you with the best technical support and services to ensure the optimal performance of your product.
Technical Support
Our team of experienced engineers is available to provide technical support for any issues you may encounter with your Electronic Gyroscope Sensor. We offer support through various channels, including phone, email, and online chat. Our knowledgeable team will assist you in troubleshooting and resolving any technical problems.
In addition, we provide comprehensive technical documentation, including user manuals and technical specifications, to help you better understand and utilize your Electronic Gyroscope Sensor.
Warranty
All of our products come with a one-year warranty from the date of purchase. In the unlikely event of a defect, we will repair or replace the product free of charge.
Please note that our warranty does not cover damages caused by improper use, unauthorized modifications, or natural disasters.
Customization Services
We understand that every customer's needs may vary, which is why we offer customization services for our Electronic Gyroscope Sensor. Our team will work with you to tailor the product to your specific requirements, ensuring that it meets your expectations.
Contact Us
If you have any questions or require any assistance with your Electronic Gyroscope Sensor, please do not hesitate to contact us. Our dedicated support team is always happy to help and will respond to your inquiries promptly.
Thank you again for choosing our Electronic Gyroscope Sensor. We look forward to serving you and helping you achieve your goals.
Packing and Shipping:
Electronic Gyroscope Sensor
Packaging and Shipping
Each Electronic Gyroscope Sensor is carefully packaged to ensure safe delivery to our customers. The packaging includes:
- Electronic Gyroscope Sensor
- User manual
All components are securely placed in a sturdy box with cushioning material to protect against any damage during shipping.
Our shipping process is efficient and reliable. We offer worldwide shipping with tracking information provided to our customers. The estimated delivery time will vary depending on the destination.
For bulk orders, we offer customized packaging and shipping options to meet specific needs and requirements. Please contact our customer service team for more information.
Thank you for choosing our Electronic Gyroscope Sensor. We strive to provide the best product and service to our customers.
