Product Description:

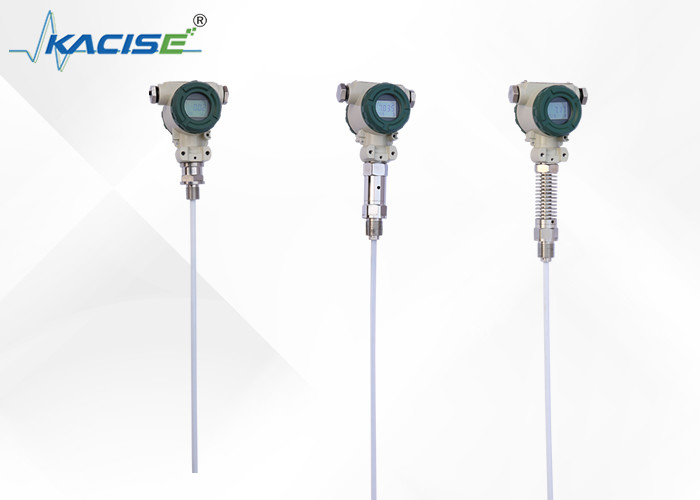

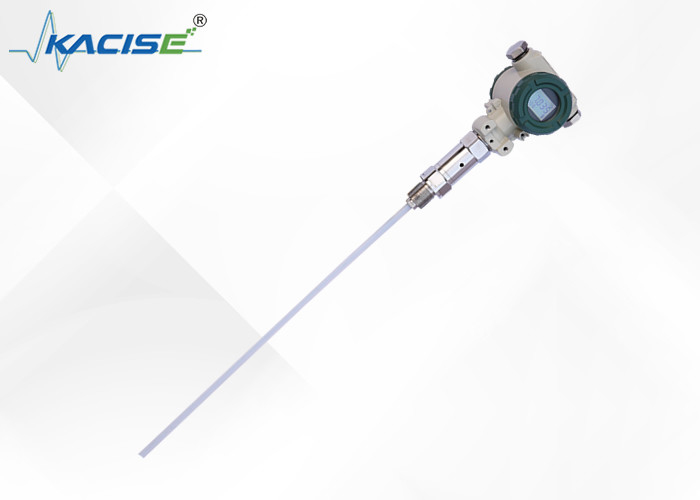

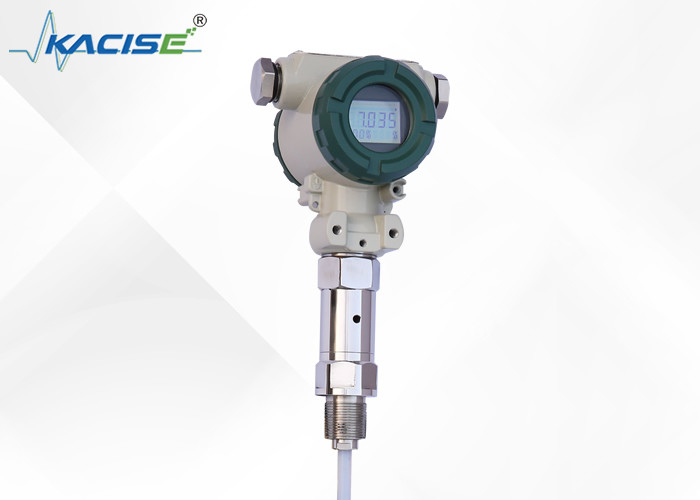

The KCF600 series capacitive level transmitter is designed to continuously detect a variety of liquids in harsh conditions such as high temperature and pressure, high corrosion, easy crystallization, and easy plugging. It is suitable for measuring water, acid and alkali solutions, and the water level in the boiler.
This level transmitter has no movable or flexible parts, making it highly reliable and resistant to impact. Its installation is easy, and it offers high precision at a reasonable cost. In various situations, it is capable of replacing traditional float type, input type, and differential pressure type of level transmitters.
The key parts of the KCF600 level transmitter utilize advanced RF capacitive sensing circuits that are precisely compensated by temperature and corrected for linearity. This ensures that the output is a standardized electrical signal (typically 4~20mA). To configure the system, you can choose from the HART, CANBUS, and 485 communication protocols.
The transmitter has a self-calibration feature that covers the full range, enabling users to perform "zero" and "range" automatic calibrations using two keys. This feature allows for easy adaptation to diverse and complex situations.
Features:
Simple and Reliable Structures
The structures of our products are simple and do not contain any movable or elastic components. This design ensures high reliability and minimal maintenance. In normal situations, there is no need for regular medium or small repairs.
Signal Output Variety
To facilitate different system configurations, our products provide a variety of signal output options for customers to choose from.
Measurement Accuracy
Our products are convenient for measuring high-temperature and high-pressure containers. The measured data is not affected by the measured liquid's temperature, specific gravity, shape of the container, or influence of pressure.
Coresive Liquid Measurement
Our products are especially suitable for measuring acid, alkali, and other corrosive liquids.
Protective Features
Our products also offer perfect protection against overcurrent, overvoltage, and power polarity.
Technical Parameters:
●Detection range: 0.01~30 m
●Accuracy: level 0.2, level 0.5
●Pressure range: -0.1MPa~32MPa
●Probe temperature: -50~250 ℃
●Ambient temperature: -20~60 ℃
●Storage Temperature: -55℃～+125 ℃
●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication
●Supply voltage: 12～28VDC (should be powered by the safety barrier)
●Fixation: Screw mounting M20×1.5,M27×2,
Flange mounting DN25,DN40,DN50.Special specifications can be customized
●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
●Long-term stability: ≤0.2%FS/Year,
●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)
●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5
●Protection:IP67
●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH
Installation and commissioning
The cable and rod level transmitter has a variety of fixed ways to adapt to different site conditions. When the site cannot provide the process facilities such as the M20 × 1.5 female thread or flange, you can choose three methods of installation (wall-mounted, horizontal pipe rack and vertical tube rack, which make you handy in the on-site installation.(With pictures)
When measuring the media of the larger mobility, the user can choose the weight attachment in order to prevent the sensor form violent swing, which can play the role of the stability of the sensor. The heavy objects must be put into the bottom of the container when adding weight, so as not to break the sensor’s wire.
When the site conditions are bad, the user should use the sensor shield to protect the sensor in order to avoid foreign body damage or affect the measurement accuracy.
If the containers are not metal, we need to put the transmitter enclosure with a wire access to the bottom of the container when using a KCF600 rod level transmitter; otherwise the measurement is not accurate.
This product has been calibrated at the factory; he need for field adjustment may take the following methods:
A: Intelligent circuit debugging method:
Site-zero----- When the liquid level is located in the lowest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "Z" key click, the output current is automatically adjusted to 4mA.
Site - filled ------ When the liquid level at the highest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "S" key click ,the output current is automatically adjusted to 20mA.
B: Analog circuit debugging method:
When the liquid level in the next limit, use the screwdriver slowly rotating "Z" potentiometer, observe the ammeter readings close to 4mA
When the liquid level in the upper limit, use the screwdriver slowly rotating "S" potentiometer and observe the ammeter readings close to 20mA
And operate it for 2-3 times more, until the zero and span were accurate 4mA and 20mA. After adjustment, tighten the cover of the transmitter should be.
Note:
1. Products supply with product certification and manual, which have product number, technical parameters, wiring diagram, and the date of manufacture, please check to avoid the mistake.
2. The installation should be based on the product connection and thread types, check the site interface is consistent with the product interface or not. Tighten the threaded connection slowly, pay attention to sealing, the torque cannot be directly added to the transmitter housing and can only be added to the six-party transmitter interface.
3. Wiring should be strictly in accordance with company instructions.
4. This product is a precision Energy conversion instrument, prohibit disassemble, collision, fall and hard rejection to play.
5. Transmitter Work immediately after power on, but output could be stability after warming up for 30 minutes.
6. Abnormal use ,turns off the power, check, or contacts our technical department directly.7. Transportation, storage should be to restore the original packaging and stored in a cool, dry, ventilated warehouse.
8. The installation process should pay attention to avoid the breaking of the skin of the sensor wire.
9. When installing the sensor wire, the distance from pool wall should be at least 10CM above, otherwise the measurement would be not accurate.
10. The grounding line of the whole PTFE structure and the rod level must be conduct with measured media; otherwise the measurement would be not accurate.
11. The installation site should take effective lightning protection measures.
12. The enclosures of any transmitter in this series must be grounded; grounding resistance should be less than 4Ω.
13. Safety barrier should be made explosion-proof certification; its installation requirements should follow the requirements of instructions.
14. When the transmitter is used to "0" zone to the barrier-powered power transformers must meet the requirements of GB3836.4-2000 NO. 8.1.
Applications:
The Fluid Level Meter is suitable for a broad range of applications, including but not limited to:
- Oil and Gas Industry: The Kacise Fluid Level Meter is a perfect solution for measuring fuel levels in tanks and pipelines. The capacitive fuel level sensor can detect changes in fuel levels with high accuracy, making it easier to monitor fuel consumption and prevent fuel theft.
- Chemical Industry: The Fluid Level Meter is ideal for measuring liquid levels in chemical reactors, storage tanks, and pipelines. The PTFE wetted material ensures that the product is highly resistant to corrosion and damage from harsh chemicals.
- Water Treatment Industry: The Kacise Fluid Level Meter is suitable for measuring water levels in water towers, water treatment plants, and pipelines. The capacitive water level sensor can detect changes in water levels with high accuracy, making it easier to monitor water consumption and prevent water shortages.
The Fluid Level Meter has excellent temperature drift and long-term stability, ensuring that accurate readings are maintained over time. The temperature drift of the product is ≤0.02%FS/℃ (Range Of 0～70℃), and the long-term stability is ≤0.2%FS/Year.
The Fluid Level Meter has a pressure range of -0.1MPa~32MPa, making it suitable for use in a wide range of industrial applications. The product is available with various output signals, including 4～20mA,4 ~ 20mA With HART Communication/485/CAN Bus Communication.
The Fluid Level Meter is available for purchase in cartons, with a minimum order quantity of 2. The product is delivered within 5 working days, and payment terms require 100% payment in advance.
Customization:
The KCF6021-1-625mm capacitive fluid level sensor has a range of 0.01~30 M and can be used to measure the level of various liquids. It has a temperature drift of ≤0.02%FS/℃ in the range of 0～70℃ and can operate in temperatures ranging from -20~60 ℃. The product has an IP67 protection rating and can be used in harsh environments.
Support and Services:
The Fluid Level Meter product technical support and services include:
- Troubleshooting assistance for any issues or problems with the device
- Repair and maintenance services for the device
- Technical documentation and user manuals
- Firmware and software updates
- Training and education on how to use and maintain the device
- Warranty and post-warranty support
Packing and Shipping:
The Fluid Level Meter is packaged in a sturdy cardboard box with foam inserts to protect the product during shipping and handling. The box is labeled with the product name, image, and specifications.
Shipping:
The Fluid Level Meter is shipped through a reliable courier service that ensures prompt and safe delivery. The shipping box is marked with the recipient's address, tracking number, and other necessary shipping information.
