Name: Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FU20-FTS
Price: 5,000.00 USD
Availability: InStock

خونه > محصولات > سنسور کیفیت آب >

Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring

pH Range 2-14 Differential pH and ORP Sensor,ORP Range -1500 to 1500 mV Water Quality Sensor,Temperature Range 0 to 105°C Cation Differential Sensor

ORP Range -1500 to 1500 mV Water Quality Sensor

Temperature Range 0 to 105°C Cation Differential Sensor

نام تجاری:

Yokogawa

شماره مدل:

FU20-FTS

با ما تماس بگیرید

درخواست نقل قول

Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring

جزئیات محصول

نظریه اندازه گیری:

مرجع کاتیون

دامنه pH:

2-14

محدوده ORP:

-1500 تا 1500 میلی ولت

دامنه دما:

0 تا 105 درجه سانتیگراد (14 تا 221 درجه فارنهایت)

برجسته کردن:

pH Range 2-14 Differential pH and ORP Sensor,ORP Range -1500 to 1500 mV Water Quality Sensor,Temperature Range 0 to 105°C Cation Differential Sensor

ORP Range -1500 to 1500 mV Water Quality Sensor

Temperature Range 0 to 105°C Cation Differential Sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

بهترین قیمت رو بدست بیار

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

بهترین قیمت رو بدست بیار

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

بهترین قیمت رو بدست بیار

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Differential pH and ORP Sensors

Yokogawa's cation differential pH and ORP sensors are engineered for challenging applications where conventional sensors fail. These specialized sensors excel in diverse environments ranging from brine solutions to electrolysis processes and cheese manufacturing.

Common measurement challenges in these applications typically stem from reference cell issues, including:

High diffusion potentials at the reference junction
Elevated temperatures (common in chlorinated brine processes)
High ground-loop currents

Our differential sensors feature a sealed glass reference system with no liquid junction or process-exposed electrolyte. This innovative design eliminates diffusion potentials and fouling, ensuring stable measurements with minimal maintenance requirements.

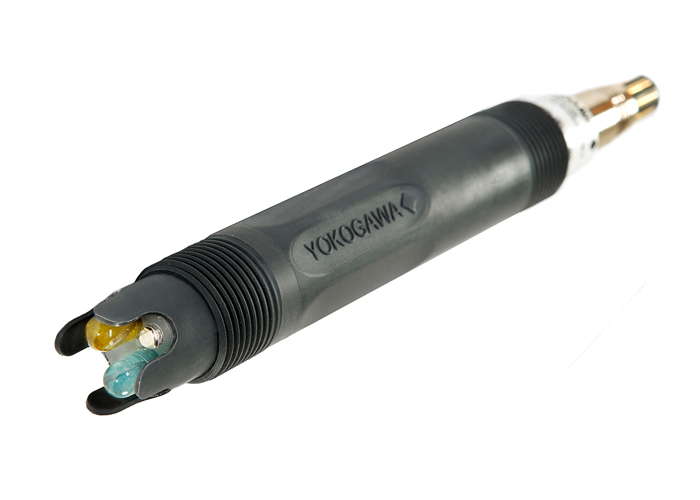

FU20-FTS Differential Sensor

FU20-FTS

The FU20-FTS represents Yokogawa's latest advancement in pH sensor technology, combining the precision of our 12mm differential sensor with the durability of our renowned FU20 wide-body design.

While Yokogawa utilizes proven silver/silver chloride reference cells for cost-effective performance across most applications, our differential technology provides superior longevity in demanding conditions. Conventional sensors require frequent maintenance to prevent reference poisoning, whereas differential sensors offer significant advantages in high-temperature, high-pressure industrial applications.

Key Advantages

No junction - eliminates junction-related failures
Completely sealed design prevents process contamination
Eliminates reference element poisoning
No diaphragm - prevents plugging or coating issues
No electrolyte outflow - prevents depletion problems

FU20-FTS Specifications
Measurement Theory	Cation Reference
pH Range	2-14
ORP Range	-1500 to 1500 mV
Temperature Range	0 to 105°C (14 to 221°F)
Pressure Range	0 to 10 bar (0 to 145 PSIG) @ 25°C 0 to 5 bar (0 to 72 PSIG) @ 105°C
