توضیحات محصول

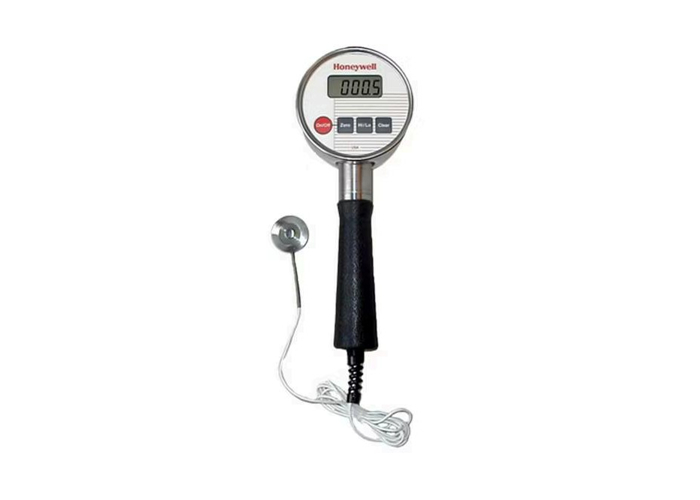

Honeywell Model LC Digital Force Indicator

4½ digit display with ±0.7% FS accuracy. Compression measurement range from 5 lb to 50,000 lb. Features stainless steel diaphragm design for durability.

Overview

The Model LC digital force indicator is a highly portable force measurement device. With its 9V battery supply and compact size, the indicator can easily be carried to remote locations for force measurement calibrations. The unit measures compression forces up to 50,000 lb.

The peak capture feature displays the highest force reading with the push of a button. The remote load sensor location minimizes damage risk to the electronic components. Stainless steel construction provides durability against field mishandling. Optional handles are available for both load cell and gauge.

Features membrane face with raised buttons and tactile feedback for operation. Includes standard zero adjustment and zero offset/tare functions. Calibration parameters are stored on a memory chip to prevent data loss during power interruptions. Internal security blocks unauthorized calibrations.

Key Features

Measurement range to 50,000 lb
Compression force measurement
High/low force capture
Zero offset/tare function
NIST traceable calibration
Customer recalibration capability
Optional handles and panel mounting ring
Optional carrying case
Optional NEMA 4 rating
Selectable engineering units

Industry Applications

Aerospace
Life Sciences
Manufacturing

Part Numbers

Part Number	Description
060-CS41935187511	LCW50KKZY:MODEL LC, 50K LBS
060-CS57543040052	LCW50KKZ4:MODEL LC, 50K LBS
77-01631-11	LCW4KKZA:MODEL LC, 4K LBS
77-01631-15	LCW15KKZA:MODEL LC, 15K LBS
77-01637-01	LCW5KZ:MODEL LC, 5 LBS
77-01637-03	LCW25KZ:MODEL LC, 25 LBS
77-01637-04	LCW50KZ:MODEL LC, 50 LBS
77-01637-05	LCW100KZ:MODEL LC, 100 LBS
77-01637-07	LCW500KZ:MODEL LC, 500 LBS
77-01637-08	LCW1KKZ:MODEL LC, 1K LBS
