Name: Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with 200 ft Cable Length UL Listed and CSA Certified for Hazardous Locations
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: هانیول
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with 200 ft Cable Length UL Listed and CSA Certified for Hazardous Locations

200 ft Cable Length Explosion-proof Switch,UL Listed Cable Pull Safety Limit Switch,CSA Certified Emergency Stop Switch

UL Listed Cable Pull Safety Limit Switch

CSA Certified Emergency Stop Switch

نام تجاری:

CLSX Series

شماره مدل:

هانیول

با ما تماس بگیرید

درخواست نقل قول

Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with 200 ft Cable Length UL Listed and CSA Certified for Hazardous Locations

جزئیات محصول

برجسته کردن:

200 ft Cable Length Explosion-proof Switch,UL Listed Cable Pull Safety Limit Switch,CSA Certified Emergency Stop Switch

UL Listed Cable Pull Safety Limit Switch

CSA Certified Emergency Stop Switch

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

بهترین قیمت رو بدست بیار

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

بهترین قیمت رو بدست بیار

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

بهترین قیمت رو بدست بیار

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

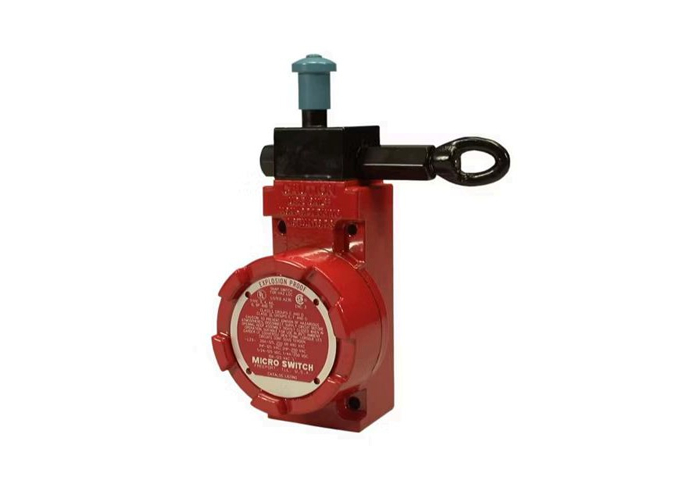

Honeywell CLSX Series Single Head Cable Pull

The CLSX Series Cable Pull Safety Limit Switch is designed to provide emergency stop protection for conveyor lines in hazardous atmospheres. The CLSX Series withstands the pressure of an internal explosion and cools the exploding gases below the kindling temperature of the explosive atmosphere. Flame paths are provided by the cover housing threads and an extended plunger between the switch cavity and head.

GENERAL INFORMATION

Explosion-proof switches are designed specifically for use in hazardous location applications
Flame paths within the switch housing cool exploding gases below kindling temperature of the atmosphere
Complies with NEMA standards: 1, 3, 4, 7, 9, 13. UL listed and CSA certified: Class I, Div 1, Groups B, C, D; Class II, Div 1, Groups E, F, G
A pull on the actuating cable will cause all switch contacts to change state: NC (normally closed) to open and NO (normally open) to close
When cable is released, switch contacts return to their original state

Available Basic Switch Options:

Direct acting switch contact: 1 NC
Direct acting switch contacts: 1 NO 1 NC
Snap action switch contacts: 1 NO 1 NC (NC circuit does not meet requirements for positive break and is not electrically isolated from the NO circuit)

Head may be positioned in any of four directions

Momentary Switch

AUXILIARY CONTACTS

Used for monitoring or signaling, i.e., indicators, pilot lights and alarms.

MAXIMUM ACTUATING CABLE LENGTH

Depending upon variations in ambient temperature, maximum cable length is 200 ft. (60 m).

OTHER AVAILABLE FEATURES

Conduit opening options
Hardware kits and cables for various length installations

PRODUCT MODELS

Part Number	Description
CLSXB4B	LIMIT SWITCH
CLSXB4T	MICRO SWITCH CLSX Series Explosion-proof Cable Pull Safety Switch, 1NC1NO Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
CLSXB8T	MICRO SWITCH CLSX Series Explosion-proof Cable Pull Safety Switch, 2NC Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
