Name: Proline Promass S 100 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass S 100
Price: 2,540.00 USD
Availability: InStock

خونه > محصولات > فلومتر الکترومغناطیسی >

Proline Promass S 100 Coriolis flowmeter

Proline Promass S 100 flowmeter,Coriolis flowmeter with warranty,Electromagnetic flow meter for liquids

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

محل منبع:

سوئیس

نام تجاری:

Endress+Hauser

گواهی:

شماره مدل:

Proline Promass S 100

با ما تماس بگیرید

درخواست نقل قول

Proline Promass S 100 Coriolis flowmeter

جزئیات محصول

محدوده اندازه گیری:

0 تا 70 000 کیلوگرم در ساعت (0 تا 2570 پوند در دقیقه)

Max. حداکثر process pressure فشار فرآیند:

PN 40 کلاس 150 20K

محدوده دمای متوسط:

¥50 تا +150 درجه سانتیگراد ( ¥58 تا +302 درجه فارنهایت)

دامنه دمای محیط:

استاندارد: -40 تا +60 درجه سانتیگراد (40- تا +140 درجه فارنهایت)

مواد محفظه حسگر:

1.4301 (304)، مقاوم در برابر خوردگی

مواد محفظه فرستنده:

فشرده: AlSi10Mg، پوشش داده شده

برجسته کردن:

Proline Promass S 100 flowmeter,Coriolis flowmeter with warranty,Electromagnetic flow meter for liquids

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

محصولات مرتبط

Proline Promass S 300 Coriolis flowmeter

بهترین قیمت رو بدست بیار

Proline Promass P 500 Coriolis flowmeter

بهترین قیمت رو بدست بیار

Proline Promass Q 300 Coriolis flowmeter

بهترین قیمت رو بدست بیار

Proline t-mass F 500 thermal mass flowmeter

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

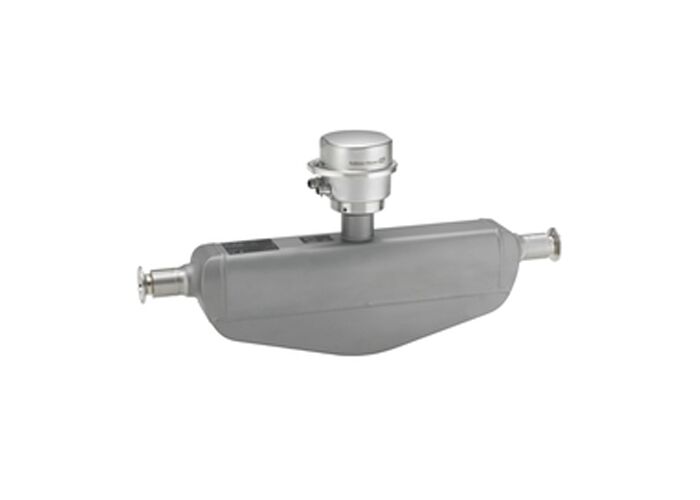

Proline Promass S 100 Coriolis Flowmeter

Easy-to-clean flowmeter with self-drainable single-tube system and an ultra-compact transmitter. Dedicated to applications requiring optimal cleanability under hygienic conditions.

Field of Application

Promass S is at the forefront in hygienic design - Endress+Hauser's industry-optimized measurement solution meets all the hygienic requirements for installation in the Food and Beverage industry. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Designed for applications where space is a premium, Promass S 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.

Key Benefits

Reduced installation costs - fully self-drainable tube design enables compact horizontal mounting
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in/outlet run needs
Space-saving transmitter - full functionality on smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology

Sensor Features

Increased process safety - easily cleanable and fully self-drainable tube design
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in-/outlet run needs
Large range of hygienic process connections
3-A and EHEDG conform
Fast recovery from CIP/SIP

Transmitter Features

Space-saving transmitter - full functionality on the smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology
Robust, ultra-compact transmitter housing
Highest degree of protection: IP69
Local display available

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	DN 8 to 50 (⅜ to 2")
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. Measurement Error	Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Density (liquid): ±0.0005 g/cm³
Measuring Range	0 to 70,000 kg/h (0 to 2,570 lb/min)
Max. Process Pressure	PN 40, Class 150, 20K
Medium Temperature Range	-50 to +150 °C (-58 to +302 °F)
Ambient Temperature Range	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)

Materials & Construction

Wetted Materials	Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)
Sensor Housing Material	1.4301 (304), corrosion resistant
Transmitter Housing Material	Compact: AlSi10Mg, coated Compact/ultra-compact: 1.4301 (304)

Electrical & Communication

Outputs	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	None
Digital Communication	HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power Supply	DC 20 to 30 V
Display/Operation	4-line backlit display available (no local operation) Configuration via web browser and operating tools possible

Approvals & Certifications

Hazardous Area	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product Safety	CE, C-Tick, EAC marking
Metrological	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015
Pressure	PED, CRN
Material	3.1 material
Hygienic	3-A, EHEDG, cGMP
