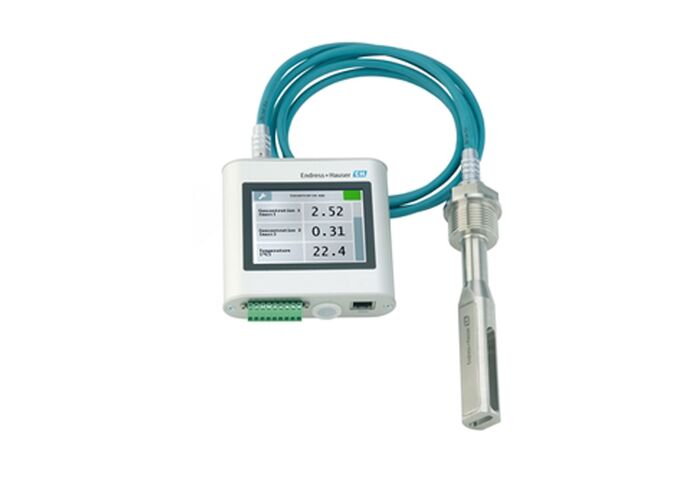

Teqwave I – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave I,Ultrasonic flow meter with warranty,Teqwave I concentration measurement device

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

محل منبع:

سوئیس

نام تجاری:

Endress+Hauser

گواهی:

با ما تماس بگیرید

درخواست نقل قول

Teqwave I – Ultrasonic concentration meter

جزئیات محصول

دمای فرآیند:

0 تا 100 درجه سانتیگراد (32 تا 212 درجه فارنهایت)

فشار روانی:

حداکثر 16 بار در 20 درجه سانتیگراد (232 psi در 68 درجه فارنهایت)

نمایش/عملیات:

نشانگر وضعیت LED صفحه نمایش لمسی رنگی TFT

خروجی ها:

Modbus TCP، رله (AC 50V، DC30V 1A)، خروجی آنالوگ 4-20mA/0 تا 10V

برجسته کردن:

Ultrasonic concentration meter Teqwave I,Ultrasonic flow meter with warranty,Teqwave I concentration measurement device

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Proline Prosonic Flow E 100 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

Proline Prosonic Flow G 300 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

Proline Prosonic Flow G 500 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

Proline Prosonic Flow I 400 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Teqwave I – Ultrasonic Concentration Meter

The Teqwave I insertion measuring device delivers precise real-time liquid analysis for vessels and larger pipes. This advanced ultrasonic concentration meter provides continuous monitoring of multiple parameters simultaneously, reducing operational costs while ensuring product quality.

Key Specifications

Maximum Measurement Error	Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s
Measuring Range	Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³
Process Conditions	Temperature: 0 to 100°C (32 to 212°F) Pressure: max. 16 bar at 20°C (232 psi at 68°F)
Wetted Materials	Stainless steel 1.4571 (316 Ti), others available on request

Primary Benefits

Easy and efficient - Real-time in situ liquid analysis
Full transparency - Constant monitoring of product quality without sampling
Highest process safety - Reliable metering with robust, maintenance-free sensor
Cost-saving - Fewer measuring points due to multivariable measurement
Customized usage - Innovative application concept, expandable for changing measuring tasks
Simplified process control - User-friendly operation and clear status visualization
Local data backup - Integrated storage for measured values up to 7.5 years

Technical Features

Sensor Specifications

Insertion lengths: 180 mm (7 in) or 500 mm (20 in)
Accurate measurement independent of flow profile
Material: Stainless steel 1.4571 (316Ti)
Ingress protection: IP68 (with plugged-in cable)

Transmitter Features

Industry-compliant DIN rail installation
3.5" TFT color touch screen or LED indication
Outputs: 4-20 mA, Modbus TCP, Relay (AC 50V, DC30V 1A), 0 to 10V Analog
Housing material: Anodized aluminum and glass
Ingress protection: IP40

Measurement Capabilities

The Teqwave I simultaneously measures concentration, sound velocity, temperature, acoustic density, and dispersion using advanced ultrasonic technology. Its acoustic waveguide detects even the smallest changes with exceptional precision.

Electrical & Safety

Power Supply	DC 24V ±20%
Certifications	CE, UKCA, RCM
Ex Certification	Non-hazardous area
