Name: 0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: K-2JSJ ， K-JSJ200
Price: 478.00 USD
Availability: InStock

خونه > محصولات > سنسور شتاب سنج >

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability

linear acceleration sensor,triaxial acceleration sensor

triaxial acceleration sensor

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

Model Number:

K-2JSJ ， K-JSJ200

با ما تماس بگیرید

درخواست نقل قول

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability

جزئیات محصول

Type:

K-2JSJ，K-2JSJ-200

Input voltage:

5±0.25 VDC

Input current:

≤2mA

Output Mode:

0.5～4.5 V

Axial direction:

X、Y

Range:

±2g

Bandwidth:

≤ 50 Hz

Sensitivity:

1000±30 mV / g

Resolution:

0.005 g

Nonlinear:

≤ 0.5% Fs

برجسته کردن:

linear acceleration sensor,triaxial acceleration sensor

triaxial acceleration sensor

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1ps

قیمت

قابل مذاکره

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work day

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

محصولات مرتبط

حسگر شتاب سنج Honeywell QA2000-030، کاربردهای هوافضا

بهترین قیمت رو بدست بیار

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

بهترین قیمت رو بدست بیار

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

بهترین قیمت رو بدست بیار

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

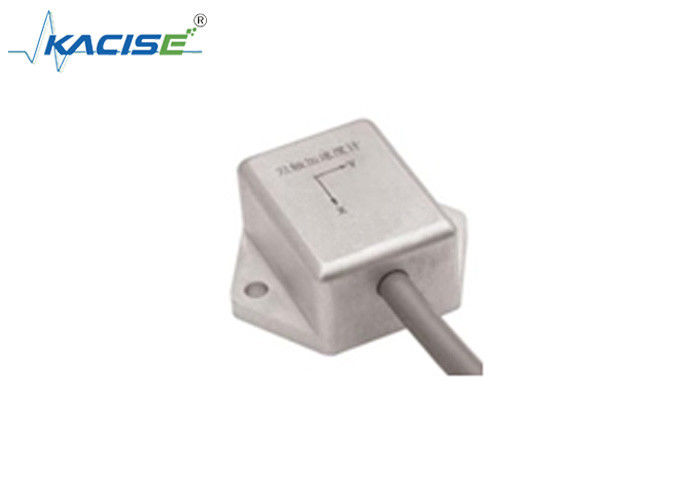

0.5～4.5 V voltage output Biaxial Accelerometer Sensor Module

1. Product Description

An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.

Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability 0

2.Parameter

Type	K-2JSJ	K-2JSJ-200
Electric character
Input voltage	5±0.25 VDC
Input current	≤2mA
Output Mode	0.5～4.5 V
Performance index
Axial direction	X,Y
Range	±2g
Bandwidth	≤ 50 Hz
Sensitivity	1000±30 mV / g
Resolution (°/s)	0.005 g	0.001 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	2.5±0.1 V
Start-up time (ms)	≤1 s
Environmental characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	2000g
Physical Characteristics
Weight (g)	20g

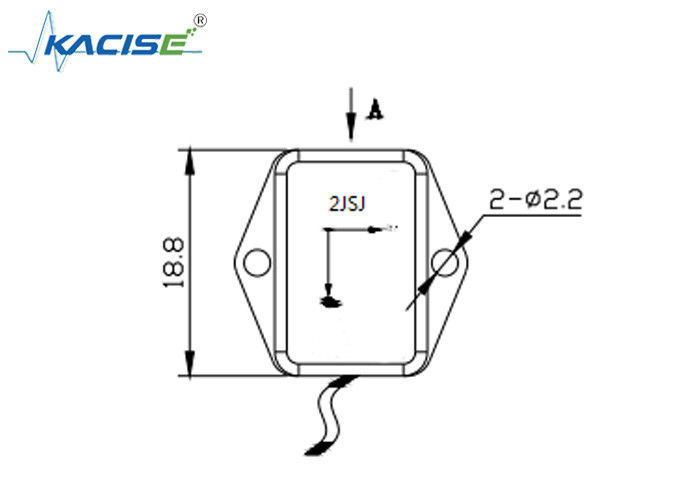

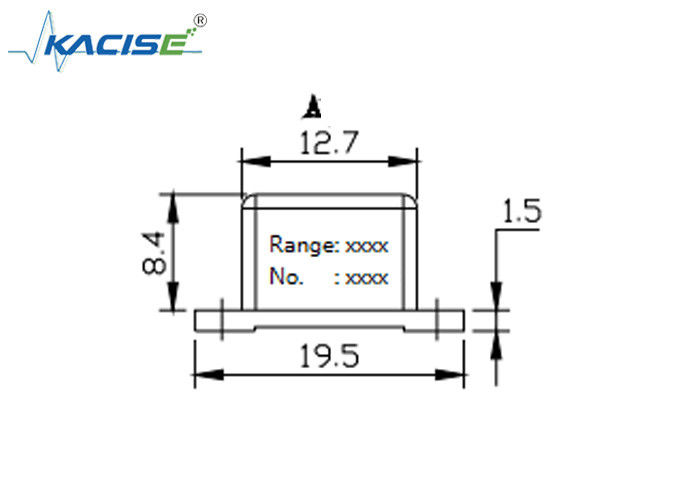

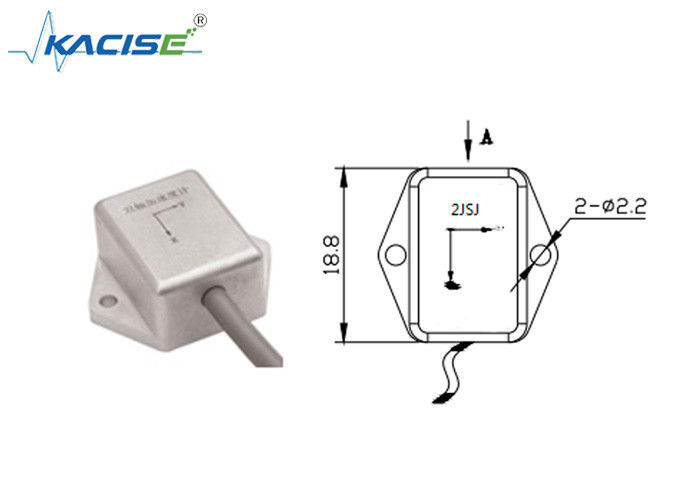

Dimensions	18.8×12.7×8.4 mm

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability 1

3.Feature

Analog voltage output
Small size, light weight
Wide measuring range
impact resistance, vibration performance

4.Application Field

Aircraft Stability control
seismic detection
