Aerial Camera Wire Rope Vibration Isolator GR1 Series Compact Structure

wire rope shock absorber,vibration isolation dampers

vibration isolation dampers

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

گواهی:

ISO9001:2008

Model Number:

GR1

با ما تماس بگیرید

درخواست نقل قول

Aerial Camera Wire Rope Vibration Isolator GR1 Series Compact Structure

جزئیات محصول

Type::

Noise and Attenuation

Material::

Aluminum or Stainless steel

Certificate::

ISO9001:2008

Usage::

Industrial Machinery

Application::

Aerial Camera Gimbal Photography Drone Shooting Shock Vibration Insulation GR1 Series Camera Vibration Isolator

برجسته کردن:

wire rope shock absorber,vibration isolation dampers

vibration isolation dampers

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1ps

قیمت

قابل مذاکره

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work day

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

10000 Pieces per Week

محصولات مرتبط

بهترین قیمت برای جداکننده سیم ضد ارتعاش

بهترین قیمت رو بدست بیار

Industrial Camera Vibration Isolator , Durable Wire Rope Shock Absorber

بهترین قیمت رو بدست بیار

Kacise Metal Wire Rope Vibration Isolator For Industrial Machinery ISO Certification

بهترین قیمت رو بدست بیار

Aluminum Stainless steel Wire Rope Vibration Isolator Noise Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Aerial Camera Gimbal Photography Drone Shooting Shock Vibration Insulation GR1 Series Camera Vibration Isolator

1. Product Description

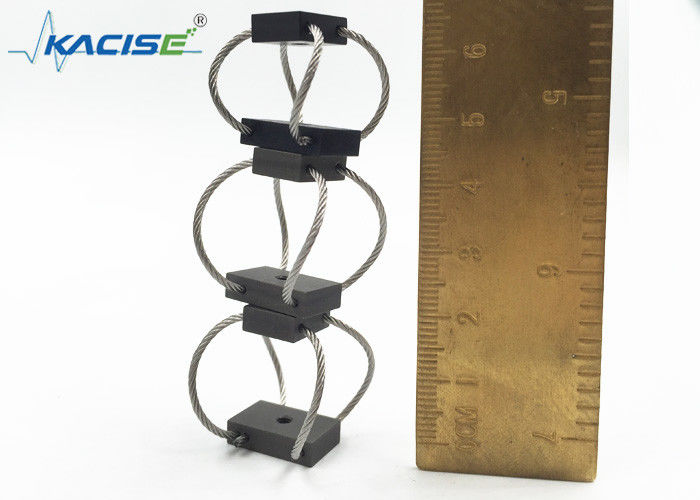

Aerial Camera Wire Rope Vibration Isolator GR1 Series Compact Structure 0

GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”.

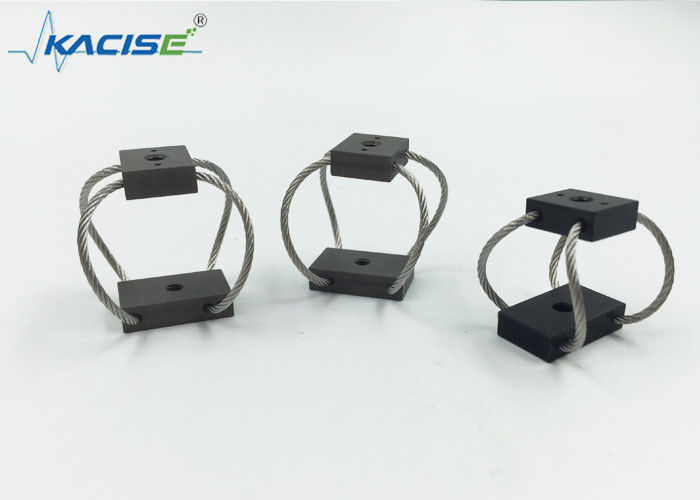

Aerial Camera Wire Rope Vibration Isolator GR1 Series Compact Structure 1

2.Parameters

Dimension Parameter Table

Model	Height ±1.5(mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole(mm)	Thread (mm)	C’sink
GR1-100	17	19	0.05	A,B,C,D,E,S	φ3.3	M3x0.5	90
GR1-200	19	20	0.05
GR1-300	23	23	0.05
GR1-400	26	26	0.05

Table 1 GR1 Series Technical Parameters

Model	Max Static Load(N)	Max Deflection(mm)	Kv (Vibration)(KN/m)	Ka(Shock)(KN/m)
GR1-100	3.3	6.4	3.9	1.9
GR1-200	2.4	8.4	2.8	1.2
GR1-300	1.8	11.9	1.8	0.6
G R1-400	1.3	15	1.3	0.4

Table 2 GR1 45°Compression/Roll Load

Model	Max Static Load(N)	Max Deflection(mm)	Kv (Vibration)(KN/m)	Ka(Shock)(KN/m)
GR1-100	1.6	8.6	2.1	0.8
GR1-200	1.1	10.9	1.5	0.4
GR1-300	0.8	14.7	0.9	0.3
G R1-400	0.5	18.3	0.5	0.1

Table 3 GR1 Shear/Roll Load

Model	Max Static Load(N)	Max Deflection(mm)	Kv (Vibration)(KN/m)	Ka(Shock)(KN/m)
GR1-100	1.1	7.9	0.7	0.7
GR1-200	0.9	9.9	0.4	0.4
GR1-300	0.7	13.2	0.3	0.3
G R1-400	0.5	16.3	0.1	0.1

3.Feature

● Be designed as the same production of France
● Feature with less volume and weight
● With the characters of three dimensional variable stiffness and friction
● Widely be used on the small devices

4.Application Field

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Missile launchers, Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

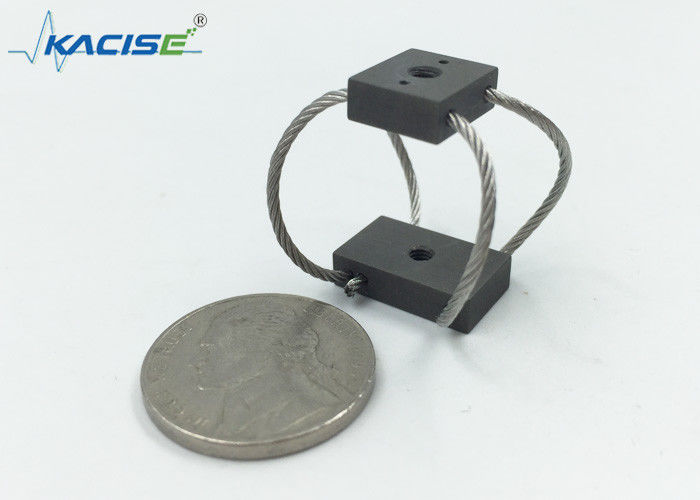

Aerial Camera Wire Rope Vibration Isolator GR1 Series Compact Structure 3
