High Accuracy Digital Pressure Sensor For Water Treatment Farm Equipment

wireless pressure sensor,wireless pressure switch

wireless pressure switch

Place of Origin:

China

نام تجاری:

Kacise

گواهی:

Intrinsically safe mode E, explosion proof type D, CE

Model Number:

GXPS300

با ما تماس بگیرید

درخواست نقل قول

High Accuracy Digital Pressure Sensor For Water Treatment Farm Equipment

جزئیات محصول

Operating temperature:

-40°C~85°C (or -40°C~125°C)

Output::

4~20mA, 0~5V, 0.5~4.5V

Certificate:

Intrinsically safe mode E, explosion proof type D, CE

Electrical performance:

2 line 3line 4line

Pressure range:

−0.1MPa……−0.01MPa~0~0.01MPa……100.0MPa

Accuracy:

±0.25%F.S,±0.5%F.S

برجسته کردن:

wireless pressure sensor,wireless pressure switch

wireless pressure switch

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1 Piece/Pieces

قیمت

قابل مذاکره

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests avai...

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

2000 Piece/Pieces per Week

محصولات مرتبط

Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter

بهترین قیمت رو بدست بیار

Diffused Semiconductor Core Wireless Pressure Transmitter low power consumption Zigbee communication

بهترین قیمت رو بدست بیار

Low Consumption Wireless Pressure Transducer or Wireless Pressure Switch High Precision accuracy ±0.5%

بهترین قیمت رو بدست بیار

ویدیو

Led display,High Accuracy Wireless Pressure Transmitter For Metallurgical Industry，Zigbee wireless communication

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

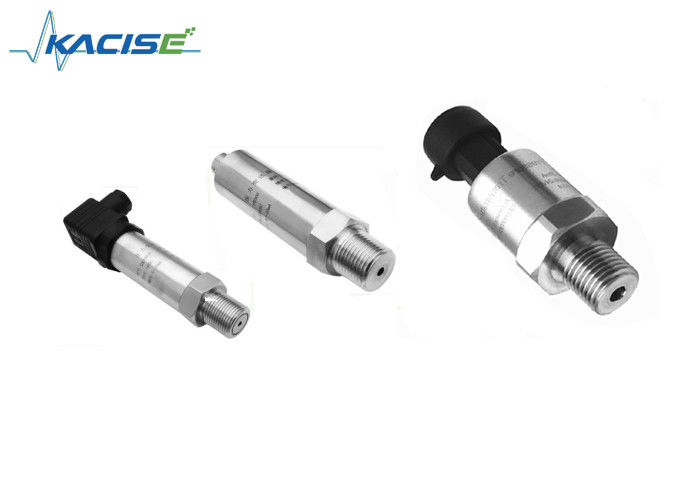

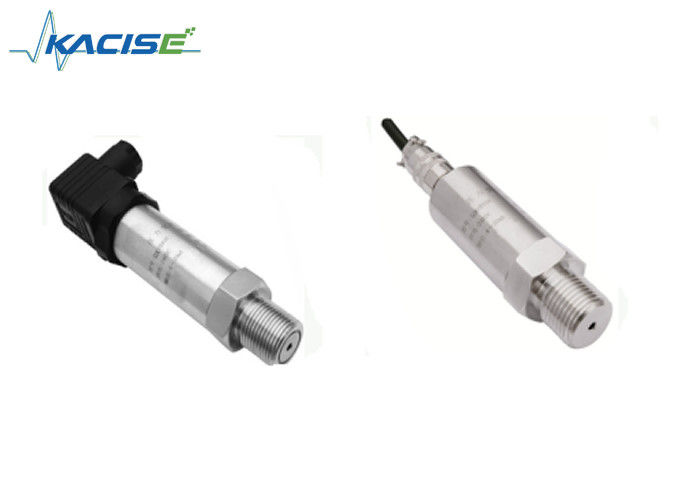

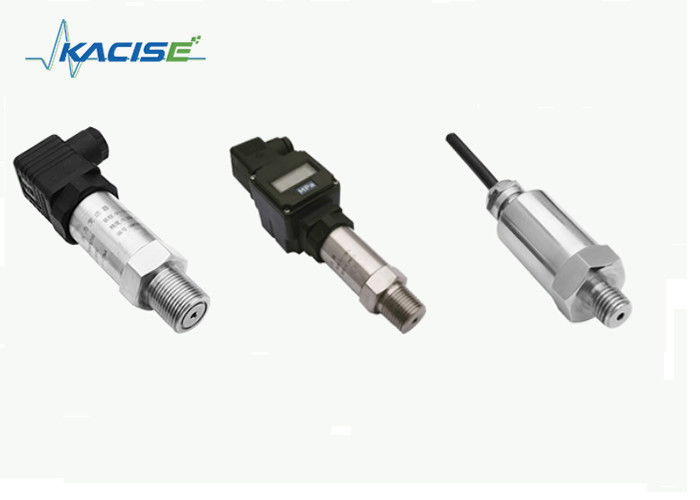

GXPS300 24VDC Pressure Transmitter with Output 4~20mA Pressure0.1-100MPa for Energy and water

Application

Gas-servicing equipment
Refrigerator
Hydraulic control
Farm equipment
Pressure gauge
Automatic inspection system
Energy and water treatment

Instruction

The GXPS300 Series pressure transmitter is a precision, high reliability, high cost,

variable range of industrial products. Widely used in gas, liquid pressure testing, such

as water, oil, mildly corrosive liquids and gases.

Features

Zero-position and scale span
Accept the one-piece, non-standard order
Display indicator are available
Digital compensation for all temp. range available
Multiple pressure range and signal output
Non polarized 2 wire system current output
Intrinsically safe mode explosion proof, CE
Range: -0.1~0MPa, 0~0.03MPa, 0~100MPa
Output: 4~20mA, 0~5V, 0.5~4.5V
Accuracy: 0.25%F.S, 0.5%F.S
Current: 24VDC,non-polarity wire

Electronic interface and signals definition

Parameter

Spec.	Numerical value
Pressure range	−0.1MPa……−0.01MPa~0~0.01MPa……100.0MPa -0.98atm…-0.098atm~0.098atm…986atm PSI: -14.5PSI…-1.45PSI~1.45psi…14500psi BAR : -1BAR….-0.1BAR~0.1bar…1000bar -10000mmH2O…-1000mmH2O~1000mmH2O…10190000mmH2O InchHg: -29inchHg… -2.95inchHg~2.95inchHg…29500inchHg
Overload pressure	1.5 times nominal value
Rupture pressure	3 times nominal value
Accuracy	±0.25%F.S,±0.5%F.S
Stability	Typical value 0.25%F.S, Max. value:0.4%F.S
Operating temperature	-40°C~85°C (or -40°C~125°C)
Compensation temperature	-10°C~70°C
Medium	All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance	2 line	3 line			4 line
Output signal	4~20mA	0~20mA	0~5V	0.5~4.5V	0~20mA
		0~10Vdc	1~5V	0.5~3V	0~5/10Vdc
Power supply	10~30Vdc	11~30Vdc	8~24Vdc	5V Ratio	8/11~30Vdc
Load resistance	(U-10)/0.02(Ω)	Current:(U-12)/0.02(Ω); voltage :>20KΩ
Insulation	>100MΩ @50V
Electric strength	500V@60 second
Electrical connection	DIN43650,protection IP65; air plug GX16-7, IP45; IP68
Pressure tap	M20×1.5,G1/2,G1/4,G1,NPT1/2,NPT1/4,R1/4, (Ht)
Response time	10ms
Certificate	Intrinsically safe mode E, explosion proof type D, CE
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2
