Name: Ultrasonic Non Contact Fluid Level Meter KUM-E Digital Integral Explosion Proof
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUM-E
Price: 120.00 USD
Availability: InStock

خونه > محصولات > اندازه گیری سطح مایعات >

Ultrasonic Non Contact Fluid Level Meter KUM-E Digital Integral Explosion Proof

ultrasonic fluid level sensor,ultrasonic level transmitter

ultrasonic level transmitter

Place of Origin:

CHINA

نام تجاری:

KACISE

گواهی:

Model Number:

KUM-E

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

Range:

5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m

Accuracy:

0.5%, 1%

Output:

4-20mA

Medium:

Liquid, Solid

برجسته کردن:

ultrasonic fluid level sensor,ultrasonic level transmitter

ultrasonic level transmitter

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1PCS

قیمت

USD60-180/pcs

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست مشتریان بسته بندی می

زمان تحویل

5 تا 8 روز کاری

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

قابلیت ارائه

1000 عدد/قطعه در هفته قابل مذاکره

محصولات مرتبط

ویدیو

Rs485 Intelligent Ultrasonic Sensor 4 - 20mA Wide Range

بهترین قیمت رو بدست بیار

ویدیو

New designed ultrasonic pressure transducer

بهترین قیمت رو بدست بیار

ویدیو

2019 NEW upgraded ultrasonic level sensor

بهترین قیمت رو بدست بیار

ویدیو

Low cost intelligent wide range ultrasonic tank water level sensor

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

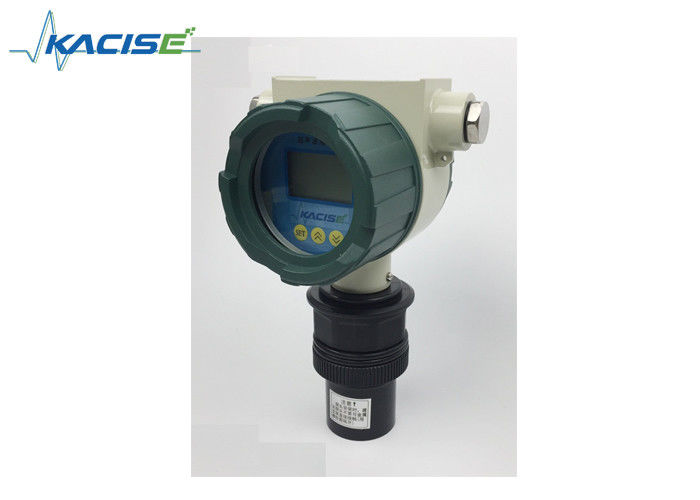

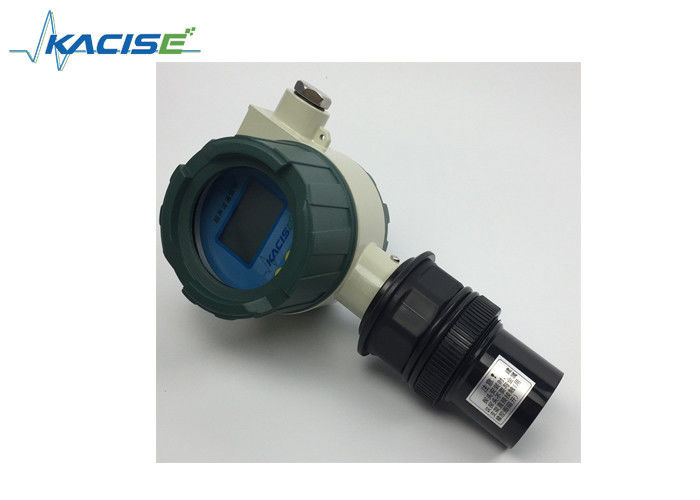

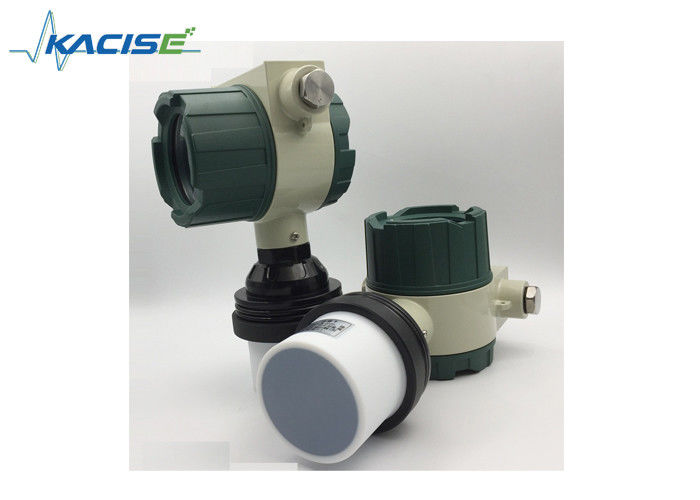

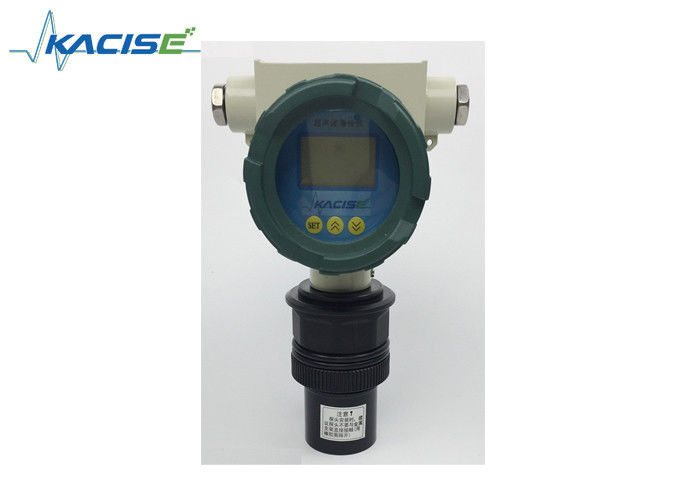

KUM-E Digital Intergral Explosion-Proof Ultrasonic Level Meter Non-Contact Level Sensor

KUM-E ultrasonic explosion-proof level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

1. Technical Features:

Non-contact, can be used in various applications;
High accuracy: 0.5%, 1%
Various types of probes are available to meet the requirements of various applications;
explosion-proof, can be used in harzard environments.

2. Structure:

Ultrasonic Non Contact Fluid Level Meter KUM-E Digital Integral Explosion Proof 0

3. Technical Specifications:

Specs	Value
Pressure Voltage	5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy	0.5%, 1.0%
Display	LCD
Ambient Temperature	Display instrument-20～+60℃ transducer-20～+80℃
Medium	liquid and solid
Analog Output	4-20mA
Digital Output	RS485, RS232 (both are optional)
Power Supply	24Vdc
Protection Grade	Display instrument IP65,transducer IP68

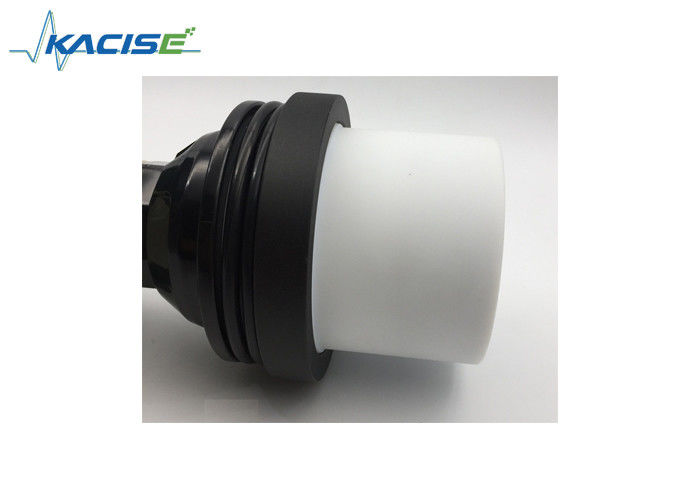

Probe Type	PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

4. Model Selection:

KUM-A
	Measurement Range
	A	5m
	B	10m
	C	15m
	D	20m
	E	30m
	F	40m
	G	50m
	H	60m
		Output Signal
		A	4-20mA
			Accuracy
			0.5	0.5%
			1.0	1%
				Power Supply
				A	24Vdc
				B	11~30Vdc
					Probe Type
					A	PVDF
					B	Aluminum alloy
					C	ABS
					D	Stainless steel 316L
					E	Teflon
					F	Titanium alloy

5. Applications and Installations:

Distance measurement
Depth measurement
