Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive，Operating temperature -40°C~85°C

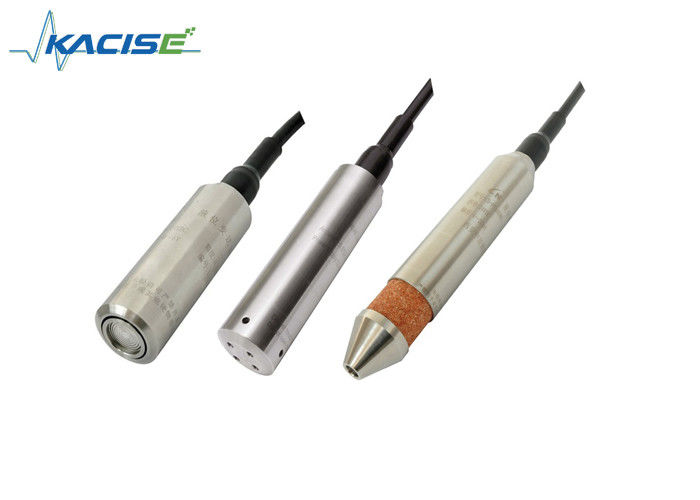

Submersible Liquid level Sensor Stainless Steel case multiple output Low voltage drive

Application

• Deep well level measuring
• Hydrologic measurement for river, lake, sea
• Sewage treatment
• Cloudy level measuring
• Fluid reservoir level measuring
• Water-saving irrigation
• Circulating liquid consumption monitoring
• Diversion project

• Diffused-Silicon oil filled core
• All kinds of structure to satisfy different users
• Easy to use with submersible measuring
• Multiple pressure range and signal output
• Non-polar 2 wire system current output
• Can be used in lightning protection products
• Reinforcing rib for liquid cable available
• Intrinsically safe explosion proof, Isolation explosion proof, CE

Introduction

The KPS400 series level transmitter is a product with a unique structure designed for specialized applications. It boasts high precision, compact size, and excellent stability, making it a reliable choice for various measurement needs. The transmitter is equipped with specially reinforced cables that can withstand corrosive, abrasive, and chemical environments, ensuring its durability and long-term performance even in harsh conditions.

Additionally, the KPS400 series has received CE certification and meets intrinsically safe and explosion-proof standards, guaranteeing its safety and compliance with industry regulations. This makes it suitable for use in hazardous areas where safety is a top priority.

Moreover, the KPS400 series level transmitter can be customized to meet specific requirements for different fluids, providing tailored solutions to match diverse application needs. Whether dealing with water, chemicals, or other challenging substances, this level transmitter is designed to deliver accurate and reliable measurements in a wide range of environments.

Electronic interface and signals definition

Parameter

Ordering information

GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package

1. Type: PS400=universal type, PS400E=intrinsically safe type, PS400D=isolation explosion proof ,PS400L= lighting protection, PS400A=thread mounted, PS400B=Submersible & thread type, PS400-TH=Sediment prevention, PS430=minor diameter, PS400-1=antifouling, PS400-2=High density, PS470=economical, RSV=Reserved
2. Range: 1m…500m= the upper limitation of the range
3. Output: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
5. Power: 24VDC, 11~30Vdc, or customized

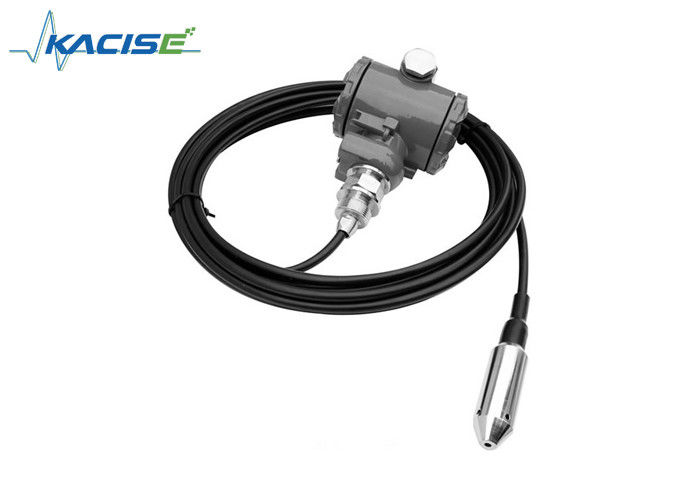

6. Structure: T= submersible type, G=F=split, Ht=customized
7. Cable length: XXm=XX meter 1-150m

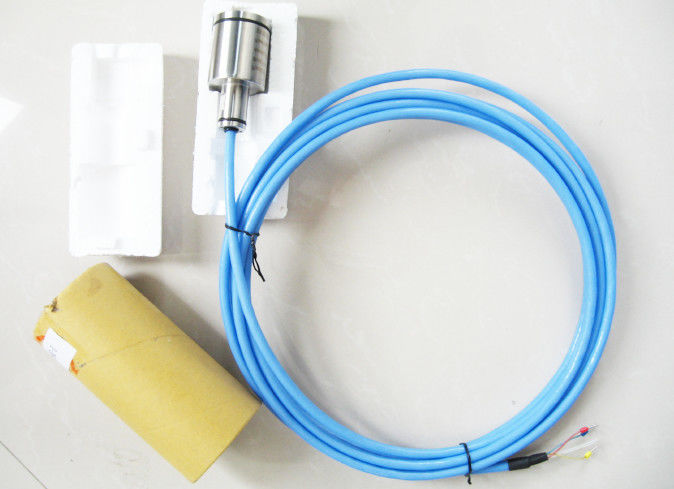

8. Package: Bb, Foam

e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam

PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
