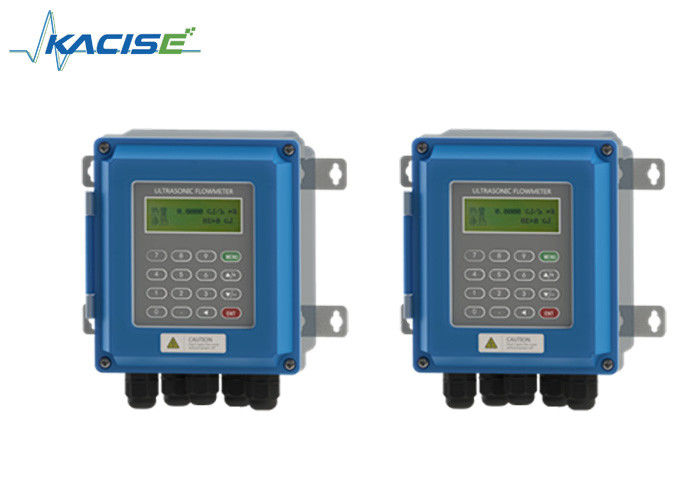

Easy to install flowmeter Ultrasonic pipe flowmeter
Introduction

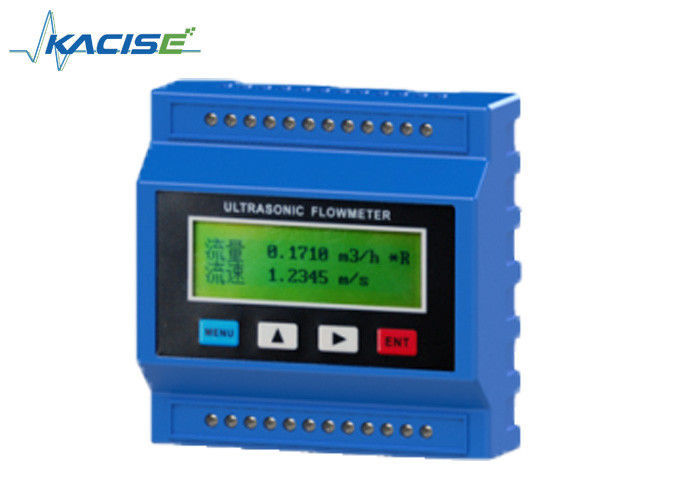

The KUFM2000 flow meter module has small volume, overall function and low costThe KUFM2000 flow meter module has small volume, overall function and low costThe KUFM2000 flow meter module has small volume, overall function and low cost.
KUF2000 series insertion type ultrasonic flow meter consists of the meter and insertion transducer. Install the transducer by opening two holes on the pipeline. No need to cutoff water by using the specialized tool. Transducers are in direct contact with fluid, which make the measurement more steady and reliable.
If connecting Pt100 temperature transducer, it can realize the heat/energy measurement.
Working Condition
| |
Main Unit |
Sensor |
| Protection |
IP30 |
IP68 |
| Humidity |
≤80%RH |
| Temperature |
-20~60℃ |
-30~160℃ |
Basic Parameters
| Accuracy |
±1% |
| Velocity Range |
0~±10m/s, Bi-directional measurement |
| Pipe Size |
DN50~DN6000 |
| Temperature |
- 30~160℃ |
| Type of Liquid |
Single liquid can transmit sound wave. such as water,
sea water, sewage, oil, chemicals , alcohol, etc
|
| Pipe Material |
Carbon steel, stainless steel 304, stainless steel 316.
Flange standard GB/T9119-2000, GB/T81-94
|
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)
1 way OCT pulse output( Pulse width 6 ~ 1000ms)
1 way relay output
|
| Signal Input |
3 way 4-20mA input, achieve to heat measurement by
connecting PT100 platinum resistor.
|
| Interface |
RS485, support MODBUS |
| Data Storage |
SD card regularly store the pre-set results (optional) |
| Power Supply |
DC8~36V or AC10~30V |
Optional Insertion Sensors
Standard Insertion Sensor
Suitable for the pipeline can be directly welded, like carbon steel and stainless.
Pipeline thickness ≤ 2 0
Measuring range: DN50~DN6000
Temperature range:-30~+160℃
Extended Insertion Sensor
Suitable for the pipeline cannot be directly welded, like cement pipe, cast iron, PVC, steel or composite material.
Pipeline thickness ≤ 7 0
Measuring range: DN50~DN6000
Temperature range:-30~+160℃
Parallel Insertion Sensor
Suitable for installation of insufficient space.
Suitable for either weldable or non-weldable pipeline.
Unlimited pipeline thickness, insertion depth=1/3 inner diameter.
Measuring range: DN80~DN6000
Temperature range: -30~+160℃
Optional Fittings
Pipe Clamp
By using pipe clamp, the insertion sensor can be installed without welding. There is no need to cut off water during installation. Especially suitable for cement pipe, cast iron pipe, PVC, copper pipe or composite material.
