6 Bar Water Quality Sensor Four Electrode Digital Conductivity For Aquaculture

6 Bar Water Quality Sensor Four Electrode Digital Conductivity For Aquaculture

water turbidity sensor,oil in water sensor

oil in water sensor

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

گواهی:

certificate of explosion-proof, CE

Model Number:

KBU601

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
Accuracy:
1%
Resolution:
1uS/cm
Response time:
<2 sec
Ip Grade:
IP68
Maximum operating pressure:
6 bar
Temperature Range:
0~50℃
Output:
RS-485, MODBUS protocol
Power supply:
DC 5~12V, <50mA
Temperature Sensor:
NTC
Electrode material:
Nickel
برجسته کردن:

water turbidity sensor,oil in water sensor

,

oil in water sensor

شرایط پرداخت و حمل و نقل
Minimum Order Quantity
0-100
قیمت
قابل مذاکره
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests avai...
Delivery Time
15
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100
محصولات مرتبط
با ما تماس بگیرید
86--17719566736
حالا تماس بگیرید
توضیحات محصول

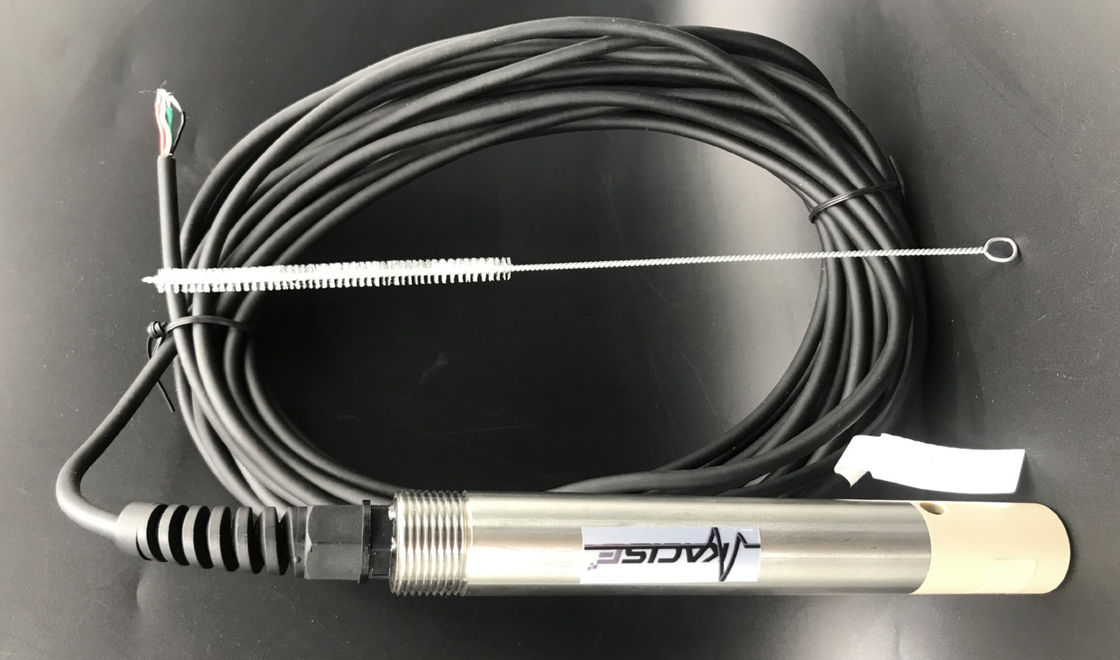

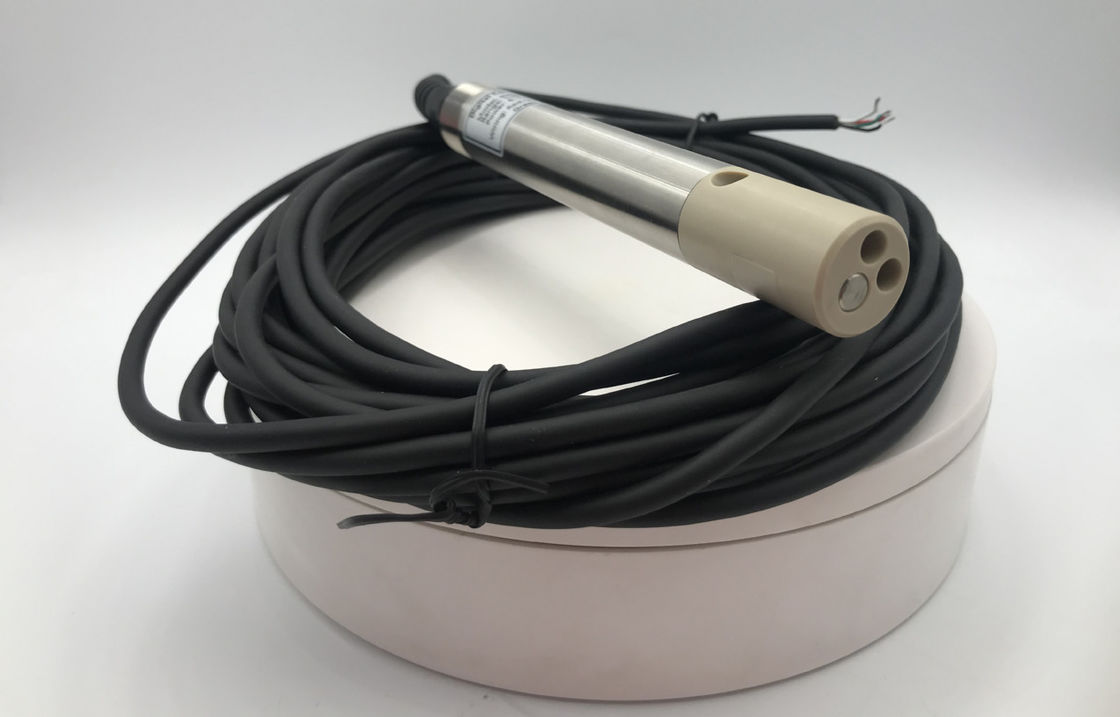

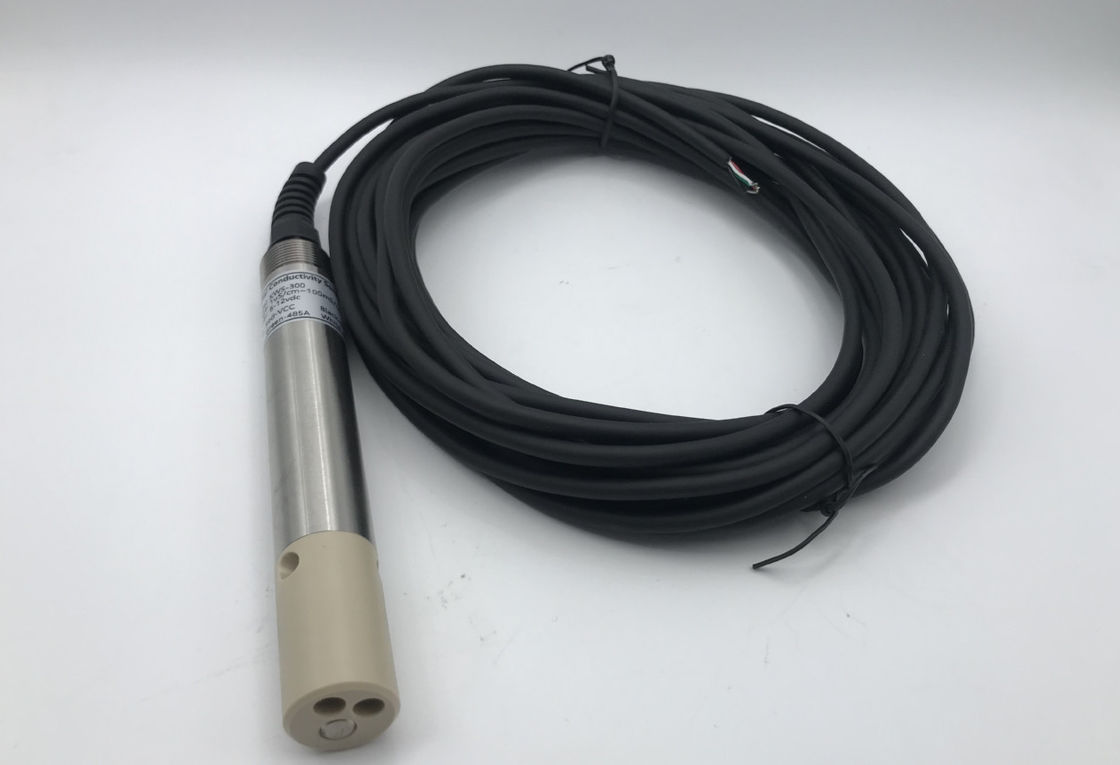

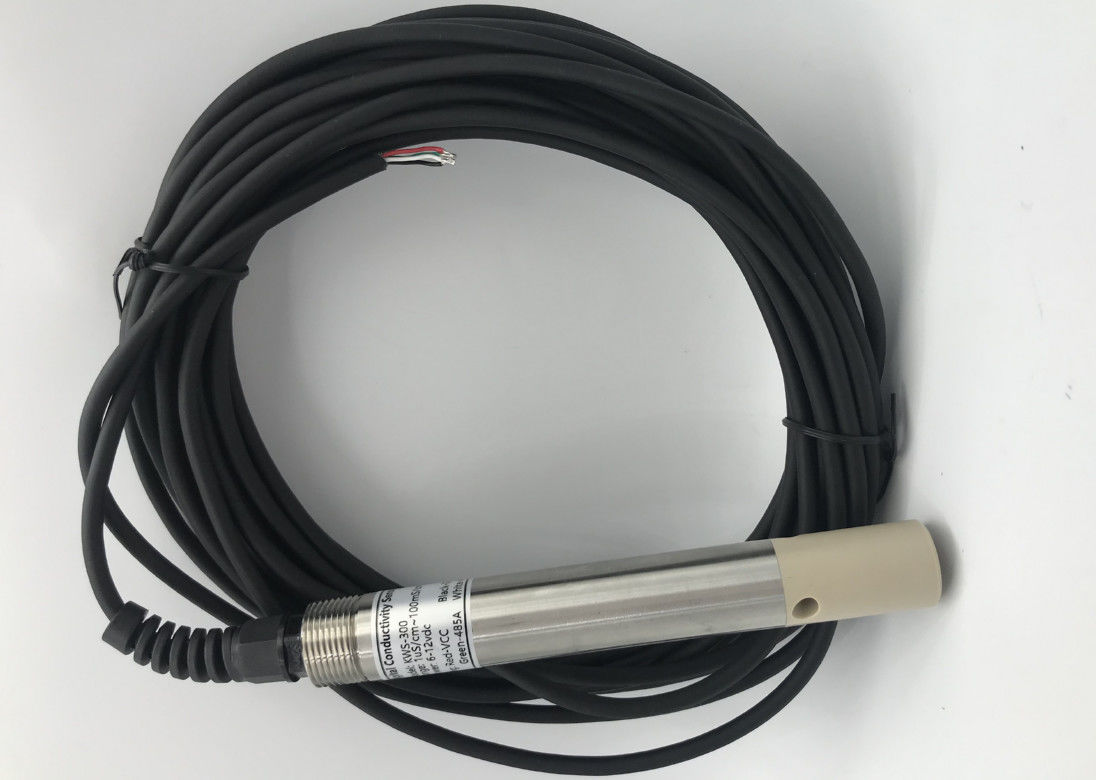

KWS-300 Digital Conductivity Sensor





Introduction



Kacise KWS-300 digital conductivity sensor with new generation of four-electrode / six-electrode technology. Wide range of measurement, automatic switching measurement range, built-in temperature sensor, Real-time temperature compensation. Excellent resistance to pollution, even in harsh environments long-term online monitoring, there will be no polarization. RS485 output, can be networked without controller



Feature



Digital sensor, RS485 output, support Modbus
Wide measuring range, automatic switching measurement range
Built-in temperature sensor, real-time temperature compensation
Four-electrode / six-electrode technology, no polarization




6 Bar Water Quality Sensor Four Electrode Digital Conductivity For Aquaculture 0



Specification



Item Four-electrode conductivity sensor Six-electrode condutivity sensor
Model KWS-301 KWS-302 KWS-303
Measuring Range 1uS/cm~200mS/cm 1uS/cm~100mS/cm 1uS/cm~100 mS/cm
Accuracy 1%
Resolution 1uS/cm
Response time <2 sec
Ip Grade IP68
Maximum operating pressure 6 bar
Temperature Range 0~50℃
Output RS-485, MODBUS protocol
Power Supply DC 5~12V, <50mA
Temperature Sensor NTC
Electrode material Nickel
Wetted Part Material PEEK
Sensor size Φ 22*146.5 mm Φ 22*140 mm
Cable Length Standard 10m, customizable 5m, 15m and 30m cables
Calibration Method One/Two-point calibration
