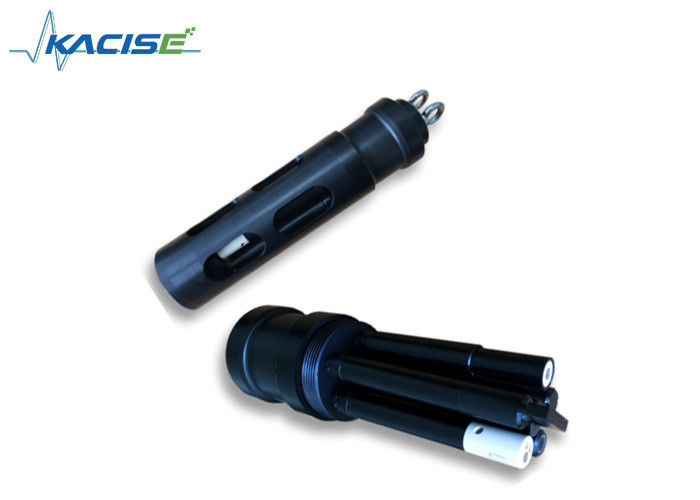

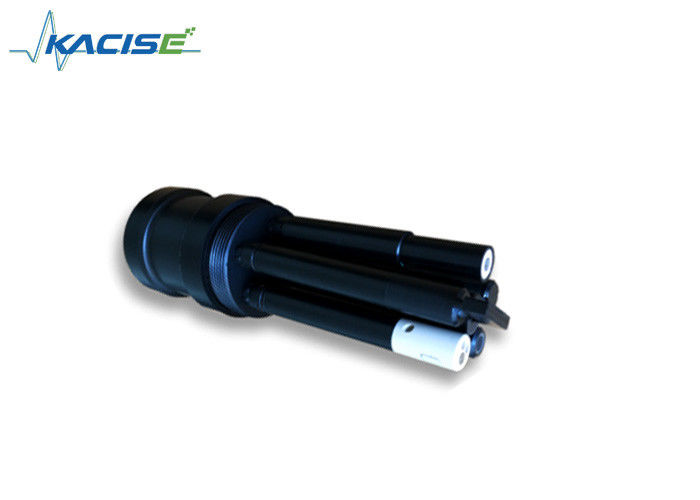

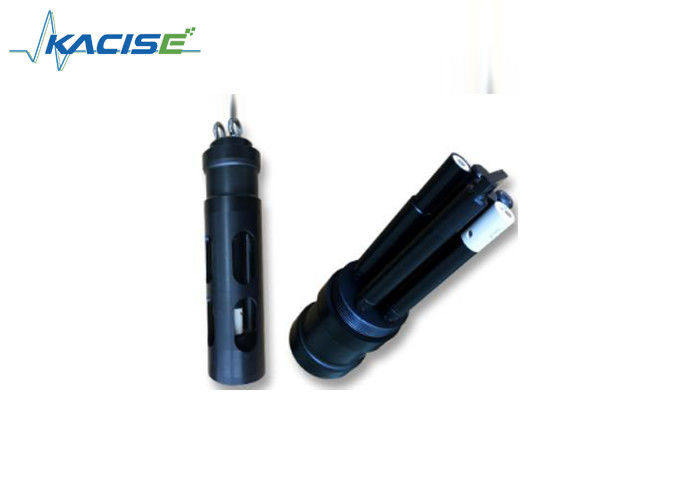

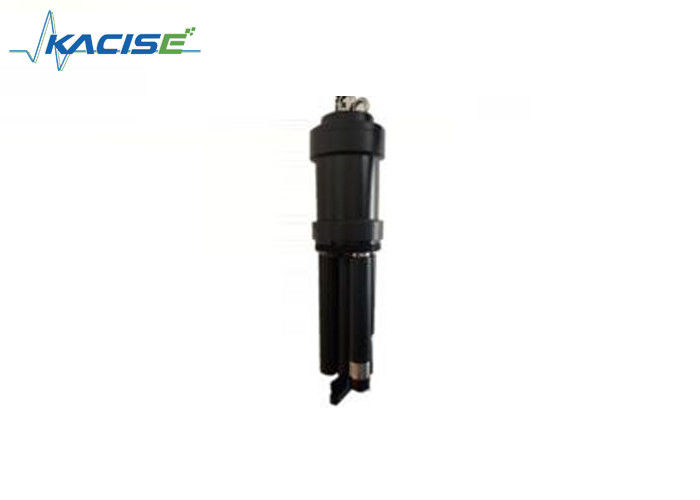

Intelligent Water Quality Sensor Fiber Optic Chlorophyll Sensor RS485 Transmission

Kws-400 Online Intelligent Water Quality Sensor Fiber Optic Chlorophyll Sensor RS485 Transmission

1. Applications

The fiber chlorophyll sensor uses the principle of fluorescence to illuminate the water body through a high-energy LED light source according to the spectral absorption characteristics of chlorophyll a, to stimulate the water body chlorophyll a to generate fluorescence at a specific wavelength and measure the concentration of chlorophyll a in the water. The sensor fiber structure has excellent repeatability and stability and is not susceptible to ambient light. Eliminate air bubbles with an automatic cleaning brush and reduce the impact of contamination on the measurement, long-term online use, longer maintenance intervals and better stability

2. Feature

Digital sensor, RS-485 output, support MODBUS

With automatic cleaning brush to prevent contamination and eliminate air bubbles

Direct measurement is easier than traditional analysis methods

Continuous online monitoring and real-time control of water quality

Integrated sensor field application example

3.Technical Specifications
