Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength

جزئیات محصول

Function:

Return Air

Working Temperature:

-55~120

Relative Product:

Backdraft Damper

Model:

JGX

Shock Rsistance:

20g/11ms

name:

wire rope shock absorber

برجسته کردن:

wire rope shock absorber,cable shock absorber

cable shock absorber

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

1000 Pieces per Week

محصولات مرتبط

بهترین قیمت برای جداکننده سیم ضد ارتعاش

بهترین قیمت رو بدست بیار

Industrial Camera Vibration Isolator , Durable Wire Rope Shock Absorber

بهترین قیمت رو بدست بیار

Kacise Metal Wire Rope Vibration Isolator For Industrial Machinery ISO Certification

بهترین قیمت رو بدست بیار

Aluminum Stainless steel Wire Rope Vibration Isolator Noise Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

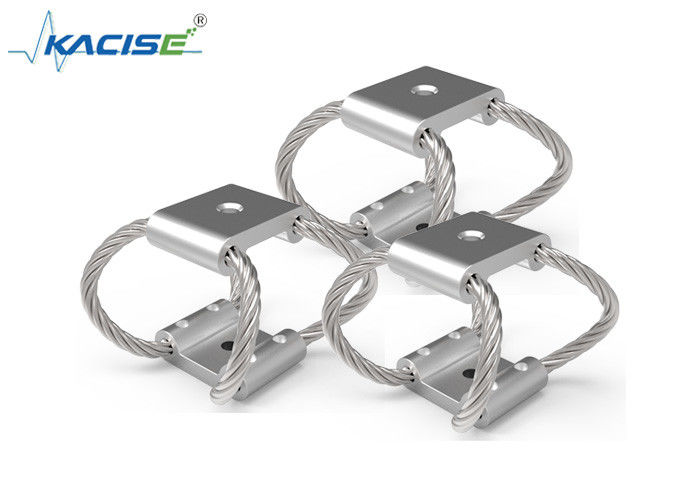

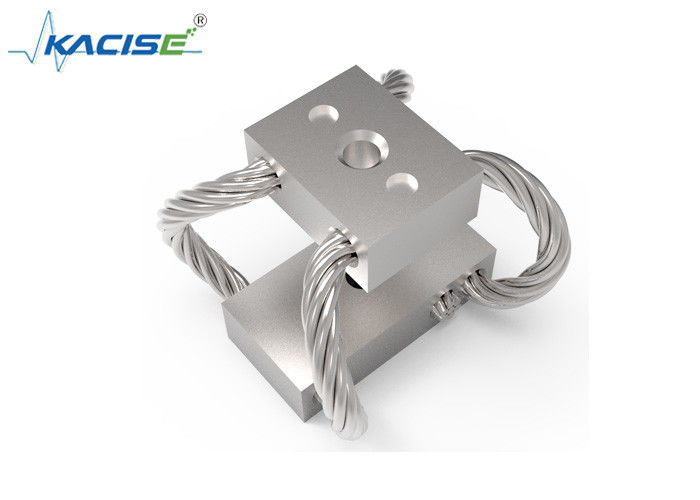

Wire Rope Base Isolator Cable Mount Helical Loop Vibration Shock electronics medical equipment avionics helical cable

Product Description

The wire rope isolator is constructed by winding wire rope into a spiral shape and securing it between two metal plates positioned along the nut. Its stiffness and damping characteristics are determined by factors such as the diameter of the wire rope, the number of strands, the number of turns, and the winding method and size. This isolator represents a novel type of vibration isolator featuring nonlinear characteristics and dry friction damping.

Utilizing a steel wire rope as the elastic element, it introduces noticeable hysteresis characteristics. The energy dissipation in this isolator results from the friction, extrusion, and slip occurring between the steel wires. The GR3 variant of this isolator exhibits properties like corrosion resistance, impact resistance, and tolerance to high and low temperatures. In photography, GR3 is primarily applied to reduce the impact of sudden vibrations on photographic equipment, aiming to maintain clear imaging and achieve uninterrupted photography.

Options

Iridited aluminum bars are standard; however, other materials and finishes can be used.
Variations in cable configuration are available if the standard is not suitable.

Size Chart

Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength 0

Applications:

Helical isolators protect a broad range of loads:

Very fragile (electronic equipment, computer hardware, optical devices).
Highly substantial (heavy engines, machinery––during transit or while in operation, even in a moving vehicle).

See table below for more details.

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance free,Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance free, Corrosive environments
Ordnance Equipment	Missile launcher, Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance free, No outgassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance free, Temperature extremes, Corrosive environments

Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength 1
