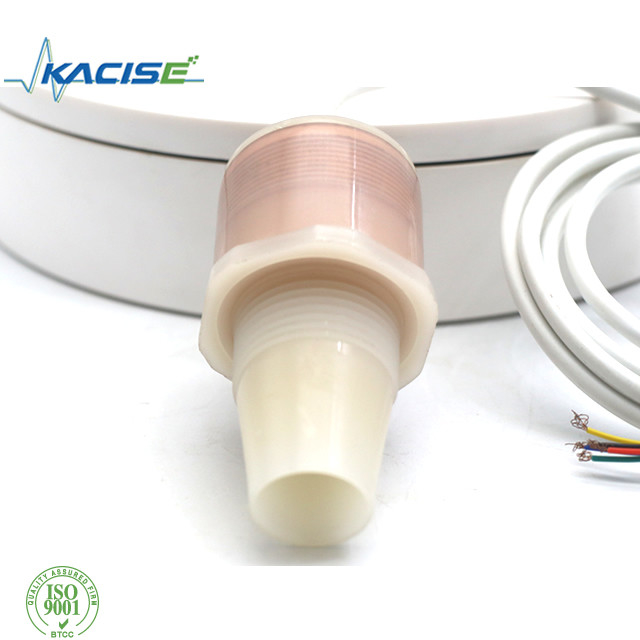

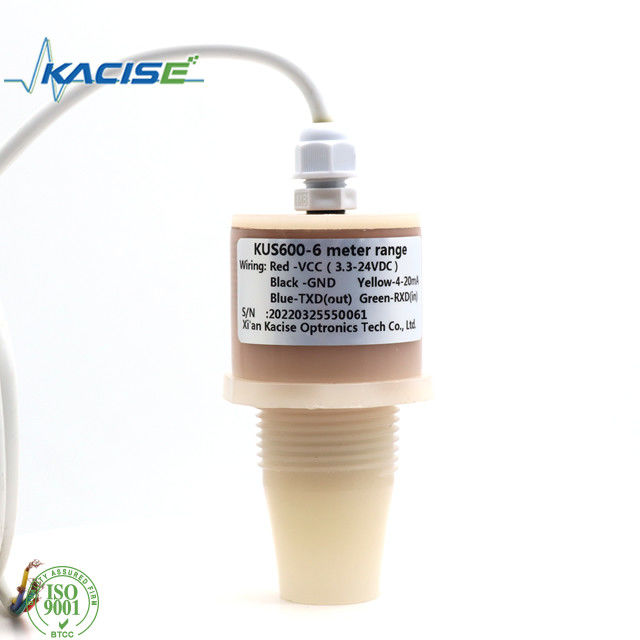

IP67 Ultrasonic Transducer Sensor
Product parameters
1, Sensing range:0.6m-5m
2, Unusable area:0 ... 0.6m, Small blind area 0…0.3m can be customized；
3, Ranging accuracy≤1 % F.S.；
4, Ranging resolution:1mm；
5, Working current:
≤ 45 mA (fastest measurement speed) Typical power consumption ≤ 10mA；
6, Analog output: 0-10V. 0-3V 0-5V /4-20mA/NPN/PNP；
7, Digital output:RS485/TTL；
8,Power supply:3.3V-24V ripple 10 %SS；
9, Ambient temperature:-40…85℃ (233...358K)；
10, Protection class:IP67；
11, Temperature Compensation: Yes；
12, Electrical connection: 5-core cable (analog output), 6-core cable (switch output)；
13, Shell material:PVC /PVDF/PTFE；
14, Power consumption: the sleep state is less than 0.3mA, the wave state is less than 20mA, and the detection state is less than 5mA.
technical parameters
| Enter |
| Measured variable |
Liquid level, material level |
| Maximum measuring range |
20-15000mm(Can be customized according to needs) |
| Output |
| Comprehensive accuracy |
±1%FS/ 0.15℃ |
| Temperature compensation |
-10℃～70℃ |
| Vibration influence |
< ± 0.05％/g,All directions500Hz (conform to IEC 68 -2-64) |
|
Rated conditions
Environmental conditions
|
| Ambient temperature |
-25～+85℃ |
| Storage temperature |
-40～+85℃ |
| Protection level |
IP65 ,conform to EN 60529 |
| Electromagnetic Compatibility |
EN 61326/A2 appendix A (2001 ) |
| Display and control |
| show |
SFTN LCD, white backlight, 5-digit display. |
| Limit value |
Free setting |
| parameter settings |
Use 3 buttons |
| unit |
mm, the default unit is m. |
| weight |
About 1.35kg |
| Non-liquid parts material |
| Connector |
1NPT, stainless steel, length 20mm (materials and joint specifications can be customized according to customer requirements). |
| Electrical connections |
Make the waterproof connector and air hole cable entrance comply with EN 175301 -803A standard |
| Measurement period |
≤ 100ms |
Selection reminder: For special requirements, please contact our company and indicate in the order.
Precautions:
1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
