Name: High Temperature Quartz Flexible Accelerometer Module Analog output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSJR-5
Price: 478.00 USD
Availability: InStock

خونه > محصولات > سنسور شتاب سنج >

High Temperature Quartz Flexible Accelerometer Module Analog output

Flexible Accelerometer Module,Quartz Accelerometer Module,High Temperature Accelerometer Module

Quartz Accelerometer Module

High Temperature Accelerometer Module

Place of Origin:

China

نام تجاری:

Kacise

Model Number:

KSJR-5

با ما تماس بگیرید

درخواست نقل قول

High Temperature Quartz Flexible Accelerometer Module Analog output

جزئیات محصول

Input Range:

±30g

Resolution/Threshold:

≤30ug

K0/Bias K0:

≤±20mg

Bias K0 Temperature Sensitivity:

≤±80μg/℃

maxim over load:

40%

Intrinsic Noise:

≤8.0mV

Power supply:

±12~±15v

Power consumption:

≤20mA

Working temperature range:

-55~+150(175)℃

Resonance Frequency:

350~800Hz

برجسته کردن:

Flexible Accelerometer Module,Quartz Accelerometer Module,High Temperature Accelerometer Module

Quartz Accelerometer Module

High Temperature Accelerometer Module

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

Packaging Details

≤25Gram,Φ18.2*22mm

Supply Ability

100+

محصولات مرتبط

حسگر شتاب سنج Honeywell QA2000-030، کاربردهای هوافضا

بهترین قیمت رو بدست بیار

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

بهترین قیمت رو بدست بیار

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

بهترین قیمت رو بدست بیار

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

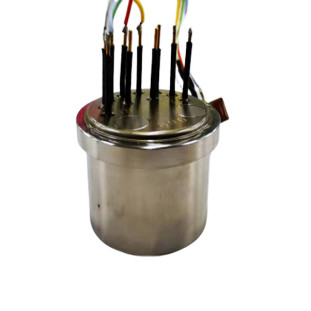

KSJR-5 High temperature Quartz flexible Accelerometer

Feature

☆ Tactical navigation grade performance

☆ High value

☆ Environmentally rugged

☆ Analog output

☆ Compact design

☆ Built-in test

☆ Field-adjustable range

Application
☆ Deep well level measuring

☆ Automotive test instrumentation

☆ Braking system deceleration

☆ Bridge and building sway and tilt monitoring

☆ Industrial and robotic control

☆ Land vehicle navigation

☆ Subway and train ride comfort control

☆ Offshore drilling platform motion monitoring

Introduction

For an economic package, Kacise produces the KSJR-4 Quartz flexible Accelerometer for industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring. The KSJR-4 features a etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability. The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

Parameter

			KSJRA-5A
number	parameters	unit	figure
1	Input Range	g	±30
2	Resolution/Threshold	ug	≤30
3	Bias K0	mg	≤±20
4	Bias K0 4-hours Composite Repeatability	μg	≤30
5	1g 4-hour Composite Repeatability	PPM	≤30
6	Bias K0 1-month Composite Repeatability	μg	≤150
7	Bias K0 Temperature Sensitivity	μg/℃	≤±80
8	Scale Factor K1	mA/g	2.1±0.3
9	Scale Factor K1 1-month Composite Repeatability	ppm	≤150
10	Scale Factor K1 Temperature Sensitivity	ug/℃	≤±100
11	Second order nonlinear coefficient(K2/K1)	μg/g2	≤40
12	maxim over load	%	40
13	Intrinsic Noise	mV	≤8.0
14	Power supply	v	±12~±15
15	Power consumption	mA	≤20
16	Working temperature range	℃	-55~+150(175)
17	Storage temperature range	℃	-60~+180
18	Shock tolerance	g	1000g.8ms.1/2sin
19	Vibration Peak Sine	g	25(20~2000Hz)
20	Resonance Frequency	Hz	350~800
21	Bandwidth	Hz	≤2500
22	Weight	Gram	≤25
23	Dimensions	mm	Φ18.2*22
24	Axis Misalignment	Second of arc	≤\|100\|”
25	Insulation characteristic	MΩ	≥100MΩ

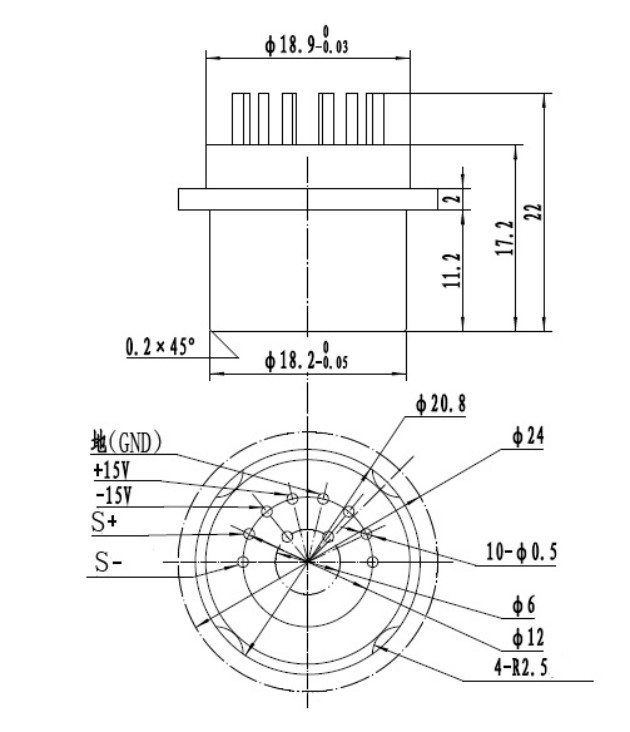

Electronic interface and signals definition
