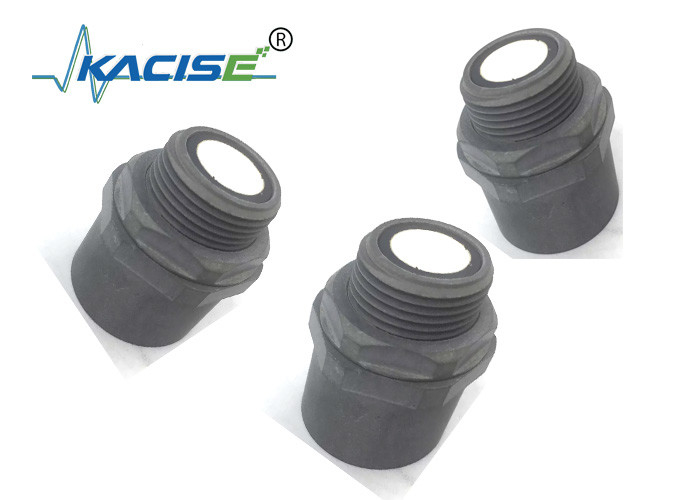

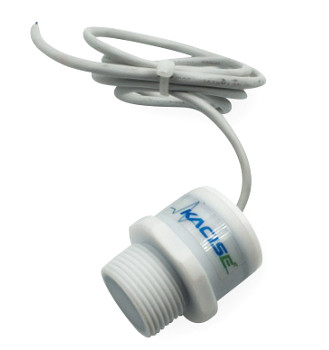

Name: KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.10 USD
Availability: InStock

خونه > محصولات > حسگر انتقال دهنده فوق صوتی >

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof

Water Ultrasonic Level Sensor PVDF,KUS550 Ultrasonic Tank Level Meter,Waterproof Preservative Tank Level Meter

KUS550 Ultrasonic Tank Level Meter

Waterproof Preservative Tank Level Meter

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

گواهی:

certificate of explosion-proof, CE

Model Number:

KUS550

با ما تماس بگیرید

درخواست نقل قول

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof

جزئیات محصول

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

inside/outside/fix temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, etc, customizable)

IP grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

برجسته کردن:

Water Ultrasonic Level Sensor PVDF,KUS550 Ultrasonic Tank Level Meter,Waterproof Preservative Tank Level Meter

KUS550 Ultrasonic Tank Level Meter

Waterproof Preservative Tank Level Meter

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1pcs

قیمت

قابل مذاکره

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

محصولات مرتبط

KUS-W80 سنسور فاصله زیر آب 200kHz فرکانس گیرنده و جریان کم بدون بار برای اندازه گیری فاصله زیر آب

بهترین قیمت رو بدست بیار

KUS-W50 سنسور فاصله زیر آب محافظت قطب معکوس و 0.6 متر منطقه کور برای نظارت بی سیم زیر آب

بهترین قیمت رو بدست بیار

KWD200 سنسور ارتباطات تحت آب با استفاده از امواج فوق صوتی

بهترین قیمت رو بدست بیار

دقت بالا KWD400 360 درجه اسکن سونار مصرف برق ≤12W

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Anti Corrosion Chemical Liquid Measurement / NPT PTFE Ultrasonic Level Sensor for monitoring liquid levels and barns

KUS550 Ultrasonic Distance Sensor

1. Product features:

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof 0

2. Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof 1

3. Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP67
shell material	PVC /PVDF/PTFE/ABS

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof 2

4. Dimensions

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof 3

5. Wiring

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof 4

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof 5

6. Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation
