Name: 3m Intelligent Ultrasonic Transducer Sensor 5V RS485 Output PTFE Water Level Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.10 USD
Availability: InStock

خونه > محصولات > حسگر انتقال دهنده فوق صوتی >

3m Intelligent Ultrasonic Transducer Sensor 5V RS485 Output PTFE Water Level Sensor

5V Water Ultrasonic Transducer Sensor,RS485 Output PTFE Water Level Sensor,Sewage Water Level Sensor

RS485 Output PTFE Water Level Sensor

Sewage Water Level Sensor

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

گواهی:

certificate of explosion-proof, CE

Model Number:

KUS550

با ما تماس بگیرید

درخواست نقل قول

3m Intelligent Ultrasonic Transducer Sensor 5V RS485 Output PTFE Water Level Sensor

جزئیات محصول

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

inside/outside/fix temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, etc, customizable)

IP grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Usage:

Sewage Pool swimming pool

برجسته کردن:

5V Water Ultrasonic Transducer Sensor,RS485 Output PTFE Water Level Sensor,Sewage Water Level Sensor

RS485 Output PTFE Water Level Sensor

Sewage Water Level Sensor

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1pcs

قیمت

قابل مذاکره

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

10000 Pieces per month

محصولات مرتبط

86--17719566736

حالا تماس بگیرید

توضیحات محصول

KUS550 Ultrasonic Distance Sensor -3m

1. Product features:

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

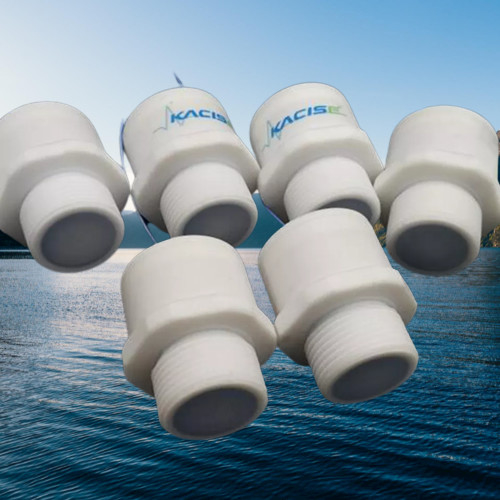

3m Intelligent Ultrasonic Transducer Sensor 5V RS485 Output PTFE Water Level Sensor 0

2. Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.

3. Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP67
shell material	PVC /PVDF/PTFE/ABS

4. Dimensions

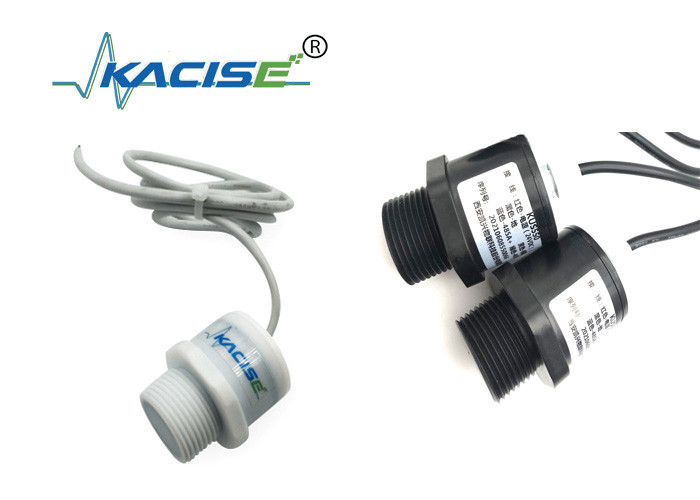

3m Intelligent Ultrasonic Transducer Sensor 5V RS485 Output PTFE Water Level Sensor 1

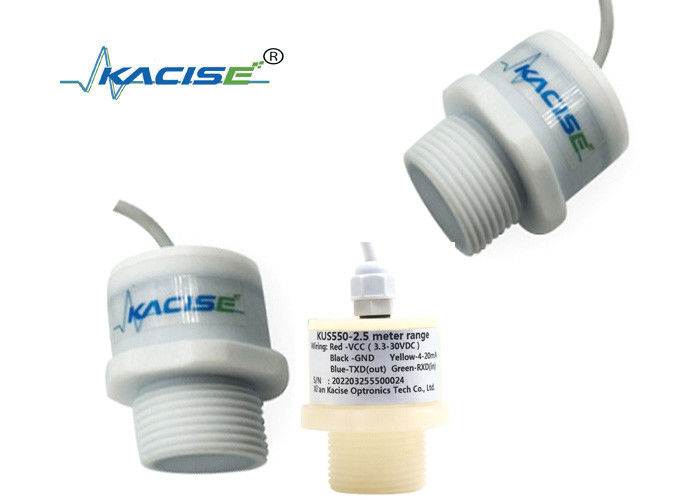

5. Wiring

3m Intelligent Ultrasonic Transducer Sensor 5V RS485 Output PTFE Water Level Sensor 2

3m Intelligent Ultrasonic Transducer Sensor 5V RS485 Output PTFE Water Level Sensor 3
