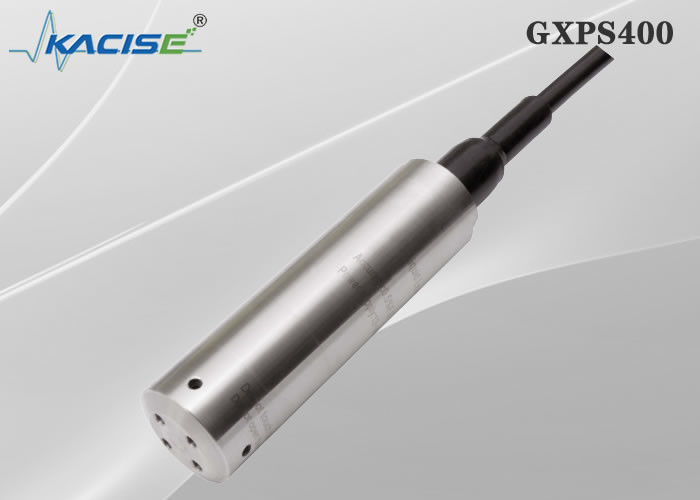

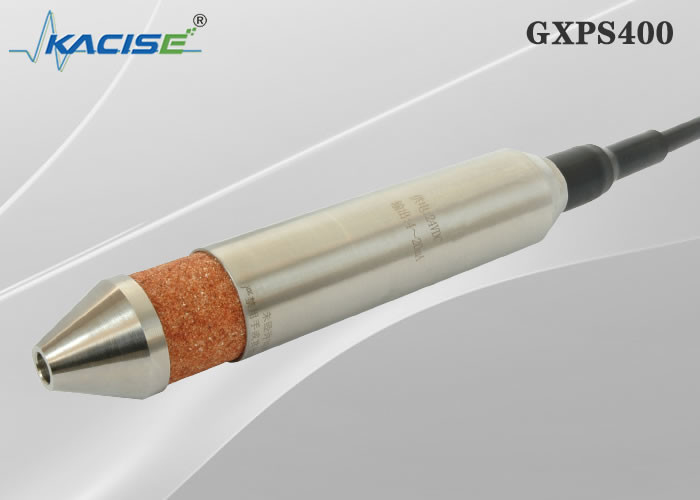

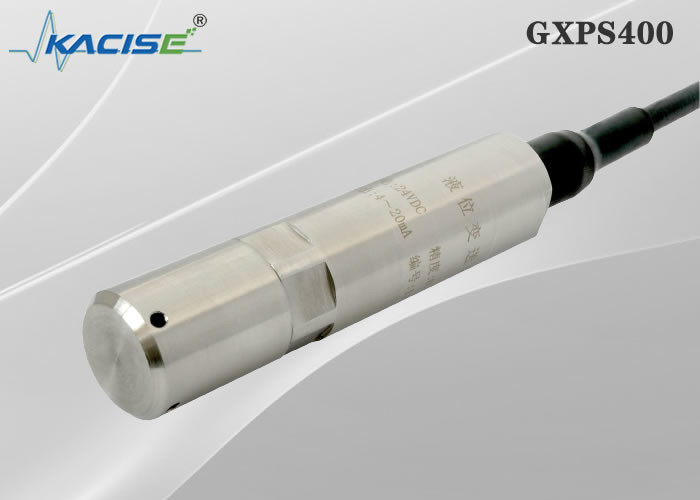

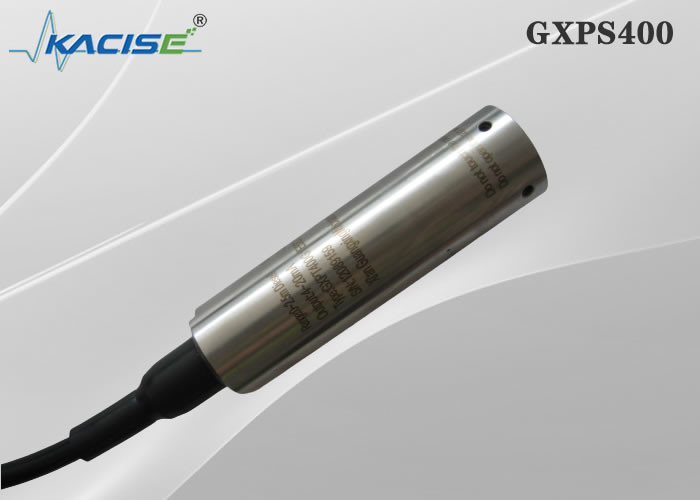

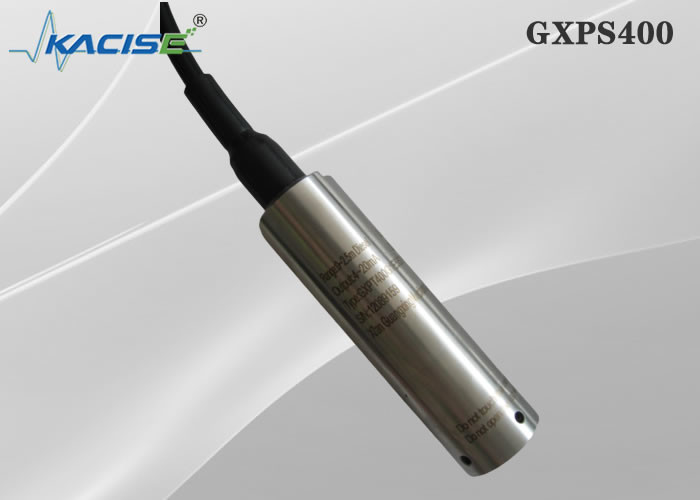

GXPS400 Submersible High Accuracy Deep Well Level Sensor For Water / Oil / Urea

GXPS400 Series Level Transmitter
1. Feature
☆ Diffused-Silicon oil filled core
☆ All kinds of structure to satisfy different users
☆ Easy to use with submersible measuring
☆ Multiple pressure range and signal output
☆ Non-polar 2 wire system current output
☆ Can be used in lightning protection products
☆ Reinforcing rib for liquid cable available
2. Application
☆ Deep well level measuring
☆ Hydrologic measurement for river, lake, sea
☆ Sewage treatment
☆ Cloudy level measuring
☆ Fluid reservoir level measuring
☆ Water-saving irrigation
☆ Circulating liquid consumption monitoring
☆ Diversion project
3. Introduction
GXPS400 series level transmitter is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment.
Customized solutions for various fluids can be supplied.

4. Electronic interface and signals definition

5. Parameter

6. Ordering information
GX-Type-Range-Output-Accuracy-Power-Structure-Cable length
Type: PS400=universal type, PS400L= lighting protection, PS400A=thread mounted, PS400B=Submersible & thread type, PS400-WH=Sediment prevention, PS430=minor diameter, PS400-1=antifouling, PS400-2=High density, PS400W=all welded, RSV=Reserved.
Range: 1m…500m= the upper limitation of the range
Output: A=4~20mA, V=0~5V, V1=1~5V, V2=0~10V
Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S,
Power: 24VDC, 11~30Vdc, or customized
Structure: T= submersible type, G=F=split, Ht=customized
Cable length: XXm=XX meter 1-150m
