Name: GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS100
Price: 60 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications

Precision Piezoresistive Mems Pressure Sensor,Medical Piezoresistive Mems Pressure Sensor,Stainless Steel 304 Precision Pressure Sensor

Medical Piezoresistive Mems Pressure Sensor

Stainless Steel 304 Precision Pressure Sensor

Place of Origin:

China

نام تجاری:

Kacise

Model Number:

GXPS100

با ما تماس بگیرید

درخواست نقل قول

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications

جزئیات محصول

Measuring media:

Liquid/gas

Measuring range:

-0.1...0~0.01...60MPa

Overpressure:

150 %FS

Pressure type:

Gauge pressure

Power supply:

12~30V

Output signal:

4~20 mA

Accuracy:

±0.25%FS ±0.5%FS

Operating temperature:

-30~+80°C

Protection:

IP65

Housing material:

Stainless steel 304

Process connection:

1/4”NPT male or others

برجسته کردن:

Precision Piezoresistive Mems Pressure Sensor,Medical Piezoresistive Mems Pressure Sensor,Stainless Steel 304 Precision Pressure Sensor

Medical Piezoresistive Mems Pressure Sensor

Stainless Steel 304 Precision Pressure Sensor

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

قیمت

60USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

محصولات مرتبط

قطعات خودرو سنسور فشار تهویه مطبوع خودرو

بهترین قیمت رو بدست بیار

4-20mA خروجی مواد غذایی درجه بهداشت و بهداشت فلاش دیافراگم بهداشت و بهداشت فرستنده فشار صنعتی

بهترین قیمت رو بدست بیار

حسگر فشار آب مس 0.5-4.5 ولت با هزینه پایین برای گاز هوا صنعتی

بهترین قیمت رو بدست بیار

4-20mA HART خروجی Smart Double Flange Differential Level Pressure Transmitter برای صنایع صنعتی

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

1.Introduction
Smart pressure transmitter is designed for use in applications which deal with corrosive pressure media. A high sensitivity silicon pressure chip is employed in the sensor.Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable
and reliable, having excellent flexibility, sensitivity and diversity.It is widely used for pressure measure and control of petroleum,chemi-industry, metallurgy, power station and hydrology, etc.

2. Specification

Measuring media	Liquid/gas
Measuring range	-0.1...0~0.01...60MPa
Overpressure	150 %FS
Pressure type	Gauge pressure
Power supply	12~30V
Output signal	4~20 mA
Accuracy	±0.25%FS ±0.5%FS
Long-term stability	0.2%FS/year
Storage temperature	-40~+120°C
Operating temperature	-30~+80°C
Process connection	Bottom thread	1/4”NPT male or others
Electrical connection	G1/2
Protection	IP rating		IP65
Housing material	Stainless steel 304

3. Dimension (Unit:mm OEM acceptable)

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 0

4.Electrical connection

(2 wires,4~20mA)
RED: Power +
BLACK: Power - (4~20mA)

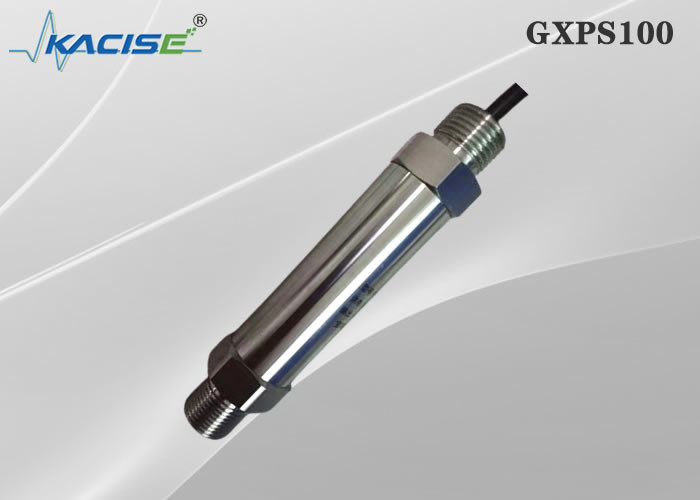

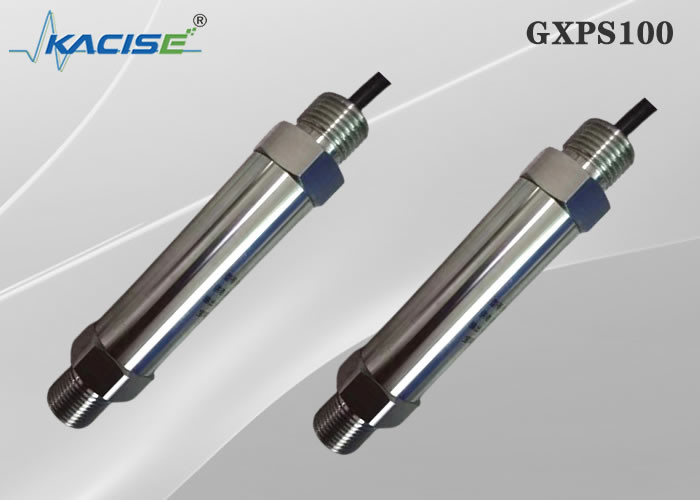

5.Production and shipment pictures

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 1

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 2

GXPS100 Piezoresistive Mems Pressure Sensor For Medical Applications 3
