Name: KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KOX500
Price: 134.00 USD
Availability: InStock

خونه > محصولات > حسگر کشنده گاز >

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy

ABS Shell O2 Sensor,High Accuracy O2 Sensor,RS485 Oxygen Gas Detector Sensor

High Accuracy O2 Sensor

RS485 Oxygen Gas Detector Sensor

Place of Origin:

China

نام تجاری:

Kacise

Model Number:

KOX500

با ما تماس بگیرید

درخواست نقل قول

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy

جزئیات محصول

Measurement accuracy:

± (0.3%VOL+ 5%FS)

Measuring range:

0 ~ 25% VOL

Response time:

<15s

Signal output:

4 ~ 20 ma / 0 ~ 10 v UART RS485

Signal type:

RS485 serial port output

RS485 type:

Multiple, half duplex

Connection:

2 wire system, maximum communication distance 1200 meters, cable direct connection

Power supply:

12VDC±10% 220VAC 50HZ

The shell:

ABS(grey)

برجسته کردن:

ABS Shell O2 Sensor,High Accuracy O2 Sensor,RS485 Oxygen Gas Detector Sensor

High Accuracy O2 Sensor

RS485 Oxygen Gas Detector Sensor

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

قیمت

124~144USD/pc

Packaging Details

carton About 80 g

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

محصولات مرتبط

اندازه گیری گاز فوق صوتی تجاری KFD - USM - 443 - G6/G10/G16/G25/G40/G65

بهترین قیمت رو بدست بیار

گاز سنج فوق صوتی خانگی KGD USM 441 2.7 3.6VDC منبع برق ابعاد طراحی کامپکت 128.7 * 42.8 * 55.2mm

بهترین قیمت رو بدست بیار

10.8V 16.5V ولتاژ سیستم حسگر اکسیژن گسترده KGD ZS 322 حسگر کشنده گاز برای اندازه گیری دقیق نسبت سوخت هوا

بهترین قیمت رو بدست بیار

حسگر اکسیژن موتورسیکلت KGD - ZS - 323

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

First-class quality & Professional service

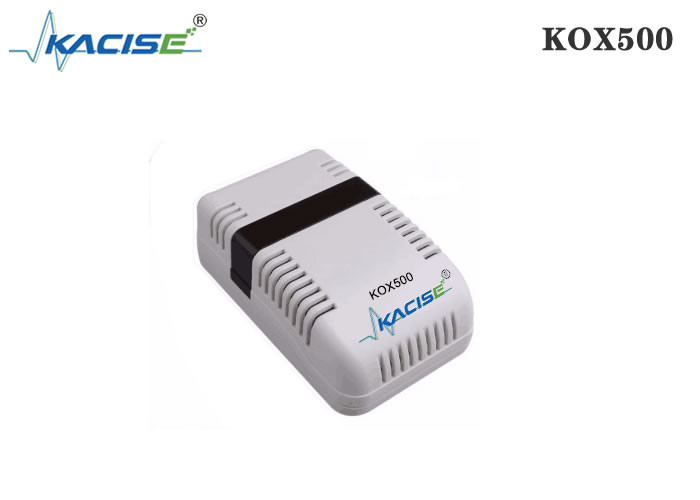

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy 0

Production Introduction

The sensor module adopts high precision detection technology and the core sensor adopts electrochemical sensor. The module uses a high-performance microprocessor and is equipped with different gas sensors to measure the corresponding gas. With digital output and analog voltage output, convenient for users to use and debug, greatly shorten the user's design and development cycle. It combines electrochemical sensor and circuit perfectly to meet the needs of customers for different gas detection occasions.

The module provides 4-20MA, 0-10V, RS485 output, suitable for a variety of customer application scenarios.

Features

Ø Different gas sensors can be mounted to measure the corresponding gas

Ø Advanced circuit design, high measurement accuracy, stable performance

Ø Lightweight case for easy field installation

Ø Rich interface, convenient for customers to choose

Ø Provide zero point calibration

Application

Ø Air quality monitoring

Ø Smart Buildings

Ø Granary air detection

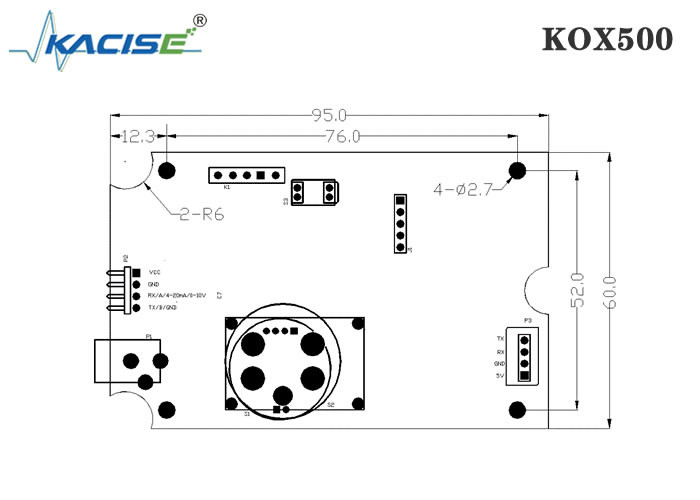

KOX500 size structure chart

Sensor size (unit mm)

KOX500 technical parameters

Class	Performance	Parameter
O2	Sensor type	Electrochemical principles
	Measurement accuracy	± (0.3%VOL+ 5%FS)
	Measuring range	0 ~ 25% VOL
	Response time	<15s
	Calibration	Standard calibration
output parameter	Signal output	4 ~ 20 ma / 0 ~ 10 v UART RS485
485 parameter	Signal type	RS485 serial port output
	RS485 type	Multiple, half duplex
	Connection	2 wire system, maximum communication distance 1200 meters, cable direct connection
	Address	1-254, through software Settings, broadcast address 255, default address 32
	Communication Protocol	MODBUS-RTU,
	Data Format	1 start bit, 8 data bits, no oddity, 1 stop bit
	Baud rate	The default value is 9600bit/s
The energy consumption	Power supply	12VDC±10% 220VAC 50HZ
Connection mode	Terminal	2.54mm four-core socket
The environment	Working environment	Temperature -20...+ 50 ℃ Humidity 15...90%RH, no condensation
The environment	Storage environment	Temperature 10...+ 30 ℃ Humidity 0-90%RH, no condensation
Protection grade	Enclosure protection class	IP30 Refer to IEC 529 -- 598/GB 700 -- 86/ GB 4208
Materials and Colors	The shell	ABS(grey)
Materials and Colors	Weight	About 80 g

Ordering information

Ordering Information Selection Table
Product	Power supply	Cable length	Signal output
KOX500	O2 Gas Sensor
	12VDC	The power supply is 12VDC (Default)
	220V/110VAC	The power supply is 220/110VAC
		Cable length
		XXm	The default is 5meters the longest is 500m
			4-20mA	4-20mA output without RS485 output
			RS485	RS485 output without 4-20mA output (Default)
			ARS485	4-20mA output with RS485 output
				Modbus-RTU	protocol of RS485 output is Modbus-RTU (Default)
				Modbus-ASC	protocol of RS485 output is Modbus-RTU
				customized	Support OEM
KOX500	DC12V	5m	RS485	Modbus-RTU

Matters needing attention

Ø In environments with EMC problems, shielded cables must be used.

Ø When the module is started cold, the preheating time should not be less than 2 minutes.

Ø The sensor should be calibrated regularly, and no more than 3 months is recommended.

Ø Do not use the sensor in a dust dense environment for a long time.

Ø Please pay attention to the wiring of the positive and negative terminals of the power supply and the signal output terminals. Do not connect backward.

Ø High concentration of chemical pollution will lead to the damage of sensor polymerization layer, therefore, the product should be kept and used away from chemical pollution sources.

Ø Please refer to the relevant national product installation standards for the installation process.

Summary appendix

Abbreviation	Paraphrase
VOL	100PPM
O2	Oxygen molecular formula
LCD	Liquid Crystal Display
RS485	asynchronous serial
DC	Direct Current
AC	Alternating Current
PVC	Polyvinyl chloride
