Fish Farm Online Dissolved Oxygen Sensor With RS485 Output And Accuracy 1%

24VDC Online DO Meter,Fish Farm Online Dissolved Oxygen Sensor,RS485 Online Dissolved Oxygen Sensor

Fish Farm Online Dissolved Oxygen Sensor

RS485 Online Dissolved Oxygen Sensor

Place of Origin:

Shaanxi, China

نام تجاری:

Kacise

با ما تماس بگیرید

درخواست نقل قول

Fish Farm Online Dissolved Oxygen Sensor With RS485 Output And Accuracy 1%

جزئیات محصول

principle:

Ultraviolet fluorescence method

Measuring range:

0~20mg/L

Accuracy:

Power supply:

DC 5~12V, current <50mA

Calibration:

two point calibration

Power suppluy:

12~24VDC ±10%

Port:

Xi'an or other

برجسته کردن:

24VDC Online DO Meter,Fish Farm Online Dissolved Oxygen Sensor,RS485 Online Dissolved Oxygen Sensor

Fish Farm Online Dissolved Oxygen Sensor

RS485 Online Dissolved Oxygen Sensor

شرایط پرداخت و حمل و نقل

قیمت

$100.00 - $1,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

500 Piece/Pieces per Month

محصولات مرتبط

KCW102 دستگاه تصفیه آب با امواج الکترومغناطیسی با فرکانس پایین

بهترین قیمت رو بدست بیار

KCW101 فرکانس - تجهیزات تصفیه آب با امواج الکترومغناطیسی مدول

بهترین قیمت رو بدست بیار

KHM100 کنترل کیفیت آب متریال سنگین اتوماتیک

بهترین قیمت رو بدست بیار

KCW104 فرکانس کارایی بالا - دستگاه پاک کننده

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

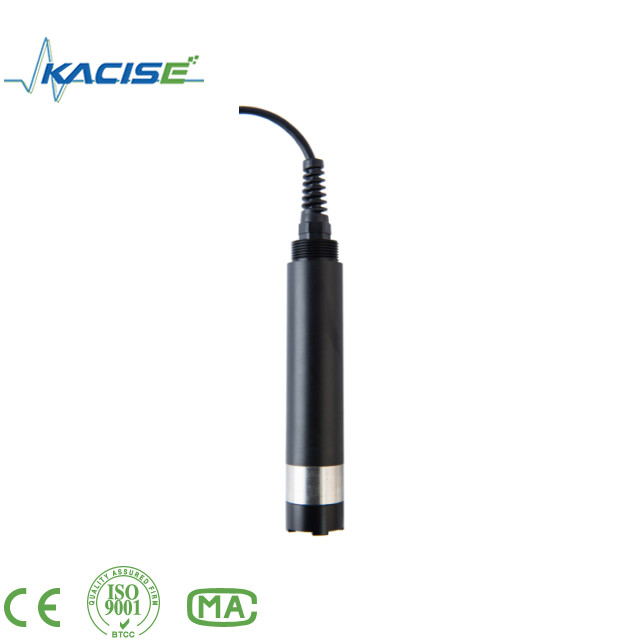

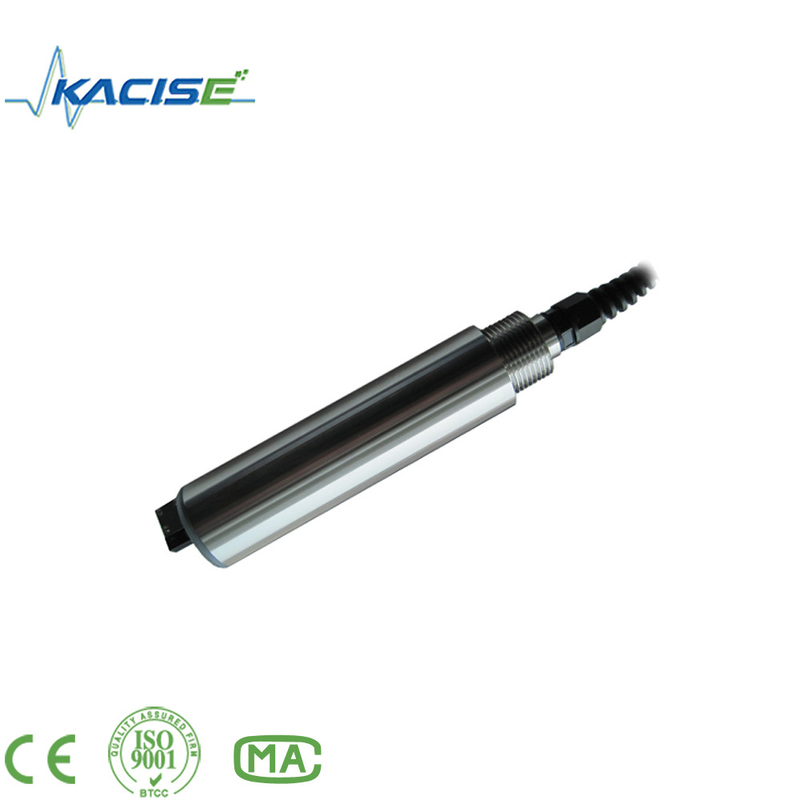

Fish Farm Online Dissolved Oxygen Sensor

1. Applications

The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.

2. Feature

Digital sensor, RS485 output, support MODBUS,
no membrane,
no electrolyte,
no interference,
no need for frequent calibration,
no oxygen,
no flow restriction,
built-in temperature sensor, automatic temperature compensation.

3.Technical Specifications

product	Online fluorescence dissolved oxygen sensor
principle	Ultraviolet fluorescence method
Measuring range	0~20mg/L
Response time	10 sec
accurate	1%
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA
size	Φ26*177.5 mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
Fluorescent cap life	1 year
Maximum working pressure	6bar
product material	POM or ss316
