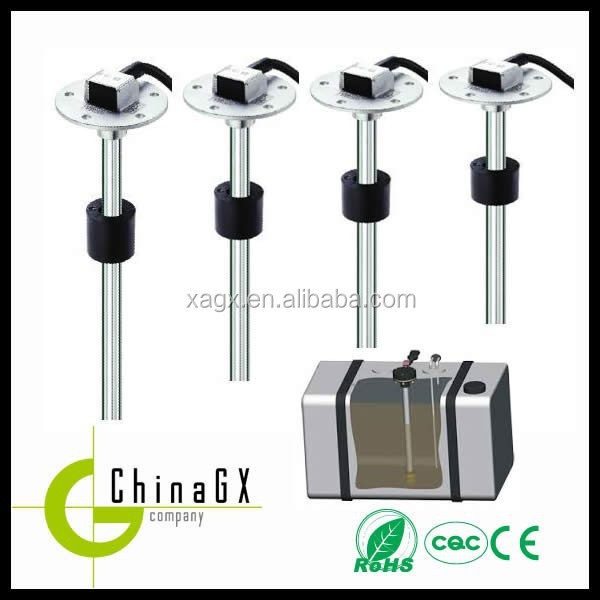

Name: 4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXRS series
Price: 30.00 USD
Availability: InStock

خونه > محصولات > اندازه گیری سطح مایعات >

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series

Stainless Steel Diesel Tank Level Sensor,20mA Diesel Fuel Tank Level Sensor

20mA Diesel Fuel Tank Level Sensor

Place of Origin:

CHINA

نام تجاری:

KACISE

گواهی:

Model Number:

GXRS series

با ما تماس بگیرید

درخواست نقل قول

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series

جزئیات محصول

Model:

GXRS series

Application:

fuel tank

Sensor:

Level sensor

Funciton:

level measurement

Signal:

Resistance ouput 0-190OHM

Theory:

Resistance Sensor

Material:

stainless steel

Length:

170~2000mm

Protection Grade:

IP67

Feature:

4~20 diesel fuel tank level sensor

Port:

Shanghai or other

برجسته کردن:

Stainless Steel Diesel Tank Level Sensor,20mA Diesel Fuel Tank Level Sensor

20mA Diesel Fuel Tank Level Sensor

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1PCS

قیمت

$10.00 - $50.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

محصولات مرتبط

ویدیو

کنترل کننده نمایش سری KDI که از ارتباطات چند ماشین پشتیبانی می کند

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش سری KDI با رابط باز تنظیم پارامترهای داخلی دقت بالا و وضوح 0.1

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش اندازه گیری سری KDI با سوئیچینگ ورودی چند شاخص و جبران دمای دقیق

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش ستون نور سری KDI با اندازه گیری دیجیتال و آنالوگ

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Start a career with essence,

win through high quality.

4~20 diesel fuel tank level sensor

1. Products Introduction

The GXRS fuel series sensor is made of stainless steel. It applies the principle of the liquid flotage and magnetic induction to measure the liquid level. The product has good anti-corrosion performance, high measuring precision and preventing oil leakage when turned over. These made the sensor be widely used in light truck, bus, boat, and engineering mechanism fields. Graceful design and excellentquality attract the world famous vehicle OEM.

The GXRS series sensor is a cost effective fuel level sensor designed for smaller trucks. The sensor is designed according to the actual tank shape for exact measurements of the tank content. Measurements are done by series of reed switches positioned inside the level tube. A float. with built- in magnets then triggers the reed relays. generating a potential - free resistance with a ohm value that increases or decreases according to the respective fluid level. Resistance output is fully customizable. The float is the only moving part of the sensor. thereby minimize potential mechanical failures. All sensors are fully insulated to protect against voltage inside the tank.

2. Parameters

Material	304 stainless steel
Fitting	bulge fitting, thread fitting, SAE fitting
Length range	100mm~2000mmm
Installation	bayonet, standard 5 holes or standard 6 holes, can be customzied
Gasket	FPM gasket, NBR gasket
Rated Power	125mW
Rated Current for alarm switch	500mA
Wire	PVC material (PA corrugated pipe aacover is optional)
Connector	Brand Delphi , Tyco, others is available according to customers’ requirement
Output signal	Resistance control signal 0-190Ω, 240-33Ω, or customize as required
Precision Range	10-40mm
Operating Temperature	-40℃~+85 ℃
Protection Grade	IP67

3. Dimension

4. Application

1. mainly used in liquid level detection and oil absorbing function for oil tank

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series 2

5. Package

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series 3

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series 4

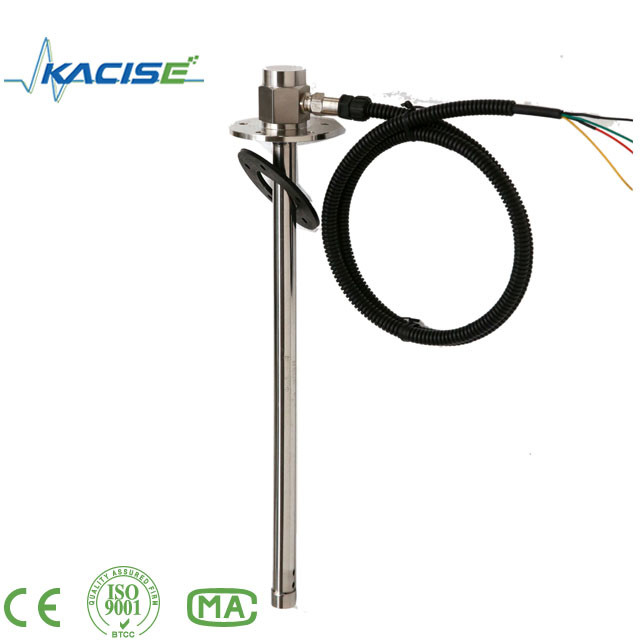

6. Product picture

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series 7

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series 8

******************************************************************************************************************************************

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series 10

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series 11

Our Services

Please send us emali for more information, we will reply you in 12 hours.
We will provide 12 months of warranty, and lifetime maintenance for products.
Fully tested before delivery.

We supply high quality fuel level sensor, and provide high level services.
We believe once cooperation can keep you as our friend. We look forward your inquiries.
