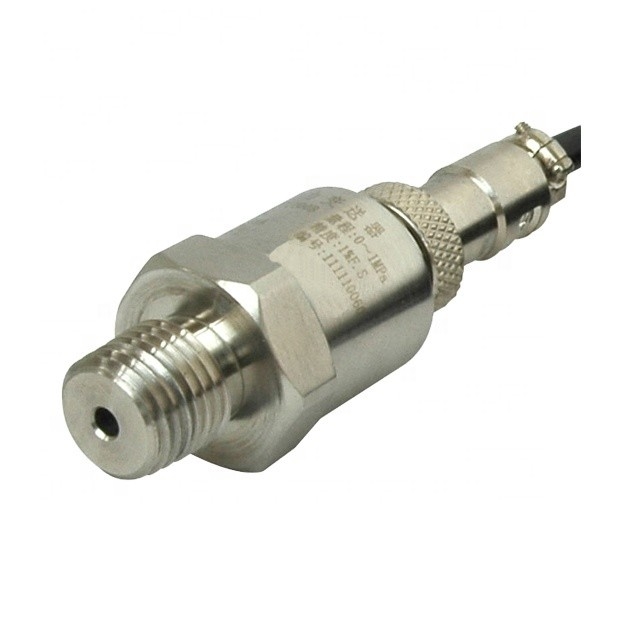

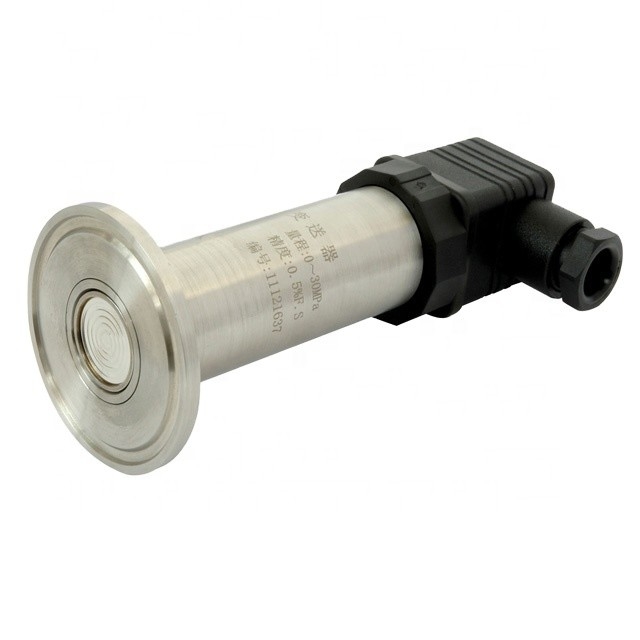

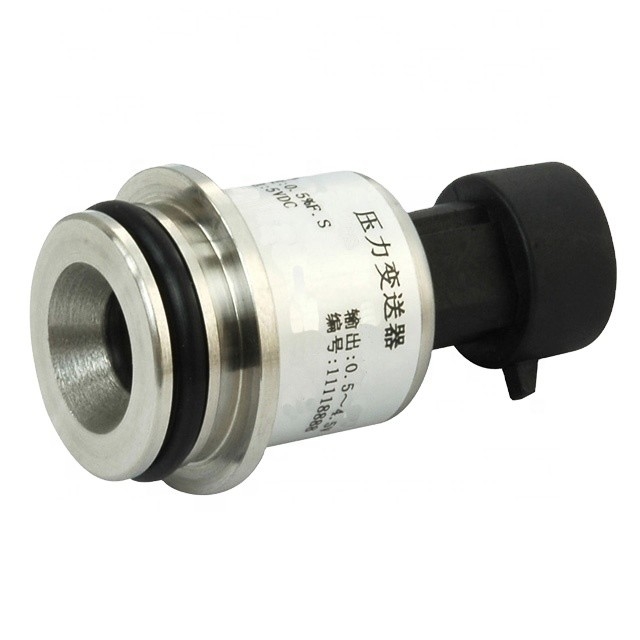

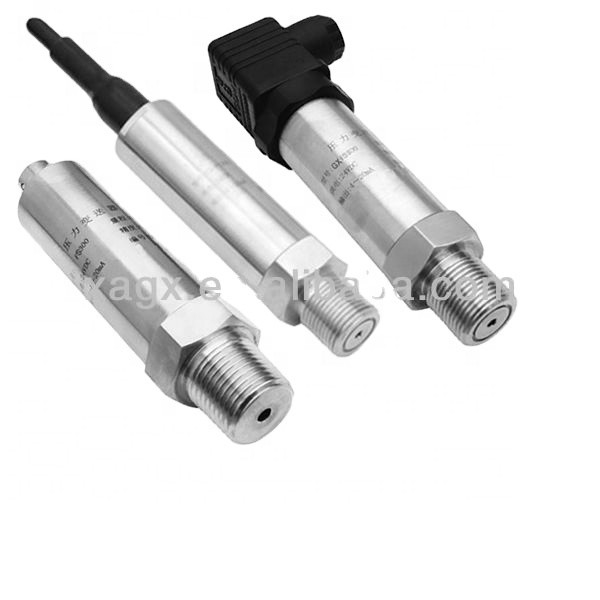

Stainless Steel Oil Pressure Sensor M20x1.5 Oil Pressure Switch

Spec.

Value

Pressure range

0~0.1MPa......200MPa

Load pressure

2 times nominal value pressure (1.5X)

Rupture pressure

4 times nominal value pressure (3X)

Accuracy

±0.1%F.S, ±0.25%F.S,   ±0.5%F.S

Stability

Typical value 0.25%F.S/year, Max. 0.4% F.S

Operating temperature

-50°C~150°C

Compensation temperature

-20°C~120°C

Medium compatibility

All Caustic Medium Compatible with 1Cr18Ni9Ti

Electrical performance

2 wire system

3/4 wire system

Output signal

4~20mA

0~20mA

0~10mA

0~5V

0~10V

Power supply

12~30Vdc

12~30Vdc

Load pressure

(U-10)/0.02(Ω)

> 20kΩ

Insulation

> 100M Ω@50V

Electric strength

500V@60 second

Vibration/Impact

10g/5~2000Hz, axes X/Y/Z20g sine 11ms

Pressure durable

2×10⁶pressure circle @25°C

Electrical connection

Hirsmann , air plugs, fixed cable, water proof cable

Display range

-999~1999

Pressure port

M20×1.5, G1/4, G1/2, R1/2, NPT1/2, NPT1/4

Pressure type

G, S

Response time: 10ms

EMI/EMC

EMI: EN50081-1/-2; EMC: EN50082-2

Electric connection

2 wire

3 wire

4 wire

Cable

Hirsmann

Air plug

Power

Power

Power+

Red

1

1

Output

Output

Output+

Blue

2

2

Power ground

Power -

Black

3

3

Output-

Green

Shielded

shielded

Shielded

Yellow

4
