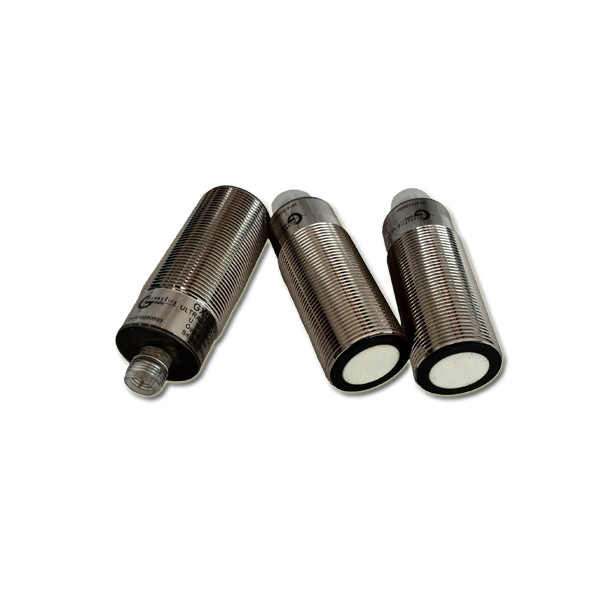

waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66

Place of Origin:

CHINA

نام تجاری:

KACISE

گواهی:

Model Number:

KUS3000

با ما تماس بگیرید

درخواست نقل قول

waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66

جزئیات محصول

Usage:

Position Sensor

Theory:

Ultrasonic Sensor

Output:

0-5V 0-10V 4-20mA RS485 output as you like

NAME:

ultrasonic transducer 40khz

scope of work:

40MHz

application:

waterproof ultrasonic sensor

Port:

Shanghai or other

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1PCS

قیمت

$125.00 - $350.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

محصولات مرتبط

ویدیو

کنترل کننده نمایش سری KDI که از ارتباطات چند ماشین پشتیبانی می کند

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش سری KDI با رابط باز تنظیم پارامترهای داخلی دقت بالا و وضوح 0.1

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش اندازه گیری سری KDI با سوئیچینگ ورودی چند شاخص و جبران دمای دقیق

بهترین قیمت رو بدست بیار

ویدیو

کنترل کننده نمایش ستون نور سری KDI با اندازه گیری دیجیتال و آنالوگ

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

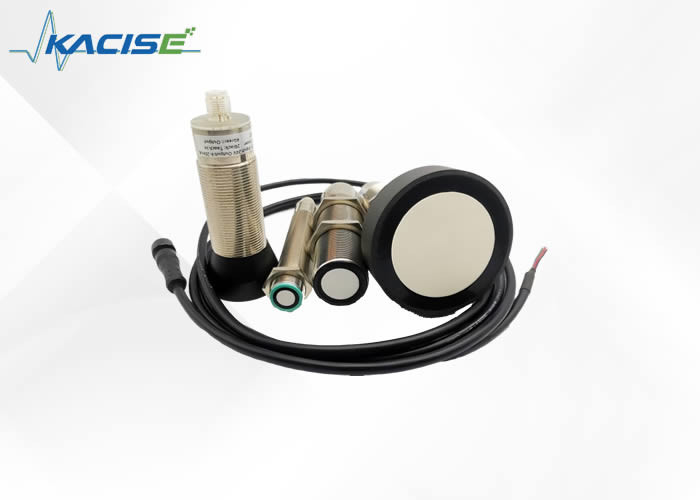

KUS3000 series ultrasonic transmitter

Dimensions

Name: waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS3000
Price: 237.00 USD
Availability: InStock

Unit in the diagram is mm.

waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66 1

M18 series transmitter dimensions M30 type1 series transmitter dimensions

waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66 3

M30 type2 series transmitter dimensions M30 type3 series transmitter dimensions

2. Electronic interface and signals definition

Parameter

General specifications

M18
Sensing range	150... 1000 mm
Adjustment range	150….1000mm
Unusable area	0 ... 150 mm
Response delay	approx. 10 ms

M30-type1
Sensing range	200... 2000 mm
Adjustment range	200….2000mm
Unusable area	0 ... 200 mm
Response delay	approx. 10 ms

M30-type2
Sensing range	300... 3500 mm
Adjustment range	300….3500mm
Unusable area	0 ... 300 mm
Response delay	approx. 20 ms

M30-type3
Sensing range	400... 6500 mm or 600-12000mm
Adjustment range	400….6500mm or 600-12000mm
Unusable area	0 ... 400 mm
Response delay	approx. 40 ms

Indicators/operating means

LED blue

Flashing: program can be acted, this status

The Blue led will flash around 5 minutes after the sensor power on, indicate the sensor can be programed, and then the blue led will perpetually turn on. To indicate the power status.

LED yellow

indication of the switching state

flashing: during program function object detected

LED red

Normal working: light on indicate error detected.

Programing: flashing, echo lost, that means the sensor covered or no object in the front of the sensor,

Electrical specifications

Operating voltage UB	13 ... 30 V DC, ripple 10 %SS
No-load supply current I0	≤ 45 mA

IOT version

Operating voltage UB	3.3-16 DC, ripple 10 %SS
No-load supply current I0	≤ 15 mA, sleep mode≤1mA, waken by uart.,

Input

Input type	1 TEACH-IN input
	operating range A1: 0V/GND ... +1 V, operating range A2: +6 V.+UB
	input impedance: > 4.7 kΩ ; TEACH-IN program pulse: ≥ 1 s

Output

Output type	1 switch output E4, NPN NO/NC, programmable 2 switch output E4, PNP NO/NC, programmable 3 Analog 0-10V output E4 programmable. 4 Analog 4-20mA output E4 programmable 5 RS485 output E4 programmable.
Rated operating current Ie	200 mA, short-circuit/overload protected
Default setting	Switching point A1:150mm Switching point A2: 1000mm
Voltage drop	≤ 2.5 V
Repeat accuracy	≤1 %
Switching frequency f	≤ 13 Hz (customized for high frequency version)
Range hysteresis H	5 % of the set operating distance
Temperature influence	±1% of full-scale value

Ambient conditions

Ambient temperature	-25…70℃ (248...343K)
Storage temperature	-40…85℃ (233...358K)

Mechanical specifications

Connection	V1 connector(M12×1),4-pin
Protection degree	IP66
Material Housing	brass, nickel-plated
Transducer	epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT

Installation conditions

If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

Ordering information

KUS	Body size	OUTPUT		Max range	Description
	M18	For M18 body, The max range for M18 is 1000mm
	M30-Type1	For M30 body. The max range is 2000mm for M30
	M30-Type2	For M30 body. The max range is 3000mm for M30
	M30-Type3	For M30 body. The max range is 6000mm for M30
	Customized	Customized
		NPN	Output is NPN
		PNP	Output is PNP
		Vout	Output is Vout 0-10V
		mAout	Output is 4-20mA
		RS485	Output is RS485
			XXX mm		XXX mm is the maxim range can be detected For M18 the max range is 1000mm For M30 the max range is 6000mm
KUS	M30	RS485	2000mm
