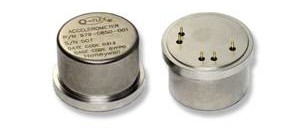

Q-Flex® QA-650 Accelerometer

Economical sensor package

For Q-Flex technology in an economical package, Honeywell produces the QA650 for industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring.

As with the entire Q-Flex family of accelerometers, the QA650 features a patented Q-Flex etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability.

The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

Features

· Tactical navigation grade performance

· High value

· Environmentally rugged

· Analog output

· Compact design

· Built-in test

· Field-adjustable range

Applications

· Automotive test instrumentation

· Braking system deceleration

· Bridge and building sway and tilt monitoring

· Industrial and robotic control

· Land vehicle navigation

· Subway and train ride comfort control

· Offshore drilling platform motion monitoring

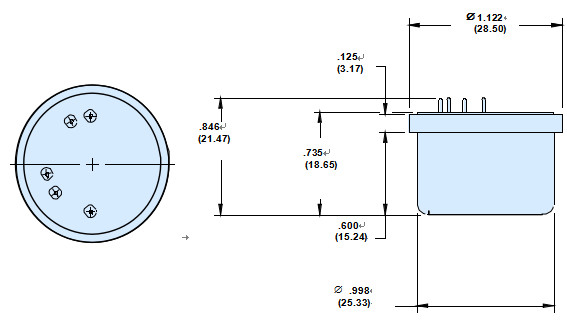

Configuration Drawings

Performance Characteristics

Additional product specifications, outline drawings and block diagrams,and test data are available on request.
