Three Axis Fiber Optic Gyroscope Digital Output For Autonomous Driving Automotive Electronics

Three Axis Fiber Optic Gyroscope,Digital Output Fiber Optic Gyroscope,Automotive Electronics Accelerometer Gyroscope

Digital Output Fiber Optic Gyroscope

Automotive Electronics Accelerometer Gyroscope

Place of Origin:

China (Mainland)

نام تجاری:

Kacise

گواهی:

certificate of explosion-proof, CE

Model Number:

KSFG-3X36

با ما تماس بگیرید

درخواست نقل قول

Three Axis Fiber Optic Gyroscope Digital Output For Autonomous Driving Automotive Electronics

جزئیات محصول

Zero bias stability（1s，10s） °/h:

≤0.5

Zero bias repeatability（1s，10s） °/h:

≤0.5

Zero bias stability at full temperature（1s，10s） °/h:

≤1

برجسته کردن:

Three Axis Fiber Optic Gyroscope,Digital Output Fiber Optic Gyroscope,Automotive Electronics Accelerometer Gyroscope

Digital Output Fiber Optic Gyroscope

Automotive Electronics Accelerometer Gyroscope

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

محصولات مرتبط

حسگر شتاب سنج Honeywell QA2000-030، کاربردهای هوافضا

بهترین قیمت رو بدست بیار

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

بهترین قیمت رو بدست بیار

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

بهترین قیمت رو بدست بیار

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

KSFG-3X36 three-axis series gyro

Name: Three Axis Fiber Optic Gyroscope Digital Output For Autonomous Driving Automotive Electronics
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSFG-3X36
Price: 478.00 USD
Availability: InStock

The principle of fiber optic gyroscope is an inertial navigation instrument based on optical principle, which uses the characteristics of fiber to measure the rotational angular velocity, so as to achieve the accurate measurement of heading, pitch and roll.

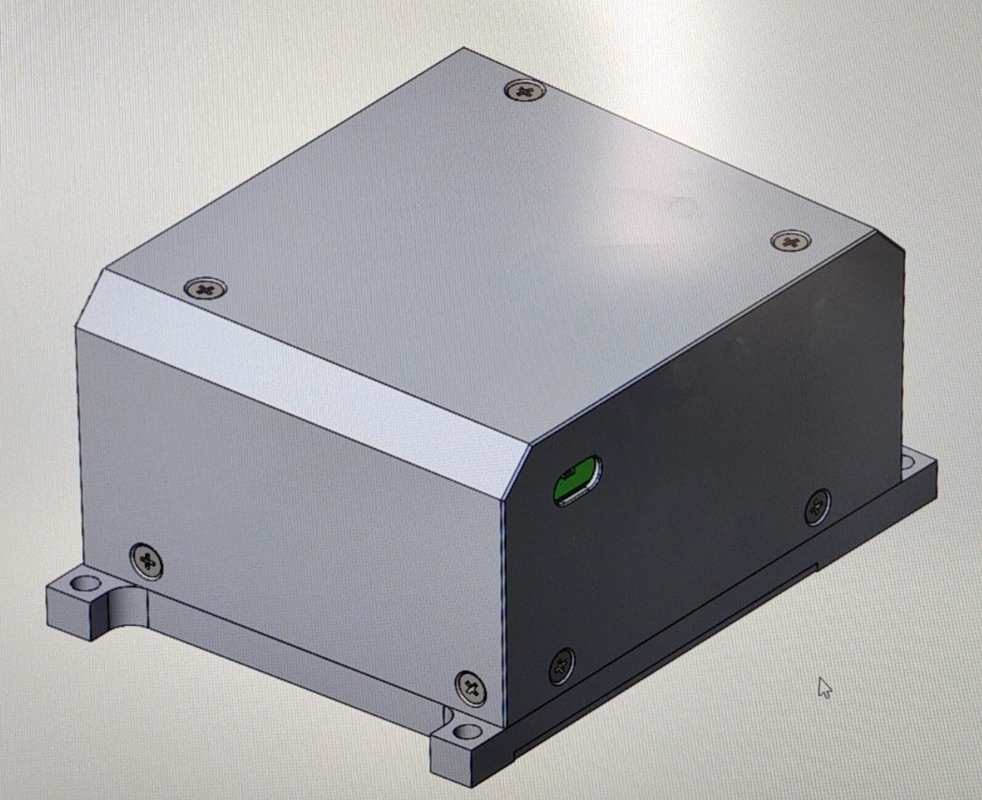

KSFG3X36-1 fiber optic gyro is a low-precision three-axis gyro, as shown in Figure 1, with the advantages of small volume, light weight, no moving parts, high reliability, long life, etc. Its digital output is convenient and integrated with the system, which can be applied to aviation, aerospace, ships, weapons, coal mine measurement, automotive electronics and other fields.

Three Axis Fiber Optic Gyroscope Digital Output For Autonomous Driving Automotive Electronics 0

Three Axis Fiber Optic Gyroscope Digital Output For Autonomous Driving Automotive Electronics 1

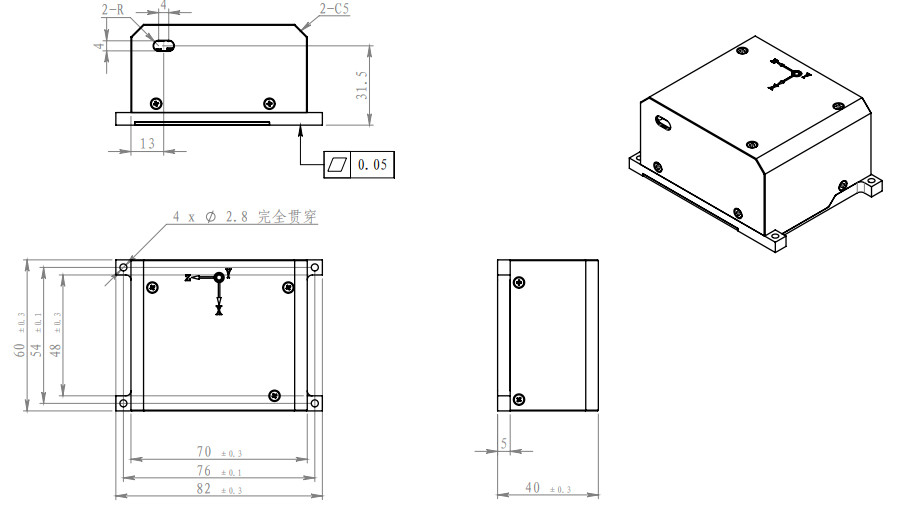

Installation mode Size:60X70X40

The performance indicators achieved by the KS3X36-1 FOG after adding power for 5s are shown in Table 1 below.

Number	Parameter	Units	I	II
1	Zero bias stability(1s,10s)	°/h	≤0.5	≤1
2	Zero bias repeatability(1s,10s)	°/h	≤0.5	≤1
3	Zero bias stability at full temperature(1s,10s)	°/h	≤1	≤2
4	Random walk coefficients	°/h1/2	≤0.01	≤0.1
5	Scale factor nonlinearity	ppm	≤50	≤100
6	Scale factor asymmetry	ppm	≤50	≤100
7	Repeatability of the scale factor	ppm	≤50	≤100
8	Full temperature scale factor change	ppm	≤250	≤500
9	Range of measurement	°/s	-500~+500	-500~+500
10	bandwidth	Hz	³500	³500
11	Steady-state power consumption	W	≤5.0	≤5.0
12	Resistance of insulation	MΩ	＞100	＞100
13	Operating temperature	℃	-40~+60	-40~+60
14	Temperature of storage	℃	-50~+75	-50~+75
15	weight	g	≤300	≤300
16	Dimensions	mm	607040	607040
