Product Description:
The functionality of accelerometers is relatively uncomplicated. They quantify acceleration in units of g and are adaptable to measurement along one, two, or three axes. At present, the widely used option is the 3-axis accelerometer, featuring three accelerometers, each detecting acceleration in different directions across the X, Y, and Z planes.

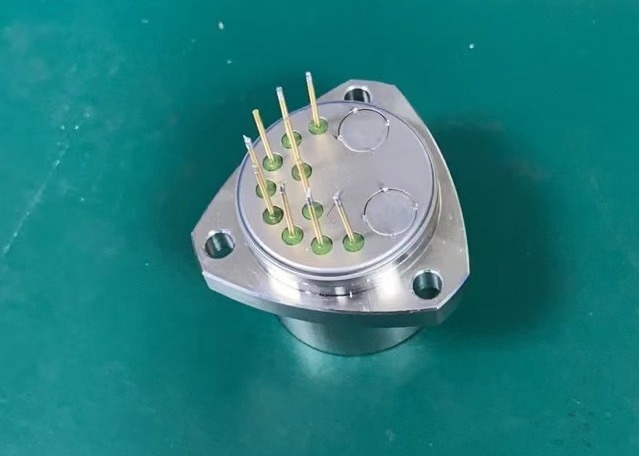

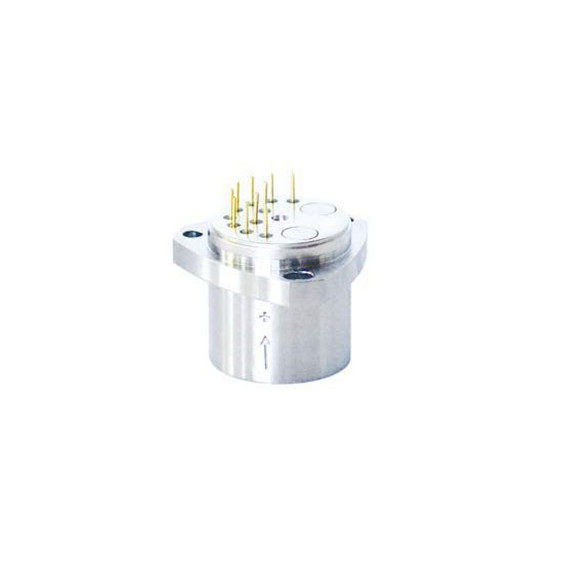

The Accelerometer Sensor is a precision gravity force monitor and vibration detection system, designed to measure linear acceleration forces in a range of ±80g. With a resolution of less than 5μg and a weight of 80g, this linear acceleration meter is ideal for applications where high accuracy is required. The storage temperature range is -55°C to +80°C and it can work with a wide input voltage range of ±12V to ±18V. This reliable sensor is ideal for monitoring dynamic acceleration forces in many different applications, such as automotive, aerospace, marine, and industrial automation.
Product Feature:
● Analog output
● Excellent index repeatability
● Build-in temperature sensor available according to needs
● Wide load resistance range
● Triangle precision mounting flanges
● Application in satellite control unit, microgravity measurement device and inertial navigation system in the manned reentry capsule
Technical Parameters:
| Performance |
KSQA09A |
KSQA09B |
| Input Range (g) |
±80 |
±40 |
| Bias (mg) |
≤5 |
≤5 |
| Temperature Sensitivity (μg/℃) |
≤30 |
≤50 |
| One-month Composite Repeatability (1σ) (μg) |
≤30 |
≤60 |
| Scale Factor (mA/g) |
0.9 ~ 1.3 |
0.9 ~ 1.3 |
| Temperature Sensitivity (10-6/℃) |
≤50 |
≤80 |
| One-month Composite Repeatability (1σ) (10-6) |
≤40 |
≤60 |
| Linearity (μg/g2) |
≤40 |
≤40 |
| Threshold (μg) |
Less than 5 |
Less than 5 |
| Resolution (μg) |
Less than 5 |
Less than 5 |
| Input Voltage (V) |
±12 ~ ±18 |
±12 ~ ±18 |
| Operating Temperature (℃) |
-45 ~ +80 |
-45 ~ +80 |
| Size (mm) |
Ø25.4×30 |
Ø25.4×30 |
| Weight (g) |
≤80 |
≤80 |
|
Outline:
| Outline |
 |
|

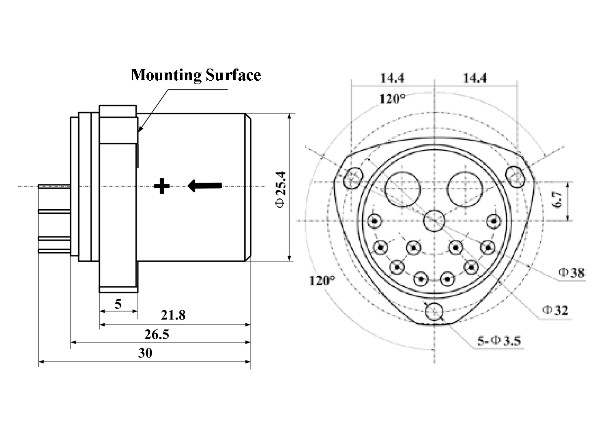

| KSQA09 Configuration Drawings |

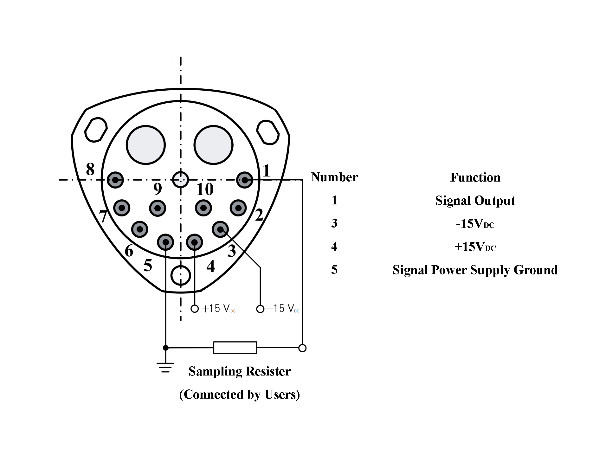

KSQA09 Pin & Wiring Diagram |
| |
|
| Environment |
| Vibration Peak Sine |
20g@20Hz ~ 2000Hz |
| Shock |
100g, half-sine, 8ms ~ 12ms |
| Storage Temperature |
-55℃ ~ +80℃ |
Support and Services:
Accelerometer Sensor provides technical support and services to its customers.
We offer technical support through our online help desk, and provide assistance with technical issues related to our products and services. We also provide a range of on-site services, including troubleshooting, installation, maintenance, and repair services.
We are committed to providing our customers with the highest level of service and support, and strive to provide a fast, efficient, and friendly customer experience.
Packing and Shipping:
Packaging and Shipping of Accelerometer Sensor
To ensure the safe delivery of the Accelerometer Sensor, it is packaged in a durable cardboard box. The box should be sealed and placed in a larger box with cushioning material such as Styrofoam sheet. The larger box should also be sealed and properly labeled.
When shipping the Accelerometer Sensor, it is recommended that customers select a carrier that offers tracking and insurance. The customer should also keep a copy of the tracking number and shipping receipt for their records.
