Product Description:
Accelerometers function in a relatively simple manner. They measure acceleration in units of g and can be employed along one, two, or three axes. At present, the most widely utilized option is the 3-axis accelerometer, comprising three accelerometers that record acceleration in different directions across the X, Y, and Z planes.
Various types of accelerometer sensors exist based on different criteria. Among them, accelerometers can be categorized into high precision, medium precision, and low precision groups based on their measurement accuracy. As market demands evolve alongside advancements in micro-acceleration sensors, MEMS accelerometers are expected to find widespread applications in the medium and low precision sectors, while high-precision applications continue to rely primarily on mechanical quartz flexible accelerometers. The quartz flexible accelerometer, a classic high-precision mechanical pendulum accelerometer, remains a pivotal component in high-precision applications.
Product Feature:
● Analog output
● Excellent index repeatability
● Build-in temperature sensor available according to needs
● Wide load resistance range
● Square precision mounting flanges
● Application in engineering applications
Performance Characteristics:
| Performance |
KSQA10A |
KSQA10B |
| Input Range (g) |
±20 |
±20 |
| Bias (mg) |
≤5 |
≤5 |
| Temperature Sensitivity (μg/℃) |
≤30 |
≤50 |
| One-month Composite Repeatability (1σ) (μg) |
≤30 |
≤50 |
| Scale Factor (mA/g) |
1.2 ~ 1.6 |
1.2 ~ 1.6 |
| Temperature Sensitivity (10-6/℃) |
≤30 |
≤80 |
| One-month Composite Repeatability (1σ) (10-6) |
≤30 |
≤50 |
| Linearity (μg/g2) |
≤15 |
≤40 |
| Threshold (μg) |
Less than 5 |
Less than 5 |
| Resolution (μg) |
Less than 5 |
Less than 5 |
| Input Voltage (V) |
±12 ~ ±18 |
±12 ~ ±18 |
| Operating Temperature (℃) |
-45 ~ +80 |
-45 ~ +80 |
| Size (mm) |
Ø25.4×32 |
Ø25.4×32 |
| Weight (g) |
≤70 |
≤70 |
Outline:
| Outline |
 |
|

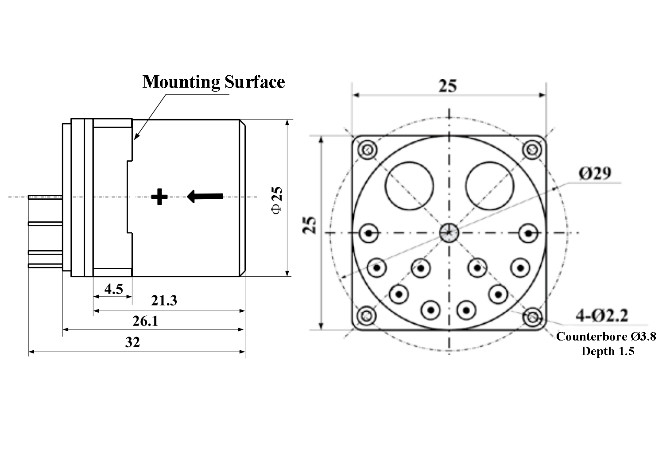

| KSQA10 Configuration Drawings |

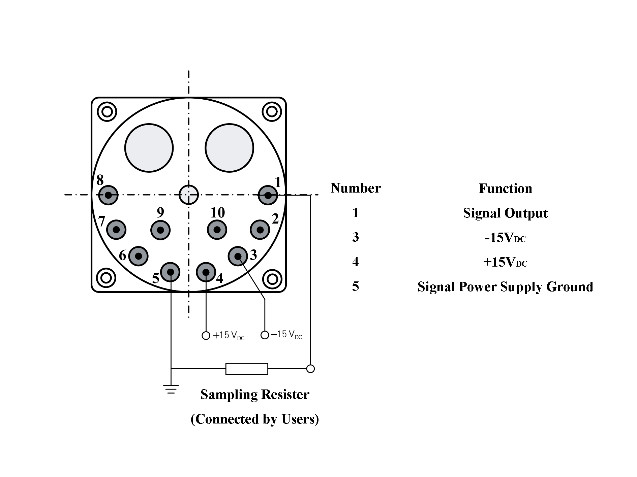

KSQA10 Pin & Wiring Diagram |
| |
|
| Environment |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
| Shock |
100g, half-sine, 8ms ~ 12ms |
| Storage Temperature |
-55℃ ~ +80℃ |
Applications:

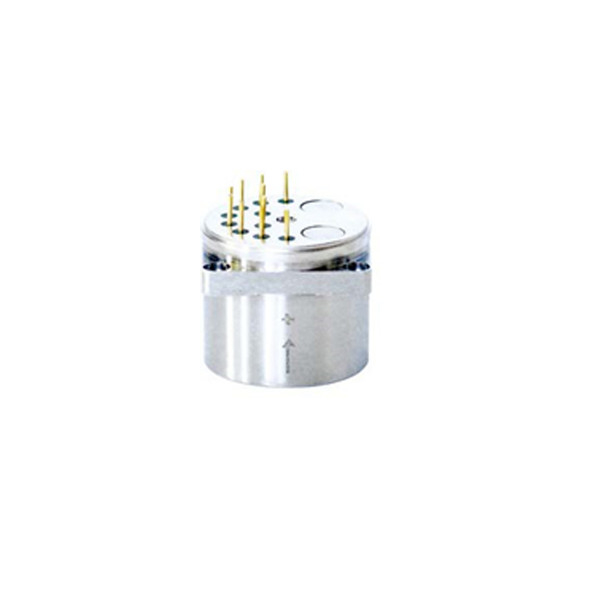

The Kacise KSQA10 Accelerometer Sensor is the perfect solution for precision gravity force monitoring and vibration detection systems. It is designed with a linear acceleration meter to measure and detect the gravity force with high accuracy and repeatability. The Accelerometer Sensor is CE certified and explosion-proof, and it can be used in a wide range of industries, such as automotive, aerospace, military, industrial, medical, and more.
The Kacise KSQA10 Accelerometer Sensor has a Ø25.4×32(mm) size and it operates at -45 to +80(℃) temperature range. It has a one-month composite repeatability of ≤30 (1σ) (ppm) and a bias of ≤5mg. The minimum order quantity for this product is 1 piece and it can be shipped within 5-8 working days. The packaging is available in individual boxes and standard packages.
The Kacise KSQA10 Accelerometer Sensor is perfect for applications where there is a need to accurately measure and detect vibration, linear motion, and gravity force. It is ideal for use in automotive, aerospace, military, industrial, and medical applications. Its reliable performance and long-term stability make it an excellent choice for applications where precision and accuracy are critical.
Support and Services:
Accelerometer Sensor technical support and service is available to help customers with their product needs. Our knowledgeable staff is ready to answer any questions and help you troubleshoot any issues. Our support team can provide assistance with installation, configuration, and maintenance of the product. We also offer training on the use of the product to ensure that customers are able to get the most out of their purchase. If you ever have any questions or concerns, please don't hesitate to contact us.
Packing and Shipping:
Accelerometer Sensor Packaging and Shipping
The accelerometer sensor will be carefully packaged to ensure that it reaches you in its best condition. It will be securely placed in an anti-static bag and then surrounded by foam padding inside a cardboard box.
The cardboard box will be sealed with packing tape and marked with the product name and address. We will also include an instruction manual with each order.
The accelerometer sensor will be shipped via a reliable carrier and will arrive in 1-3 business days. We will provide you with tracking information after the order is shipped.
