Product Description:

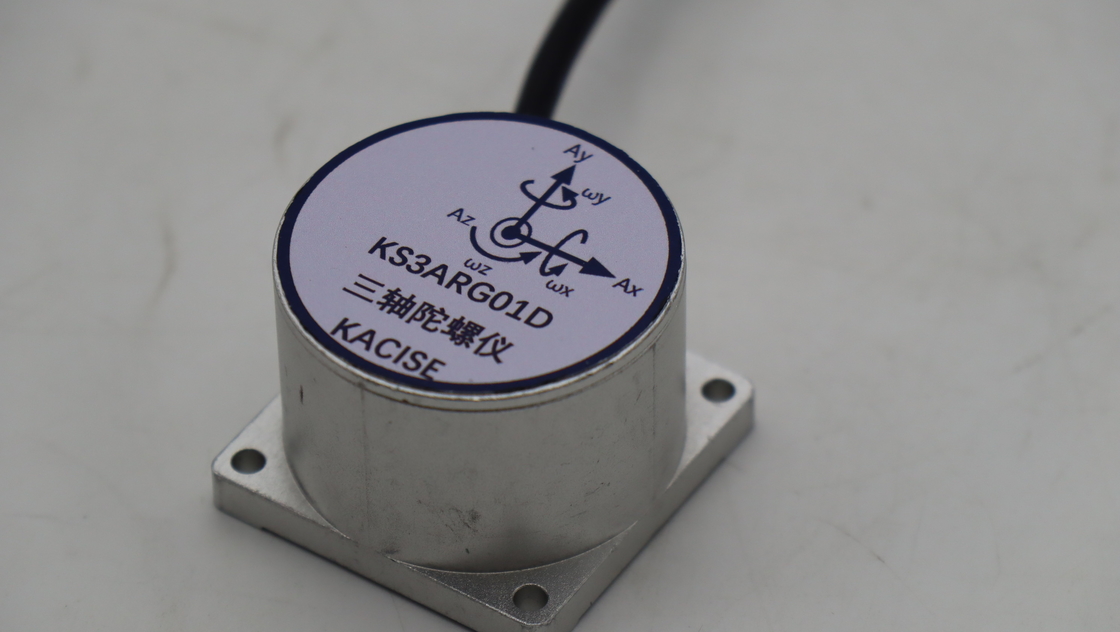

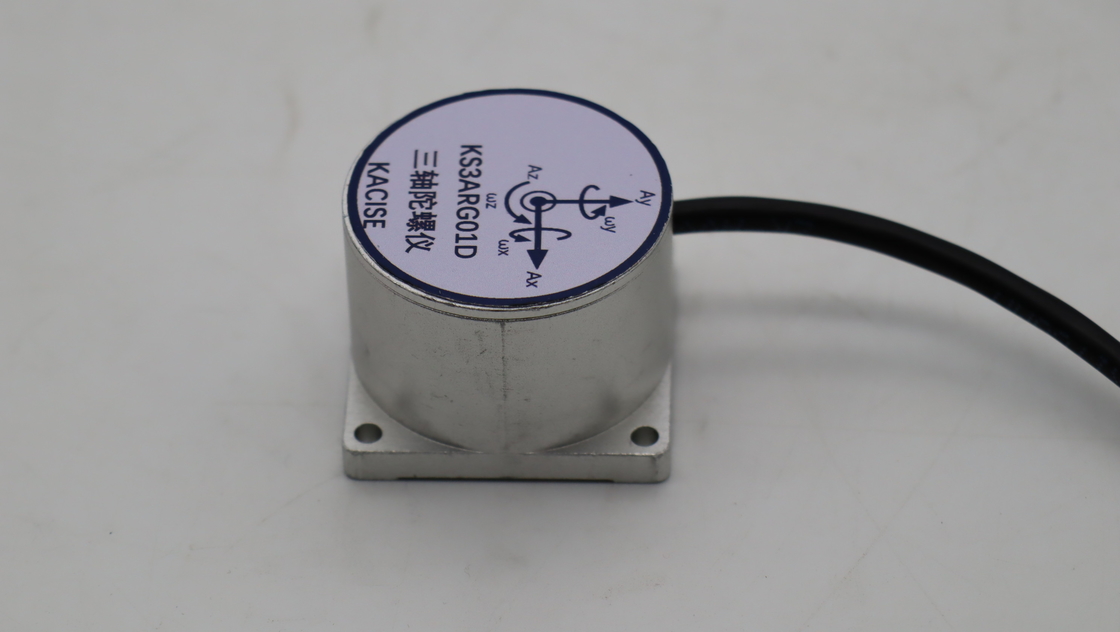

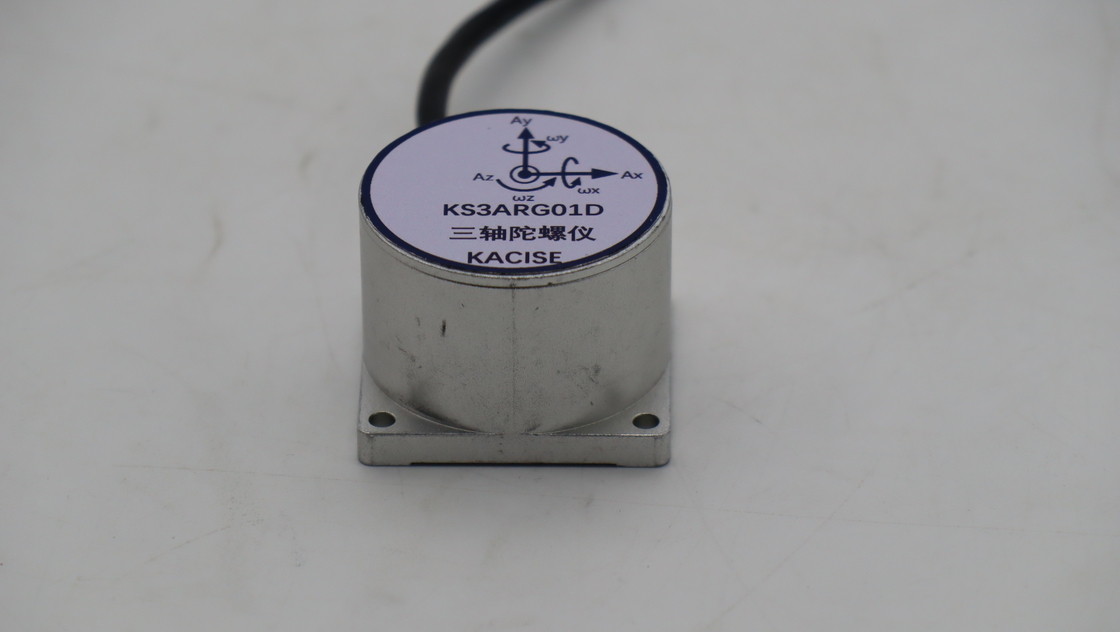

KS3ARG-01D is a versatile three-axis digital gyro with high performance, small size and high overload resistance, which can be used for accurate navigation, control and dynamic measurement of weapons. This series of products adopts highly stable and highly reliable MEMS inertial devices, which can accurately measure the angular velocity information of the moving carrier in harsh environments.
KS3ARG-01D has the characteristics of wide operating temperature range, wide bandwidth, small size, fast start and high precision. It can be widely used in weapon precision guidance and control, engineering equipment control, platform stabilization, pipeline robot, underwater vehicle and other systems.
Features:
● High stability
● High precision
● Analog and digital outputs are optional
● Wide range
● Fast start
Technical Parameters:
| Performance parameter |
KS3ARG-01D |
| range(°/s) |
±300(options) |
| Bias stability(deg/h,allan deviation) |
≤12 |
| Bias repeatability(deg/s) |
≤0.15 |
| Nonlinearity(%F.R) |
≤0.1 |
| Resolution(deg/s) |
≤0.05 |
| Bandwidth(Hz) |
≥80 |
| Cross coupling(%) |
≤1 |
| Starting time(s) |
≤1 |
| Interface characteristic |
Power supply(V) |
5V±5% |
| Electrical interface |
RS422 |
| Data update rate (optional)) |
400(Hz@460800) |
| Operating environment |
Operating temperature(°C) |
-40~+85 |
| Tolerated acceleration(g) |
10000(0.1ms) |
|
Physical property
|
Size(mm) |
Φ39.5×28.5 |
| Weight(g) |
≤100 |
Dimension figure
