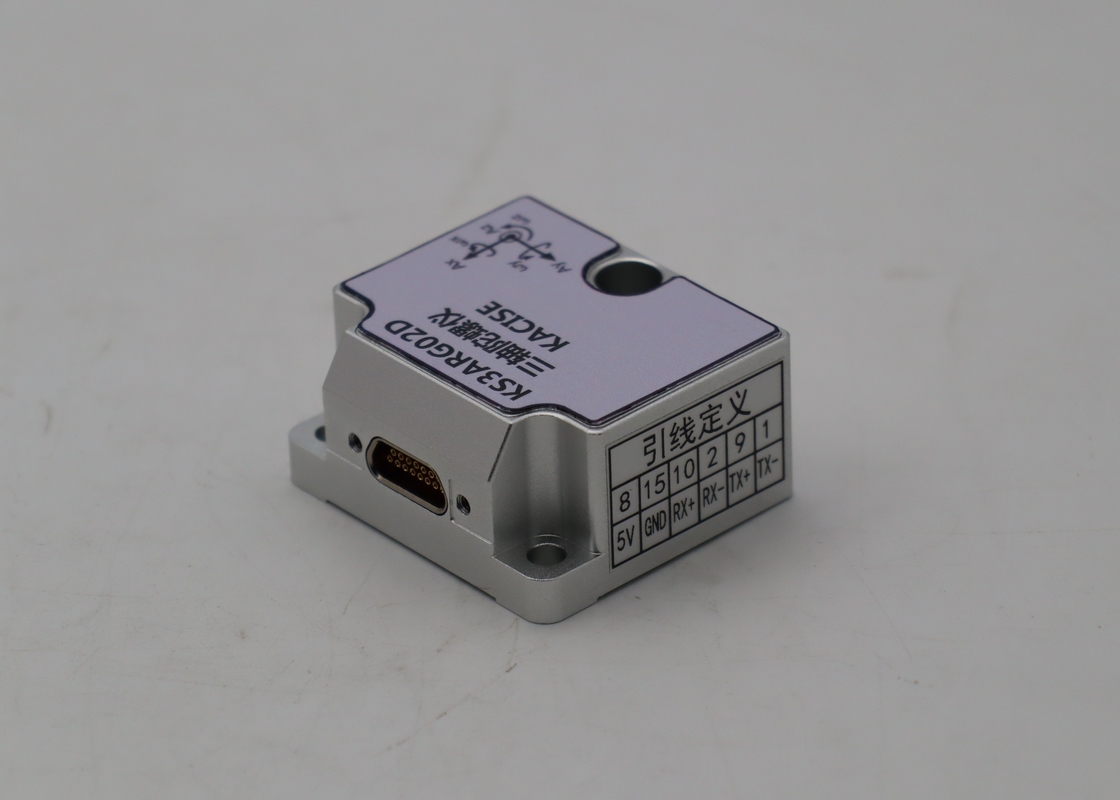

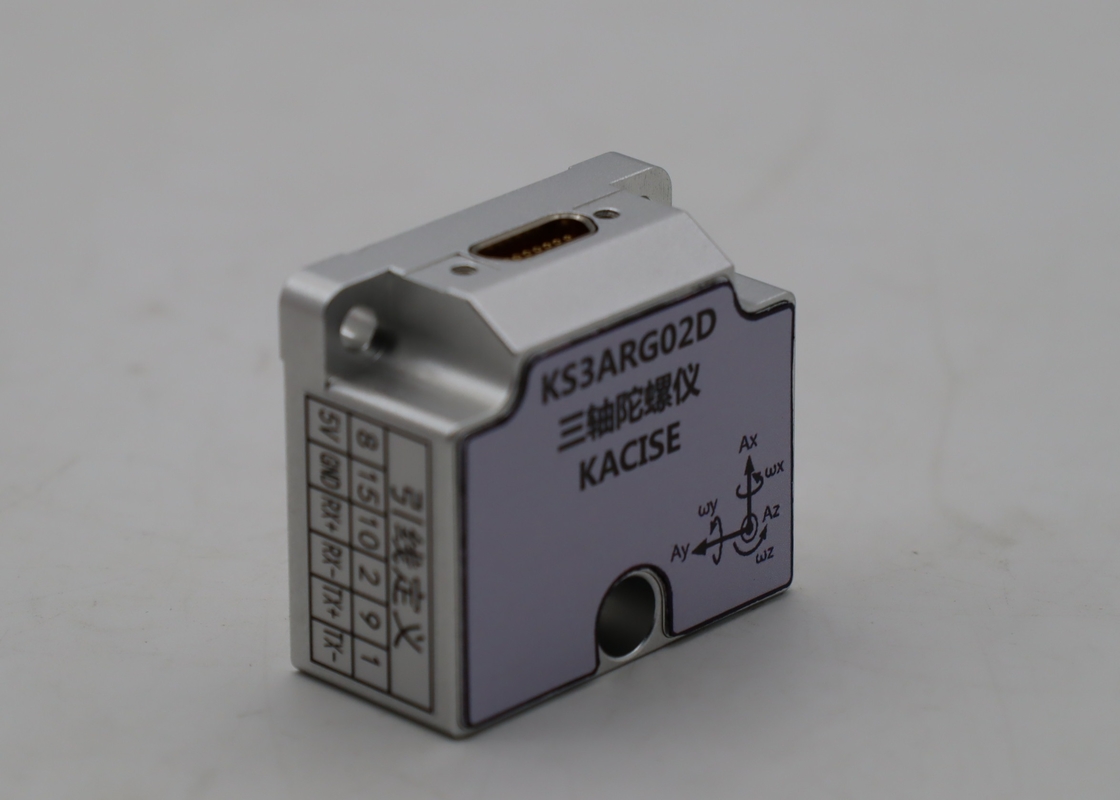

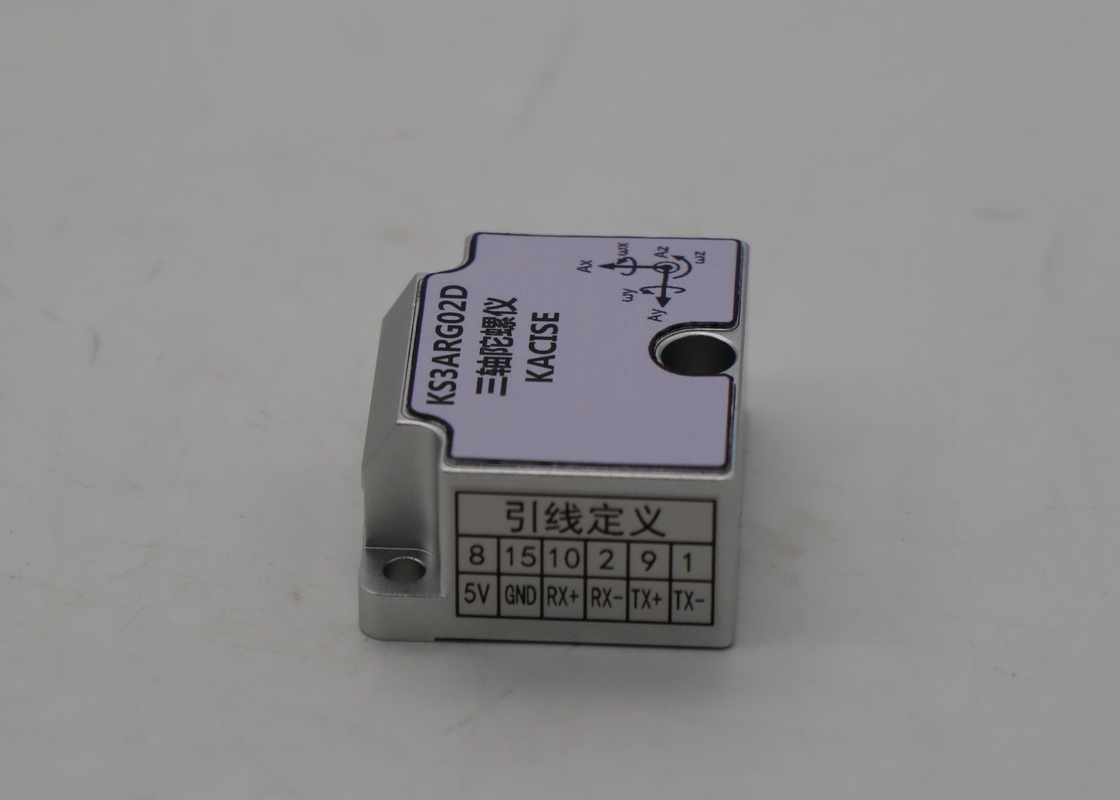

Product Description:
The KS3ARG-02D series stands as a state-of-the-art solid-state angular rate sensor (gyro) designed for precise angular rate measurement. Leveraging micromechanoelectronic system (MEMS) technology chips produced through bipolar metal oxide semiconductor (BIMOS) technology and incorporating a spherical grid arrangement of current carrier welding technology, this sensor guarantees high reliability and rugged packaging. Equipped with a Self-Test function for in-machine detection (BIT), as well as zero bias calibration, temperature drift compensation, wide measurement range, wide bandwidth, non-linear correction, and other functionalities, it excels in a wide operating temperature range, compact size, light weight, and impressive resistance to impact acceleration.
Positioned as a pivotal inertial measurement component, this product offers extensive applicability in a range of technical pursuits. Its utilization extends to intelligent automotive systems, geological exploration ventures, robotic applications, missile guidance and control systems, aircraft stability control mechanisms, strapdown inertial navigation solutions, antenna stabilization tasks, cameras, and various other technical domains.
Features:
- Small size
- Light weight
- Wide bandwidth
- Wide measurement range
- Temperature drift compensation
- Bias calibration
- High impact acceleration resistance
Technical Parameters:
| Performance parameter |
KS3ARG-02D |
| gyro |
range
(deg/s)
|
±500(triaxial) |
| Zero-bias(deg/s) |
≤±0.1(In 500°/s) |
| Zero-bias stability(deg/h) |
≤0.5allan deviation |
| Zero-bias repeatability(deg/s) |
≤0.05 |
| nonlinearity(%FR) |
≤0.05 |
| Random walk(°/√h) |
0.15 |
| Mean time between failures(Kh MTBF) |
10 |
| Interface characteristic |
power(V) |
DC5 |
| power dissipation(W @5V DC) |
≤1 |
| electrical interface |
RS422 |
| data updating rate(can set) |
2000(Hz@460800) |
| operating environment |
operating temperature(°C) |
-40~+80 |
| storage temperature(°C) |
-55~+85 |
| Vibration(g @ 20~2000 Hz) |
6.06 |
| Shock(g , 0.1 ms, 1/2 Sine) |
5000 |
| physical property |
Size(mm) |
45×39×20 |
| Weight(g) |
≤60 |
Dimension figure
