Product Description:

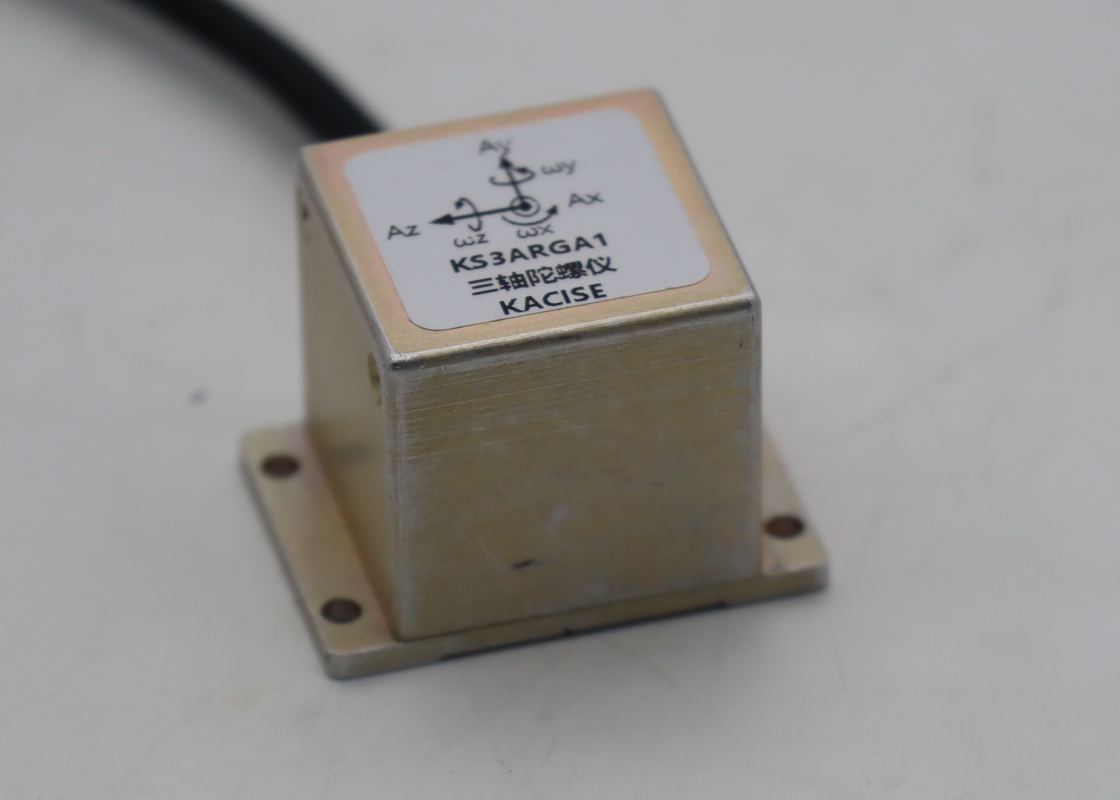

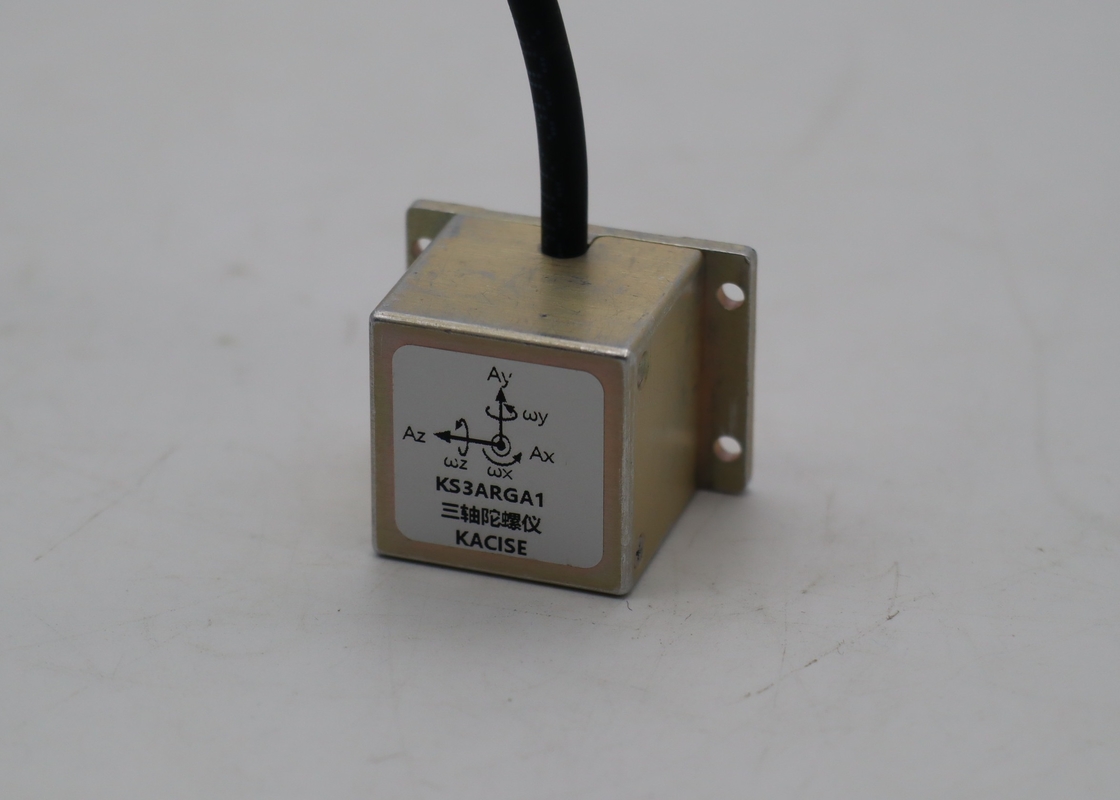

Kacise introduces the KS3ARG-A1 series, a cutting-edge three-axis universal angular rate gyro designed for precise three-axis angular rate measurement. Employing MEMS technology chips for each axis, it ensures superior performance, cost-effectiveness, high reliability, and robust packaging. Featuring a Self-Test function, the product also offers attributes such as low power consumption, a wide operating temperature range, broad bandwidth, compact size, fast startup, and DC input-DC output capabilities.
This technology is suitable for widespread deployment in a multitude of fields, encompassing automotive electronics, aircraft guidance and control, attitude reference systems, platform stabilization, robotics, antenna stabilization, cameras, digital camera gyros, and various other systems.
Features:
- fast start
- small size
- wide bandwidth
- wide operating temperature range
- low power consumption
- DC input DC output
Technical Parameters:
| Parameter |
ωx |
ωy |
ωz |
| Range(°/s) |
±250 |
±250 |
±250 |
| Offset voltage(V) |
2.5±0.05 |
2.5±0.05 |
2.5±0.05 |
| Scaling factor(mv/°/s) |
8±0.5 |
8±0.5 |
8±0.5 |
| Output voltage(V) |
0.5-4.5 |
0.5-4.5 |
0．5-4.5 |
| Nonlinearity(%FR) |
≤0.05 |
≤0.05 |
≤0.05 |
| Resolution/Threshold(°/s) |
≤0.1 |
≤0.1 |
≤0.1 |
| Cross coupling(%) |
≤2 |
≤2 |
≤2 |
| Output noise(°/s√Hz) |
<0.02 |
<0.02 |
<0.02 |
| run-up time(ms) |
≤20 |
≤20 |
≤20 |
| Bandwidth(Hz)can customize |
80 |
80 |
80 |
| G-value sensitivity(°/s/g) |
<0.02 |
| Mean time between failures(MTBF) |
100000hour |
| Oerating Environment |
| Operating temperature range(°C) |
-45～+80 |
| Storage temperature(°C) |
-65～+125 |
| Tolerated acceleration(g) |
20000(0.1ms) |
| Size(mm) |
34×25×24 |
| Weight(g) |
≤40 |
Dimension figure
