Product Description:
Introduction

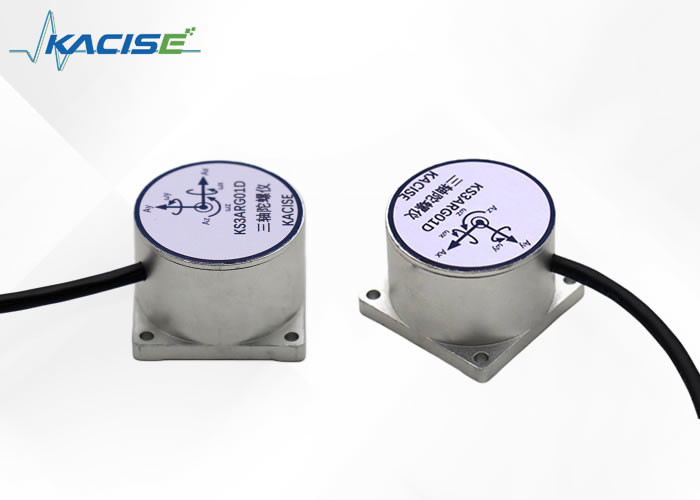

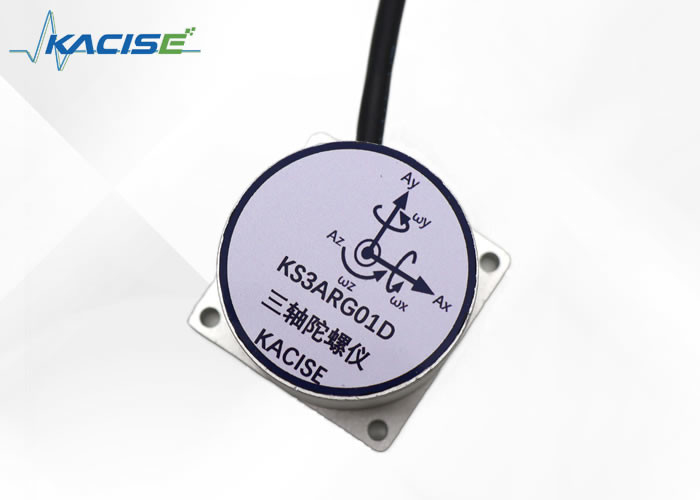

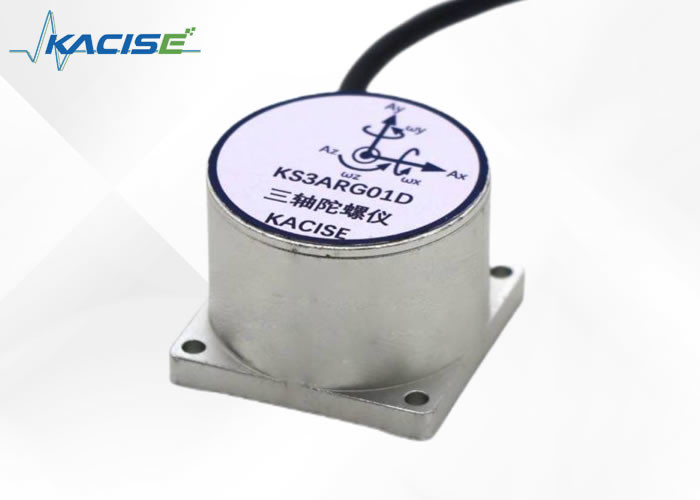

The KS3ARG01D represents a state-of-the-art three-axis digital gyro that stands out for its high performance, compact form factor, and exceptional resistance to overload. This sophisticated equipment is an ideal solution for precise navigation, control systems, and dynamic evaluation in weaponry applications.
At the core of our product line, the KS3ARG01D utilizes highly stable and dependable MEMS inertial sensors. These advanced sensors are designed to capture and relay accurate angular velocity data of a moving vehicle, even when operating under severe environmental conditions.
Features:
● High stability
● High precision
● Analog and digital outputs are optional
● Wide range
● Fast start
Technical Parameters:
| Performance parameter |
KS3ARG-01D |
| range(°/s) |
±300(options) |
| Bias stability(deg/h,allan deviation) |
≤12 |
| Bias repeatability(deg/s) |
≤0.15 |
| Nonlinearity(%F.R) |
≤0.1 |
| Resolution(deg/s) |
≤0.05 |
| Bandwidth(Hz) |
≥80 |
| Cross coupling(%) |
≤1 |
| Starting time(s) |
≤1 |
| Interface characteristic |
Power supply(V) |
5V±5% |
| Electrical interface |
RS422 |
| Data update rate (optional) |
400(Hz@460800) |
| Operating environment |
Operating temperature(°C) |
-40~+85 |
| Tolerated acceleration(g) |
10000(0.1ms) |
|
Physical property
|
Size(mm) |
Φ39.5×28.5 |
| Weight(g) |
≤100 |
Dimensions
Applications:
KS3ARG01D: A Device Boasting Versatility and Precision
The KS3ARG01D is renowned for its exceptional operation across a wide temperature range , tailored to deliver unwavering performance under various environmental scenarios. Its wide bandwidth capacity ensures that a multitude of signals are processed with utmost efficiency.
Despite its extensive features, the device remains compact in size , promoting ease of integration in space-constrained applications. A notable feature is its rapid startup , making it a beacon of efficiency and system readiness. The high precision capability denotes the device's commitment to delivering accurate results for critical operations.
Applications of the KS3ARG01D
The diverse functionality of the KS3ARG01D renders it indispensable in various sectors. Its unmatched precision is crucial in the field of weapon precision guidance and control , enhancing the integrity of defense systems. It also plays a pivotal role in engineering equipment control , ensuring optimal machine performance.
For tasks requiring impeccable stability, such as platform stabilization , the KS3ARG01D proves itself as a reliable ally. Furthermore, its utility in managing pipeline robots and underwater vehicle systems underscores its adaptability and resilience, particularly in challenging underwater environments.
Support and Services:
Thank you for choosing our Gyroscope Sensor. Our dedicated technical support team is committed to providing you with the highest level of service and support. Below you will find the range of services and support options available to help you make the most of your product.
Product Documentation: We offer comprehensive user manuals and product specifications online. These documents provide detailed information on installation, operation, and troubleshooting to help you quickly understand the features and functions of your gyroscope sensor.
Online Resources: Access our suite of online tools and resources 24/7, including FAQs, troubleshooting guides, and instructional videos. These resources are designed to help you solve common issues and improve your product knowledge.
Packing and Shipping:
The Gyroscope Sensor is meticulously packaged in a static-resistant bag to ensure safe delivery and protection against electrostatic discharge. The sensor is then cushioned with high-density foam, securing it in place within a sturdy, branded cardboard box specifically designed to withstand the rigors of transit.
Each box is sealed with tamper-evident tape and labeled with handling instructions to ensure the product is transported upright at all times. The package is accompanied by a detailed instruction manual and any necessary accessories for immediate use upon arrival.
For shipping, the boxed sensor is placed inside a larger, durable shipping container, surrounded by additional impact-absorbing materials to minimize movement and potential damage from external forces. The container is then sealed and dispatched through our trusted courier services, which provide real-time tracking and delivery confirmation for your peace of mind.
We are committed to sustainable practices, so our packaging materials are recyclable, supporting our dedication to reducing the environmental impact. Please refer to local guidelines for recycling instructions.
