Product Description:

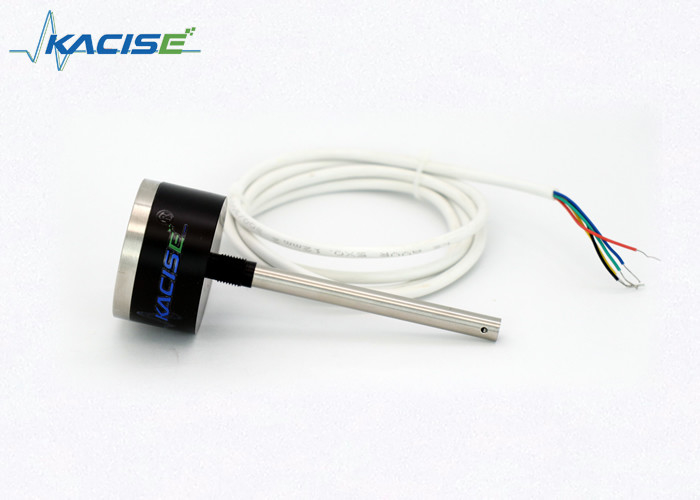

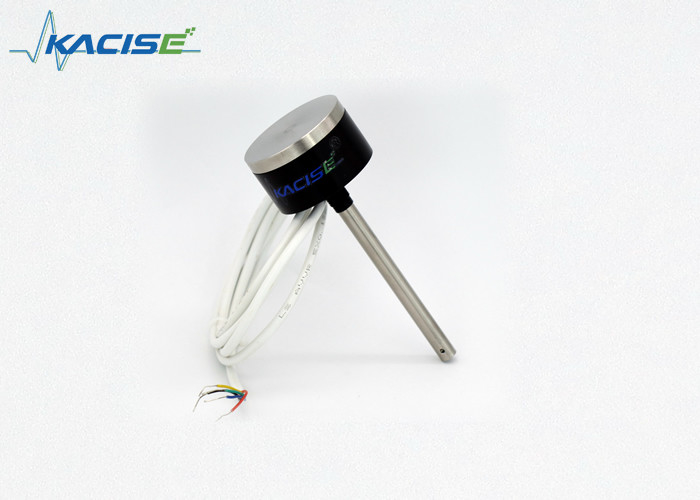

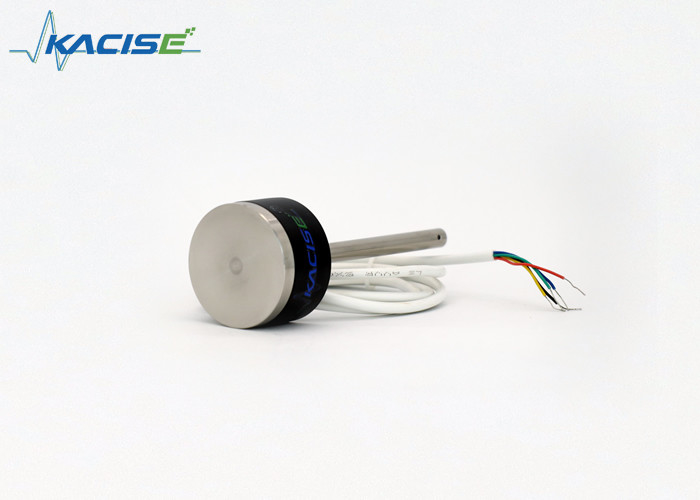

The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.
The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.
Features:
● The MODBUS RTU protocol is easy to integrate.
● Multiple output types to choose from.
● Customizable output.
● Customizable protection level.
● Corrosion resistance process can be customized.
● No moving parts, reliable and stable work.
● Can measure any liquid medium.
● Can measure the level of fluctuating liquid.
Technical Specifications
| Range |
5cm-20cm |
| Accuracy |
±2% |
| Capacitance measurement range |
10PF~500PF |
| Protection level |
IP65; IP68(Can customize) |
| Pressure range |
Can customize(Default normal pressure) |
| Probe temperature resistance |
-200°C~200°C |
| Ambient temperature |
-40°C~85°C |
| Output |
RS485; 4-20mA; 0-10V; Switch(Can customize) |
| Power supply voltage |
5~36V DC; 12~36V DC(analog output) |
| Level sensor material |
304 Stainless Steel; PVC; PTFE |
| Long-term stability |
<0.1%FS/Year |
| Temperature drift |
<0.01%FS/°C |
Dimension
D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mm
Voltage output wiring:
Red: VCC Black: GND Yellow: 0-5V Blue: RS485A Green: RS485B
Current output wiring:
Red: Loop+ Loop: Loop- Yellow: Null Blue: RS485A Green: RS485B
485 Output cable wiring:
Red: VCC Loop: GND Yellow: Null Blue: RS485A Green: RS485B
For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.
Applications:
With a temperature drift of less than 0.01%FS/°C, this fluid level meter offers accurate readings even in extreme temperatures. The power supply voltage ranges from 5-36V DC and 12-36V DC (analog output), providing flexibility for different power sources.
The KSLV606 model boasts a capacitance measurement range of 10PF to 500PF, making it ideal for capacitive liquid level detection, capacitive fuel sensor, and capacitive level switch. The long-term stability is less than 0.1%FS/year, ensuring reliable and consistent readings over an extended period of time.
Whether you need to measure the level of fuel, oil, water, or other liquids, the Kacise KSLV606 Fluid Level Meter is the perfect product for you. It can be used in various scenarios, including automobiles, boats, tanks, industrial equipment, and more.
Get your hands on the Kacise KSLV606 Fluid Level Meter today and experience accurate and reliable liquid level detection like never before.
Support and Services:
Level meter products are equipped with a range of technical support and services to ensure their normal operation and service life. Our team of experts can assist with product installation, operation and maintenance.
We also offer troubleshooting services to help identify and resolve any issues that may arise.
Packing and Shipping:
Product Packaging:
- 1 Fluid Level Meter
- User Manual
- Calibration Certificate
Shipping Information:
Shipping Method: Standard Shipping
